FATH

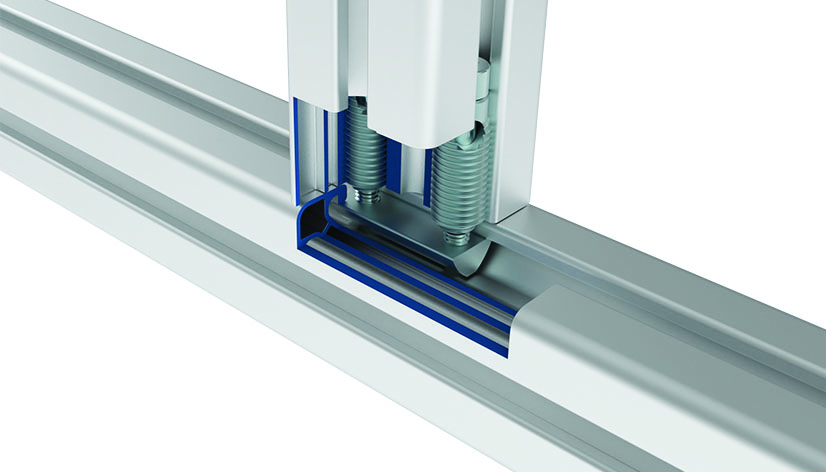

Roll-in Double T-slot Nut for Automatic Connector I, Slot 8
Part #: 096006D36S01 · 4 variants
Roll-in double T-slot nut
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 100 pieces
- Weight
- 16 g
- ECLASS
- 23360290
- Category
- Automatic Connectors
Versions
Select a version — the description and files below follow your selection.
| Part # | Profile | A (mm) | L (mm) | Fig. | M | Add 1 pc to enquiry |
|---|---|---|---|---|---|---|
| 096006D36S01✓ Selected | I | 26.4 | 36.0 | ① | M6 | |
| 096006D76S01 | I | 66.4 | 76.0 | ① | M6 | |
| 096026D36 | I | 26.4 | 36.0 | ② | M6 | |
| 096026D76 | I | 66.4 | 76.0 | ② | M6 |
Description 096006D36S01
- Description
Roll-in double T-slot nut
- Material
Double T-slot nut: Steel
Ball: Stainless steel
Spring: Spring steel
- Specials
Different lengths with multiple threads in different sizes available on request
- Surface
Double T-slot nut: Zinc-plated
Ball: Plain
Spring: Plain
Properties
| Profile Type | Profile Type I |
|---|---|
| Pack Quantity | 100 pieces |
| Model | Slot 8, steel |

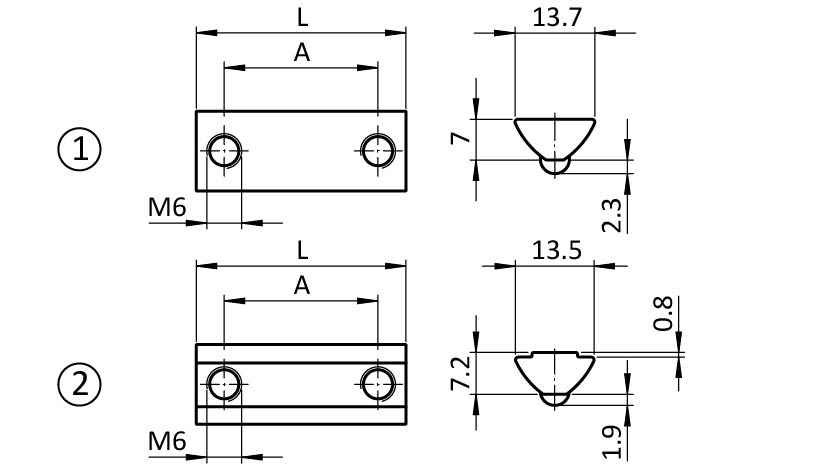

Drawing
From the FATH catalogue (EC-EN, p. 514)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
