FATH
Roll-in Slot Nut 13.0 x 13.0 x 6.0 mm with Spring Leaf
Part #: 096P0131306M4F · 4 variants
Roll-in slot nut with spring leaf
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 100 pieces
- Weight
- 6.6 g
- ECLASS
- 23360290
- Category
- Roll-in Slot Nuts
Versions
Select a version — the description and files below follow your selection.
| Part # | M | Add 1 pc to enquiry |
|---|---|---|
| 096P0131306M4F✓ Selected | M4 | |
| 096P0131306M5F | M5 | |
| 096P0131306M6F | M6 | |
| 096P0131306M8F | M8 |
Description 096P0131306M4F
- Description
Roll-in slot nut with spring leaf
- Material
Steel
- Surface
Zinc plated
Properties
| Pack Quantity | 100 pieces |
|---|---|
| Model | Slot 8, with Spring Leaf, Steel |

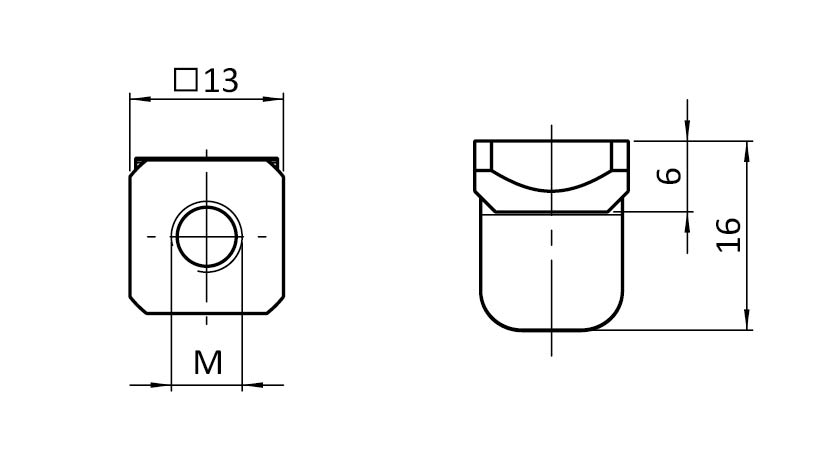

Drawing
From the FATH catalogue (EC-EN, p. 350)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
