FATH

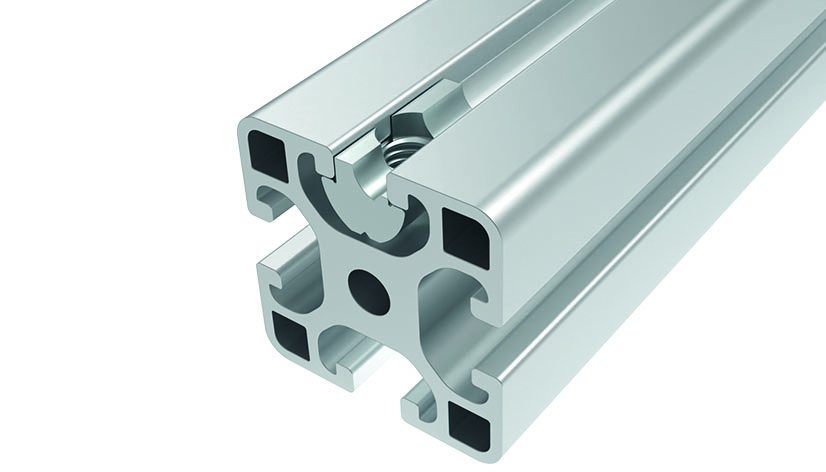

Roll-in T-slot Nut 13.0 x 10.0 mm with Spring Loaded Ball
Part #: 096095 · 3 variants
Self-aligning roll-in T-slot nutwith spring loaded ball
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 100 pieces
- Weight
- 4.5 g
- ECLASS
- 23360290
- Category
- Roll-in, Slot 8
Versions
Select a version — the description and files below follow your selection.
Description 096095
- Description
Self-aligning roll-in T-slot nutwith spring loaded ball
- Material
T-slot nut: Aluminum
Ball: Stainless steel
Spring: Spring steel
- Specials
ESD electrostatical discharging, different lengths with multiple threads in different sizes available on request
- Surface
T-slot nut: Plain
Ball: Plain
Spring: Plain
Properties
| Pack Quantity | 100 pieces |
|---|---|
| Model | Slot 8, self-aligning with spring loaded ball, aluminum / stainless steel |

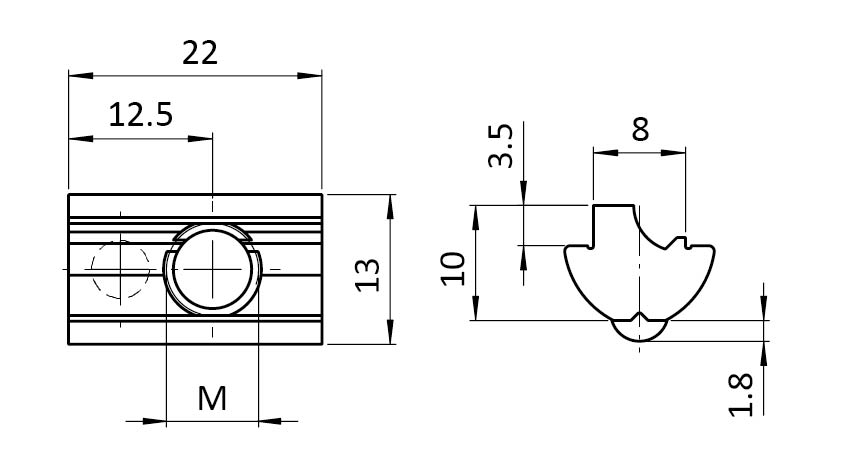

Drawing
From the FATH catalogue (EC-EN, p. 294)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
