FATH

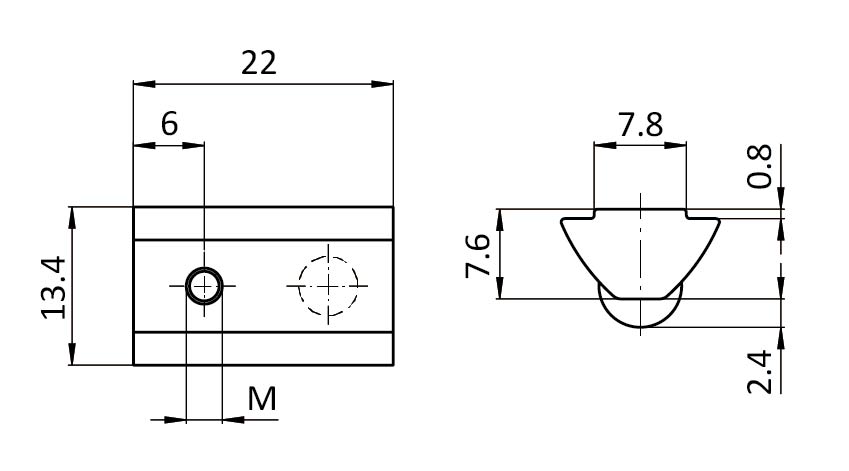

Roll-in T-slot Nut 13.4 x 7.6 mm with Large Spring Loaded Ball
Part #: 096333S07 · 5 variants

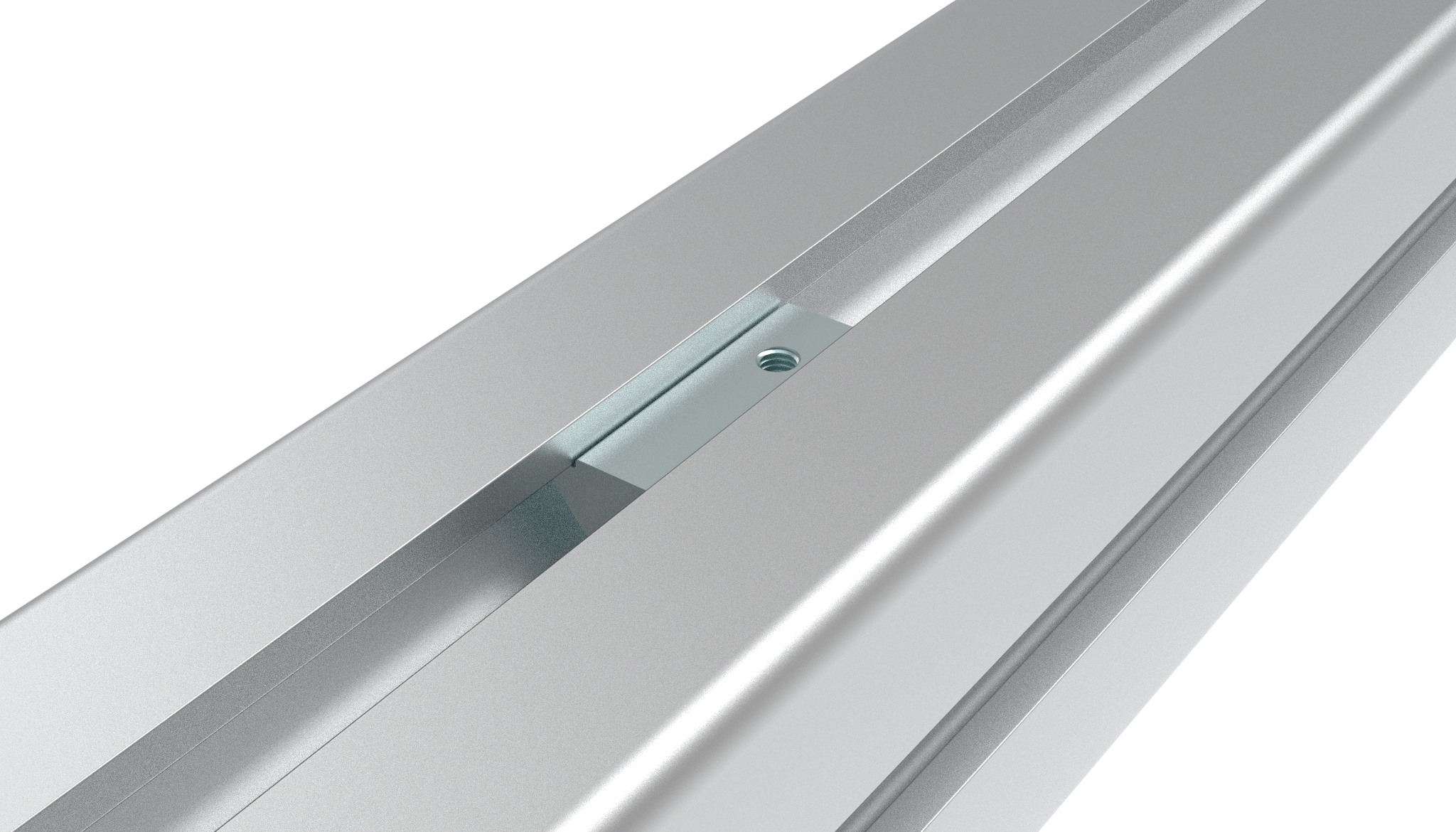

Self-aligning roll-in T-slot nut with spring loaded ball
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 100 pieces
- Weight
- 11.5 g
- ECLASS
- 23360290
- Category
- Roll-in, Slot 8
Versions
Select a version — the description and files below follow your selection.
Description 096333S07
- Description
Self-aligning roll-in T-slot nut with spring loaded ball
- Material
T-slot nut: Steel
Ball: Stainless steel
Spring: Spring steel
- Specials
ESD electrostatical discharging, different lengths with multiple threads in different sizes available on request
- Surface
T-slot nut: Zinc-plated
Ball: Plain
Spring: Plain
Properties
| Pack Quantity | 100 pieces |
|---|---|
| Model | Slot 8, self-aligning with spring loaded ball, steel |
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
