FATH

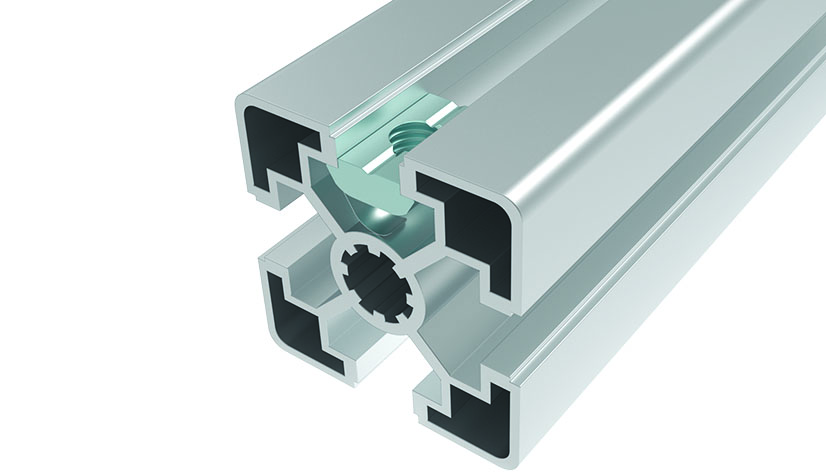

Roll-in T-slot Nut 14.0 x 5.2 mm with Spring Leaf
Part #: 096164F · 7 variants
Self-aligning roll-in T-slot nut with spring leaf, ESD electrostatical discharging
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 100 pieces
- Weight
- 7.7 g
- ECLASS
- 23360290
- Category
- Roll-in, Slot 10
Versions
Select a version — the description and files below follow your selection.
| Part # | Profile | M | Add 1 pc to enquiry |
|---|---|---|---|
| 096164F✓ Selected | B | M4 | |
| 096165F | B | M5 | |
| 096166F | B | M6 | |
| 096168F | B | M8 | |
| 09616U1/4F | B | 1/4-20 UNC | |
| 09616U10-32F | B | 10-32 UNF | |
| 09616U5/16F | B | 5/16-18 UNC |
Description 096164F
- Description
Self-aligning roll-in T-slot nut with spring leaf,
ESD electrostatical discharging
- Material
T-slot nut: Steel
Spring leaf: Spring steel
- Specials
Different lengths with multiple threads in different sizes available on request
- Surface
T-slot nut: Zinc-plated
Spring leaf: Plain
Properties
| Profile Type | Profile Type B |
|---|---|
| Pack Quantity | 100 pieces |
| Model | Slot 10, Self-aligning with Spring Leaf, Steel |

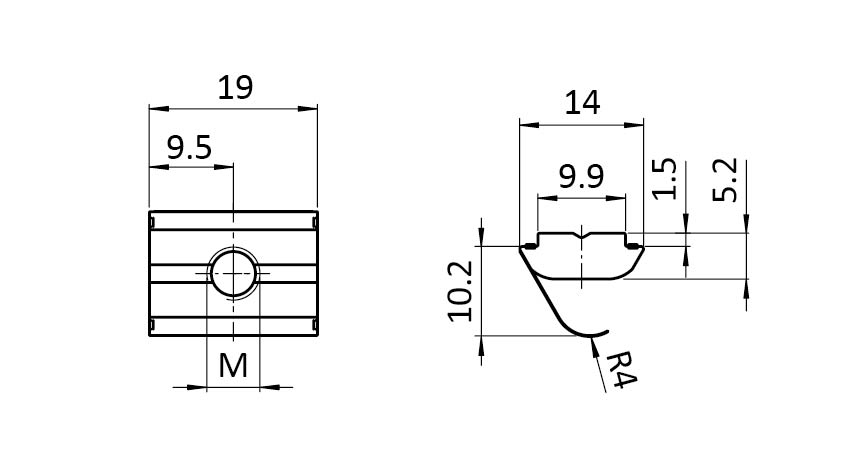

Drawing
From the FATH catalogue (EC-EN, p. 309)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
