FATH
Roll-in T-slot Nut 14.5 x 6.2 mm with Spring Loaded Ball
Part #: 096124 · 8 variants

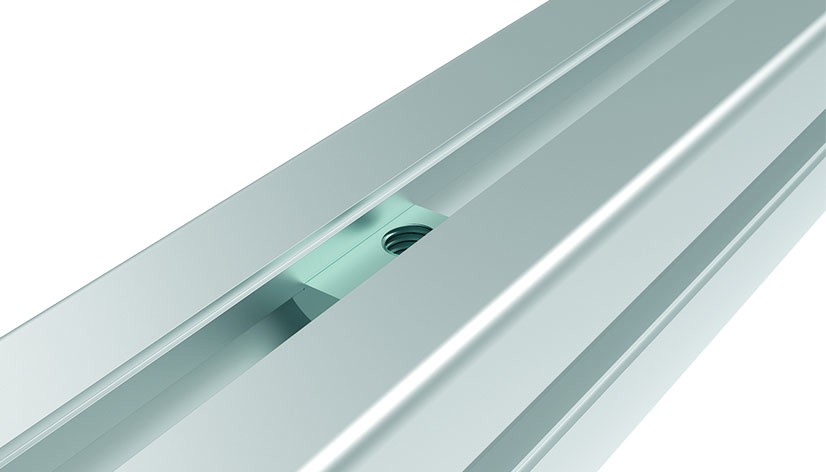

Self-aligning roll-in T-slot nut with spring loaded ball
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 100 pieces
- Weight
- 11.8 g
- ECLASS
- 23360290
- Category
- Roll-in, Slot 10
Versions
Select a version — the description and files below follow your selection.
Description 096124
- Description
Self-aligning roll-in T-slot nut with spring loaded ball
- Material
T-slot nut: Steel / stainless steel
Ball: Stainless steel
Spring: Spring steel
- Specials
ESD electrostatical discharging, different lengths with multiple threads in different sizes available on request
- Surface
T-slot nut: Zinc-plated / plain
Spring leaf: Plain
Properties
| Pack Quantity | 100 pieces |
|---|---|
| Model | Slot 10, self-aligning with spring loaded ball, Steel / stainless steel |

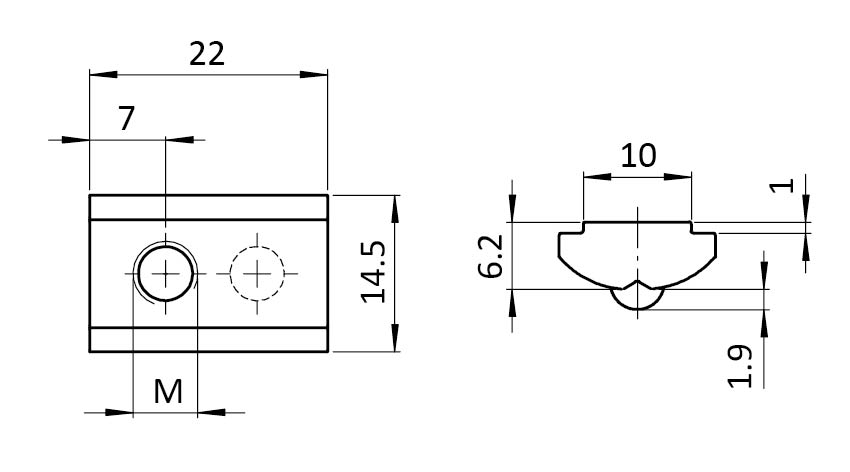

Drawing
From the FATH catalogue (EC-EN, p. 311)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
