FATH

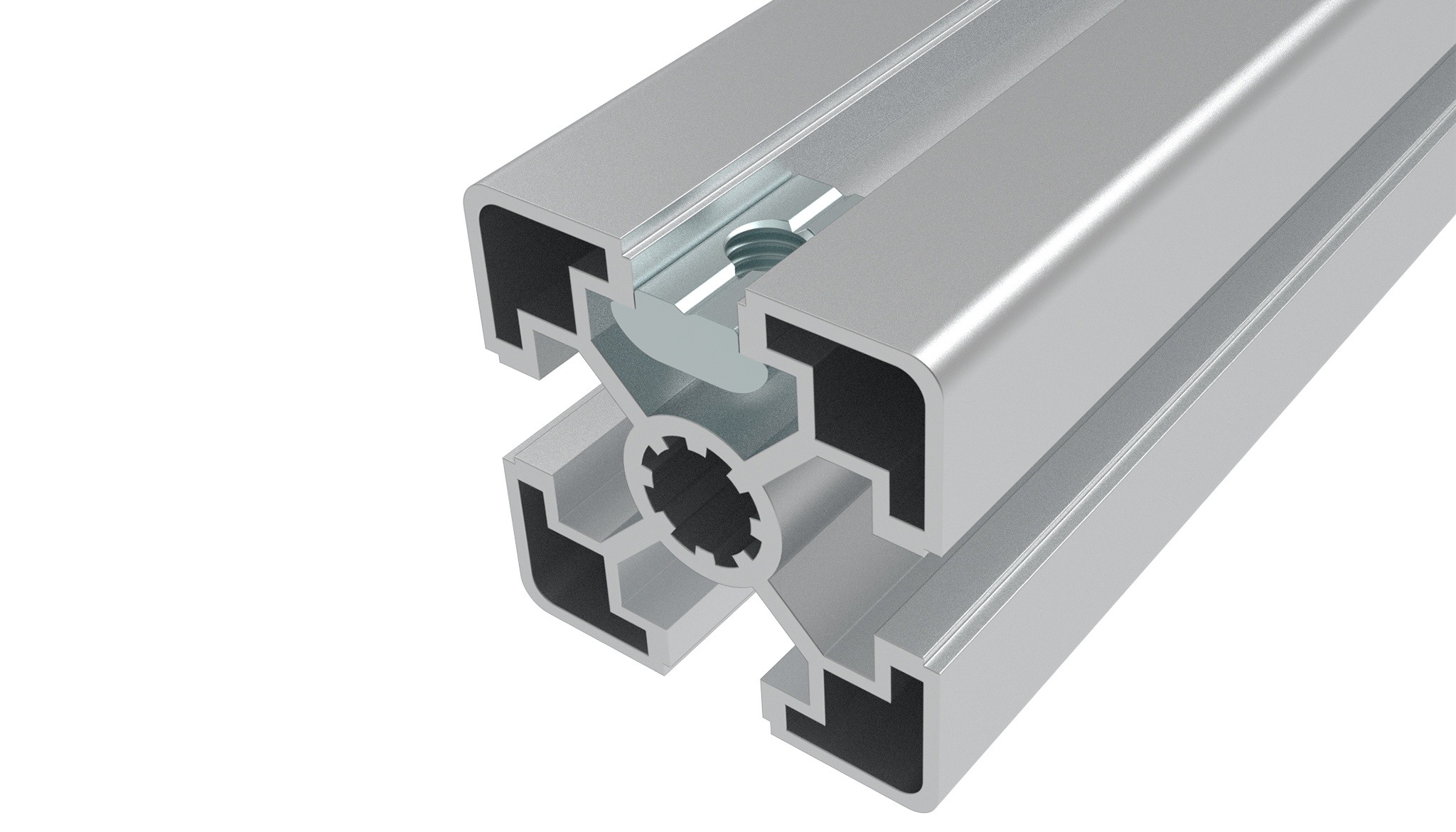

Roll-in T-slot Nut 15.0 x 6.0 mm
Part #: 096083 · 4 variants
Self-aligning roll-in T-slot nut
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 100 pieces
- Weight
- 13 g
- ECLASS
- 23360290
- Category
- Roll-in, Slot 10
Versions
Select a version — the description and files below follow your selection.
Description 096083
- Description
Self-aligning roll-in T-slot nut
- Material
Steel
- Specials
ESD electrostatical discharging, different lengths with multiple threads in different sizes available on request
- Surface
Zinc plated
- Tip
Compatible Spring see 096FN08
Properties
| Profile Type | Profile Type B |
|---|---|
| Pack Quantity | 100 pieces |
| Model | Slot 10, self-aligning, steel |

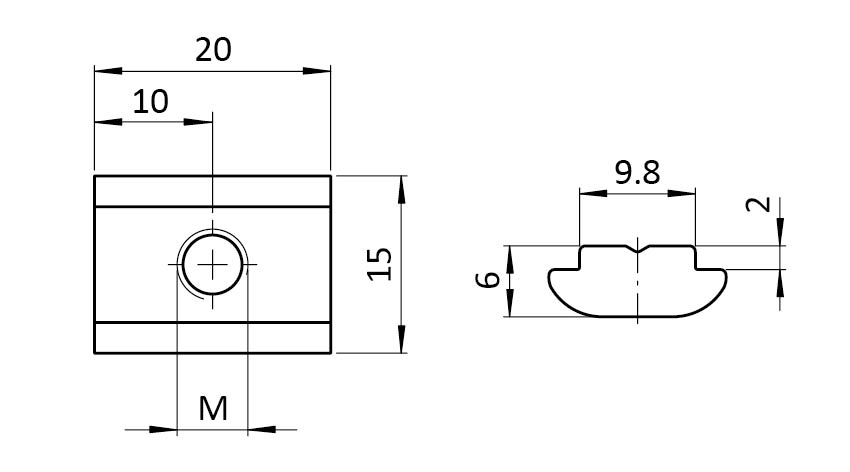

Drawing
From the FATH catalogue (EC-EN, p. 313)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
