FATH

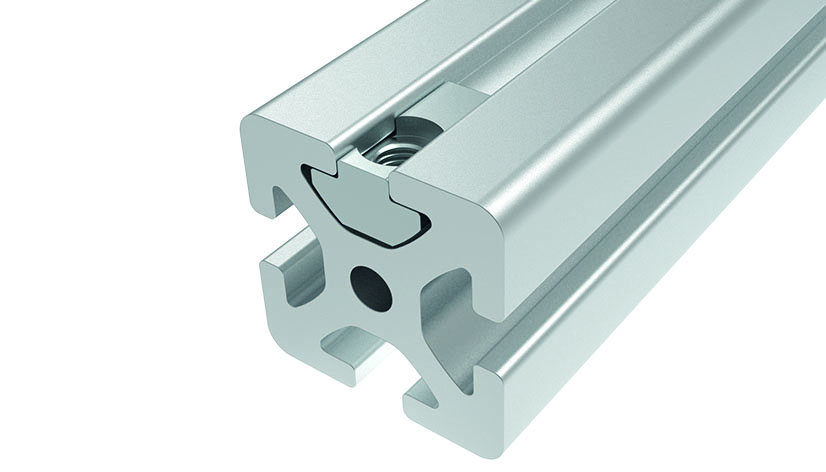

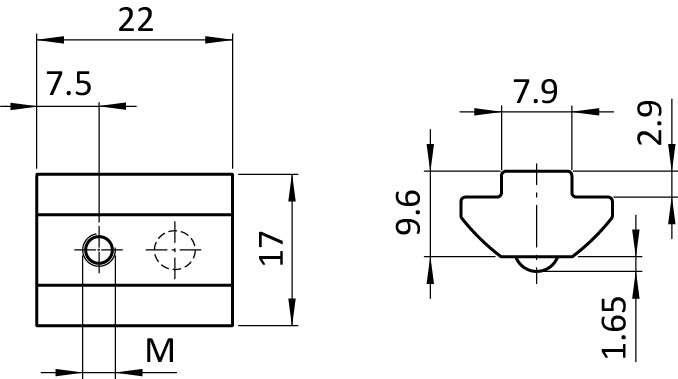

Roll-in T-slot Nut 17.0 x 9.6 mm with Spring Loaded Ball

Part #: 096064 · 10 variants

Self-aligning roll-in T-slot nut with spring loaded ball Version with color code for visual identification of thread size

Quantity

Price, availability and delivery time — we send one quote for all products.

Question about this product?

Technical questions, custom versions or quantities — write or call us.

Versions

Select a version — the description and files below follow your selection.

Part #	Material	Profile	Fig.	M	Color Code
096064✓ Selected	Steel	I	①	M4	-
096064CB	Steel	I	②	M4	Blue ≈ RAL 5005
096065	Steel	I	①	M5	-
096065CB	Steel	I	③	M5	Yellow ≈ RAL 1018
096066	Steel	I	①	M6	-
096066CB	Steel	I	④	M6	Red ≈ RAL 3020
096066E	Stainless steel	I	①	M6	-
096068	Steel	I	①	M8	-
096068CB	Steel	I	⑤	M8	Black ≈ RAL 9005
096068E	Stainless steel	I	①	M8	-

Color

Ball color code version: Yellow, red, blue, black

Description

Self-aligning roll-in T-slot nut with spring loaded ball

Version with color code for visual identification of thread size

Material

T-slot nut: Steel / stainless steel

Ball standard version: Stainless steel

Ball color code version: Plastic POM

Spring: Spring steel

Specials

ESD electrostatical discharging, different lengths with multiple threads in different sizes available on request

Surface

T-slot nut: Zinc-plated / plain

Ball standard version: Plain

Spring: Plain

Profile Type	Profile Type B, Profile Type I
Pack Quantity	100 pieces
Model	Slot 8, with spring loaded ball, steel / stainless steel

From the FATH catalogue (EC-EN, p. 305)
