FATH
Roller Mounting Blocks
Part #: 093200 · 4 variants

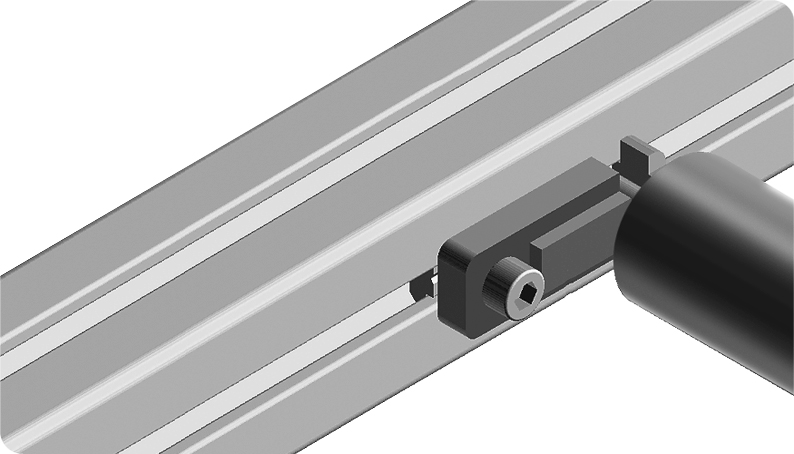

To mount track rollers on aluminum profiles; individual rollers can be replaced without dismantling the entire system; can be used for slot 8 and slot 10 by simply turning it
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 100 pieces
- Weight
- 8.2 g
- ECLASS
- 36123692
- Category
- Holders for Support Roller
Versions
Select a version — the description and files below follow your selection.
Description 093200
- Assembly Set 1
1 screw DIN 7984 - M6 x 12,
1 hammer nut M6 - slot 8
- Assembly Set 2
1 screw DIN 7984 - M6 x 16,
1 hammer nut M6 - slot 10
- Color
Roller Mounting Block: Black
- Description
To mount track rollers on aluminum profiles; individual rollers can be replaced without dismantling the entire system; can be used for slot 8 and slot 10 by simply turning it
- Material
Standard version: Plastic PA, glass fiber reinforced
ESD electrostatical discharging version: Plastic PA, carbon fiber reinforced
- Specials
Other colors on request
- Surface
Assembly set: Zinc plated
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Slot Size | Slot 8, Slot 10 |
| Application Area | Industrial Work Stations, Intralogistics |
| Pack Quantity | 100 pieces |
| Model | Plastic PA, profile 30 and up |

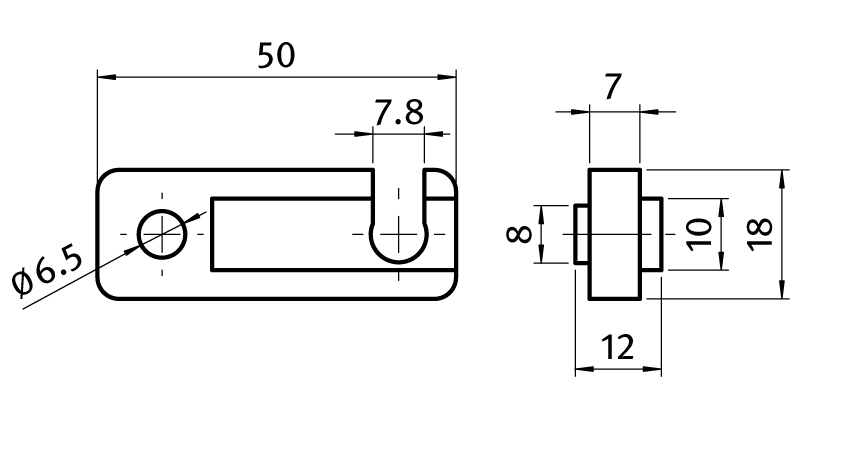

Drawing
From the FATH catalogue (EC-EN, p. 884)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
