FATH

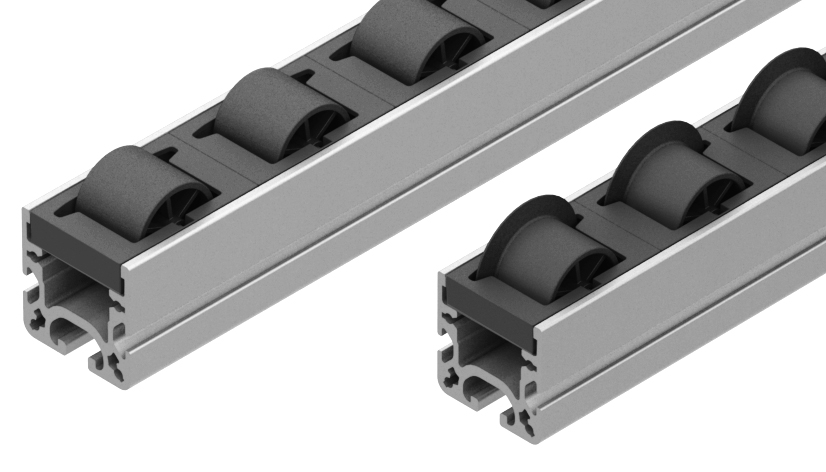

Roller Unit L50 R28
Part #: 062AER2811.50 · 12 variants
A resilient and smooth roller unit R28 for roller tracks AL, optionally withoutor with flange as lateral guiding, completely preassembled
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 19 g
- ECLASS
- 36120491
- Category
- Components for Roller Tracks AL
Versions
Select a version — the description and files below follow your selection.
| Part # | Version | Fig. | ESD | Max. Load (N) | Color of Roller | Color of Cage | Add 1 pc to enquiry |
|---|---|---|---|---|---|---|---|
| 062AER2811.50✓ Selected | Without flange | ② | - | 150 | Yellow ≈ RAL 1003 | Black | |
| 062AER2831.50 | Without flange | ② | - | 150 | Red ≈ RAL 3020 | Black | |
| 062AER2861.50 | Without flange | ② | - | 150 | Green ≈ RAL 6032 | Black | |
| 062AER2874.50 | Without flange | ② | - | 150 | Gray ≈ RAL 7042 | Gray ≈ RAL 7042 | |
| 062AER2891.50 | Without flange | ② | - | 150 | Black | Black | |
| 062AER2891ESD.50 | Without flange | ② | ESD | 125 | Black | Black | |
| 062AER28F11.50 | With flange | ① | - | 150 | Yellow ≈ RAL 1003 | Black | |
| 062AER28F31.50 | With flange | ① | - | 150 | Red ≈ RAL 3020 | Black | |
| 062AER28F61.50 | With flange | ① | - | 150 | Green ≈ RAL 6032 | Black | |
| 062AER28F74.50 | With flange | ① | - | 150 | Gray ≈ RAL 7042 | Gray ≈ RAL 7042 | |
| 062AER28F91.50 | With flange | ① | - | 150 | Black | Black | |
| 062AER28F91ESD.50 | With flange | ① | ESD | 125 | Black | Black |
Description 062AER2811.50
- Color
Roller: Black, yellow, red, green, gray
Cage: Black, gray
- Description
A resilient and smooth roller unit R28 for roller tracks AL, optionally withoutor with flange as lateral guiding, completely preassembled
- Material
Standard roller: Plastic PA, glass reinforced
Standard cage: Plastic PA, glass fiber reinforced
Electrostatical discharging roller and cage: Plastic PA, carbon fiber reinforced
Axle: Steel
- Specials
Colored rollers in gray cage, other materials, other colors on request
- Surface
Axle: Zinc plated
- Tip
Roller unit L50 R28 consisting of:
- Roller R28, see 062RR2891:
- Axle AL, see 62AXM;
- Cage L50 for rollers R28, see 062ACR2891.50;
- Compatible Brake R28 see 062RBR28E;
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Application Area | Industrial Work Stations, Intralogistics |
| Pack Quantity | 10 pieces |
| Model | For roller tracks AL |

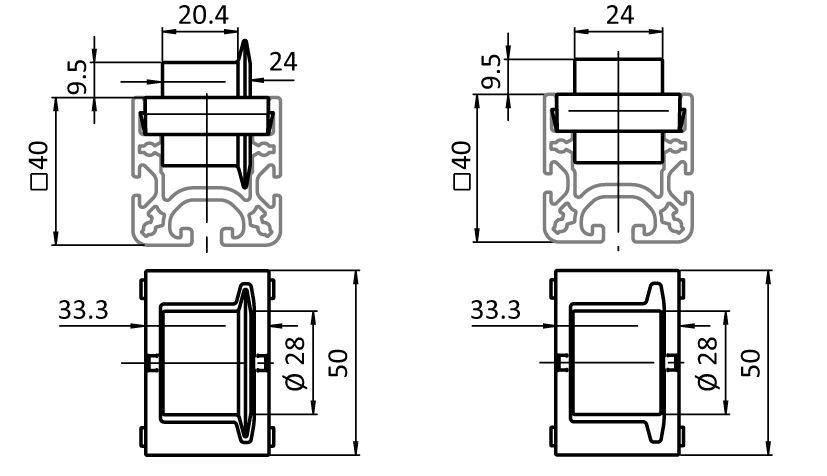

Drawing
From the FATH catalogue (EC-EN, p. 859)
