FATH
Screw Connector B, Slot 10
Part #: 092092 · 3 variants

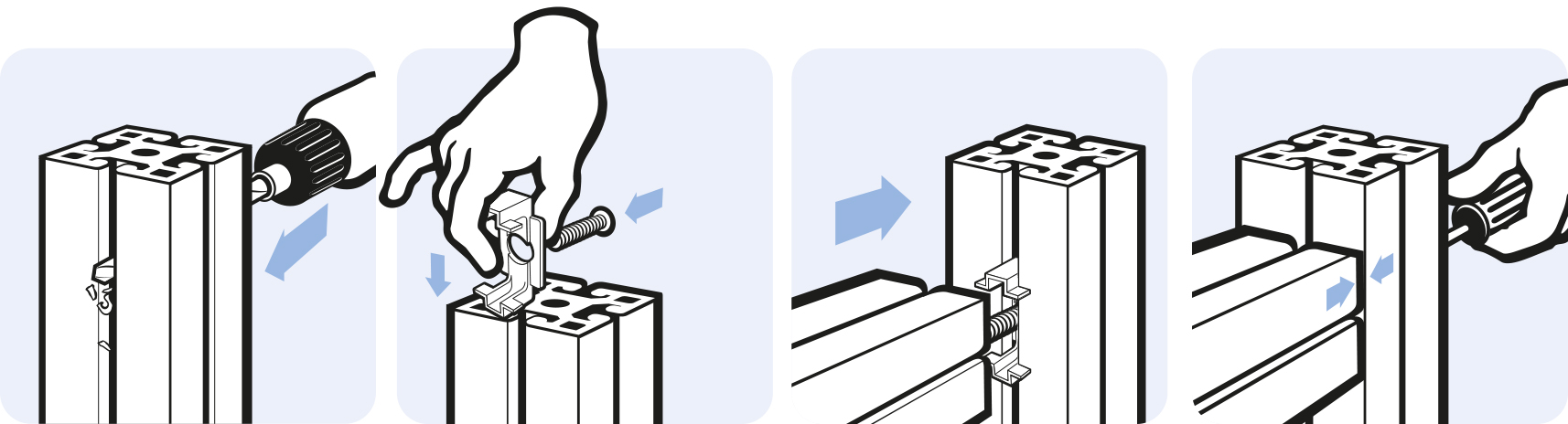

To connect two aluminum profiles
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 100 pieces
- Weight
- 16 g
- ECLASS
- 23360290
- Category
- Screw Connectors
Versions
Select a version — the description and files below follow your selection.
| Part # | D (mm) | Version | H (mm) | Profile | Slot N (mm) | Screw | A x B (mm) | Add 1 pc to enquiry |
|---|---|---|---|---|---|---|---|---|
| 092092✓ Selected | 12.0 | - | 15.8 | - | 10 | M12 x 40 | 41.6 x 20.0 | |
| 099F1045S11 | 12.0 | With hexalobular socket TX screw | 15.8 | - | 10 | M12 x 30 | 41.6 x 20.0 | |
| 099F1045S13 | 12.0 | With self forming screw | 15.8 | B | 10 | M12 x 40 | 41.6 x 20.0 |
Description 092092
- Description
To connect two aluminum profiles
- Material
Zinc die-cast
- Surface
Zinc plated
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Slot Size | Slot 10 |
| Pack Quantity | 100 pieces |
| Model | Slot 10 |

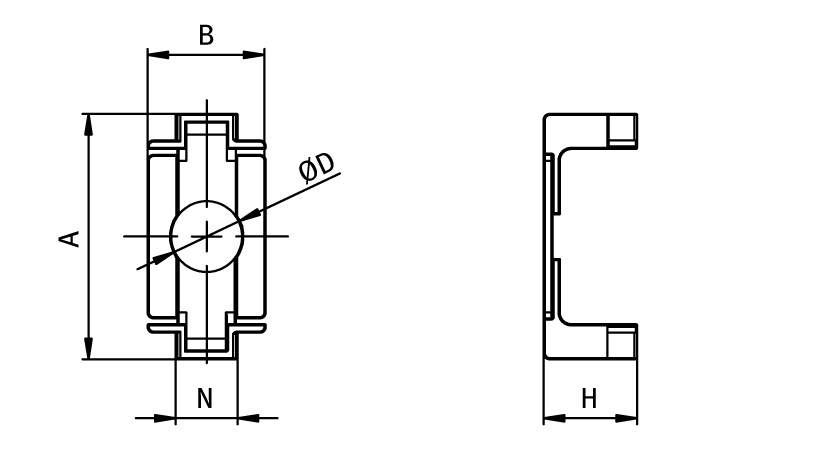

Drawing
From the FATH catalogue (EC-EN, p. 530)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
