Screw Connector I
Part #: 092038 · 10 variants

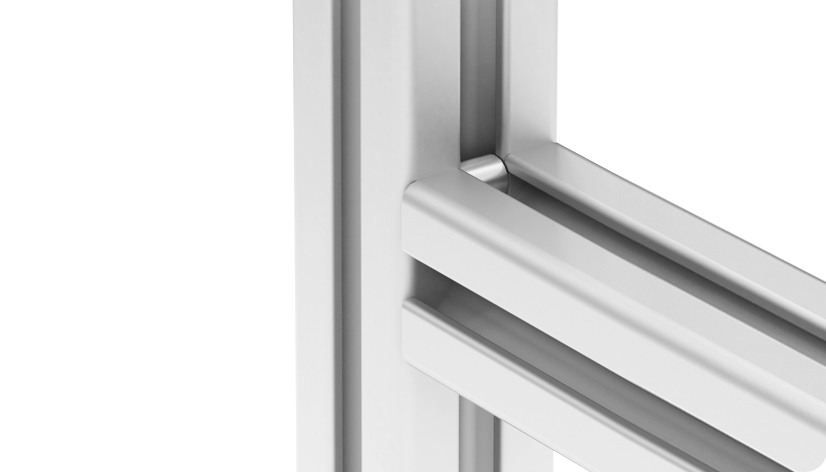

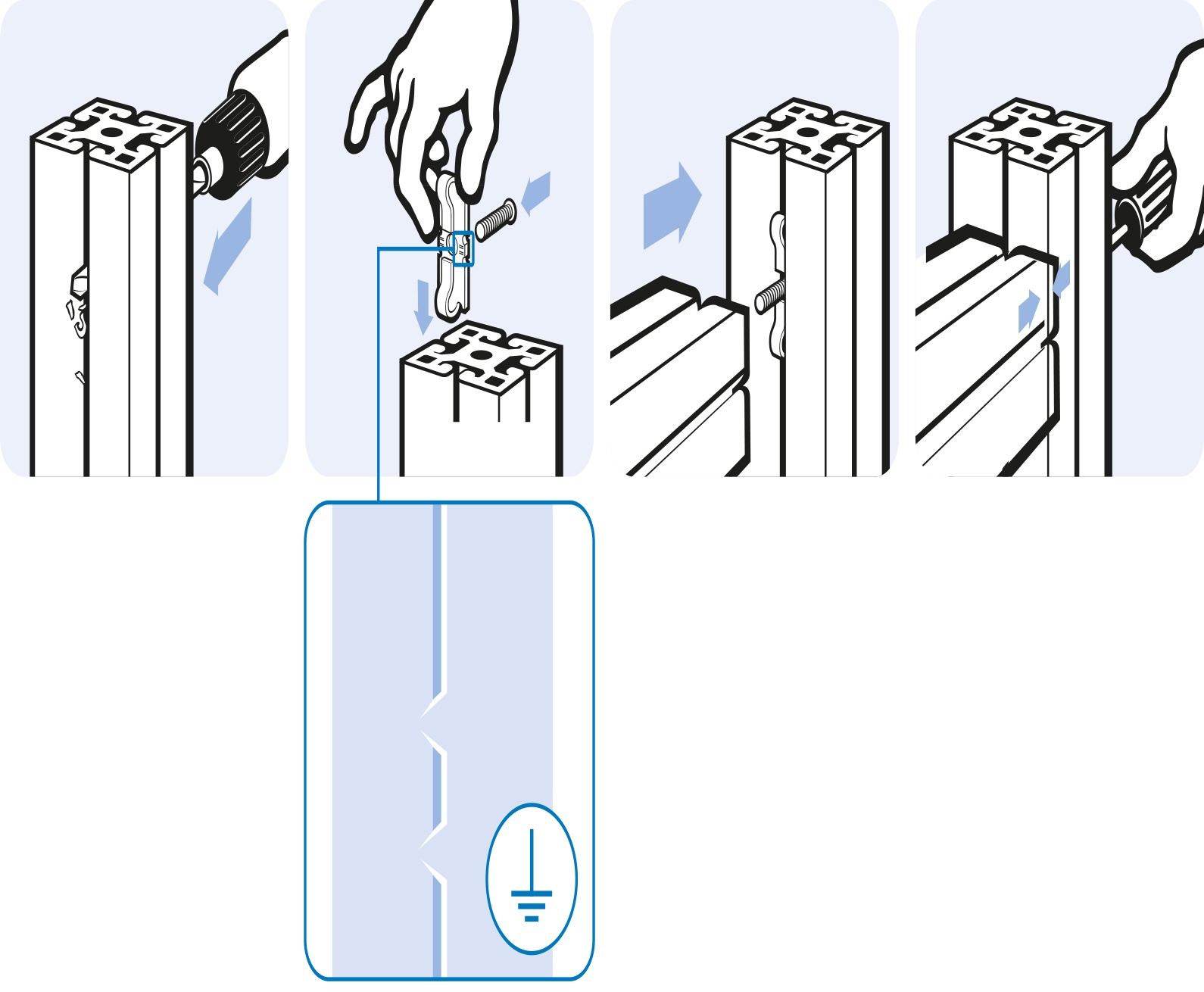

To connect two aluminum profiles; penetrates the andonized coat of the profile - thus ensuring a safe, ESD electrostatical discharging connection
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 100 pieces
- Weight
- 1.8 g
- ECLASS
- 23360290
- Category
- Screw Connectors
Versions
Select a version — the description and files below follow your selection.
| Part # | D (mm) | Version | H (mm) | Profile | ESD | Slot N (mm) | A x B (mm) | Pack Quantity | Add 1 pc to enquiry |
|---|---|---|---|---|---|---|---|---|---|
| 092038✓ Selected | 5.5 | Turn-lock, zinc-plated steel | 4.4 | - | ESD electrostatical discharging | 5 | 19.0 x 10.0 | 100 pieces | |
| 092039 | 6.5 | Turn-lock, zinc-plated steel | 7.3 | - | ESD electrostatical discharging | 6 | 27.5 x 13.0 | 100 pieces | |
| 092040 | 9.0 | Turn-lock, zinc-plated steel | 10.0 | - | ESD electrostatical discharging | 8 | 35.0 x 17.0 | 100 pieces | |
| 092040E | 9.0 | Turn-lock, stainless steel | 10.0 | - | ESD electrostatical discharging | 8 | ª 35.0 x 17.0 | 100 pieces | |
| 092040N12 | 13.0 | Turn-lock, zinc-plated steel | 10.0 | - | ESD electrostatical discharging | 12 | 55.0 x 26.0 | 100 pieces | |
| 099F0520M05 | 5.5 | Zinc-plated steel, with pan-head screw | 4.4 | - | ESD electrostatical discharging | 5 | 19.0 x 10.0 | 100 pieces | |
| 099F0630M06 | 6.5 | Zinc-plated steel, with pan-head screw | 7.3 | - | ESD electrostatical discharging | 6 | 27.5 x 13.0 | 100 pieces | |
| 099F0840M08 | 9.0 | Zinc-plated steel, with pan-head screw | 10.0 | - | ESD electrostatical discharging | 8 | 35.0 x 17.0 | 10 pieces | |
| 099F0840M08E | 9.0 | Stainless steel, with pan-head screw | 10.0 | - | ESD electrostatical discharging | 8 | ª 35.0 x 17.0 | 10 pieces | |
| 099F0840S07 | 9.0 | Zinc plated steel, with self forming screw S7 x 20 | 10.0 | I | ESD electrostatical discharging | 8 | 35.0 x 17.0 | 10 pieces |
Description 092038
- Description
To connect two aluminum profiles; penetrates the andonized coat of the profile - thus ensuring a safe, ESD electrostatical discharging connection
- Material
Steel / stainless steel
- Surface
Zinc plated / plain
Properties
| Profile Type | Profile Type I |
|---|---|
| Slot Size | Slot 5 |
| Product Feature | ESD |
| Profile Form | T-slot Profiles |
| Pack Quantity | 100 pieces |
| Model | Slot 5, 6, 8, 12 |

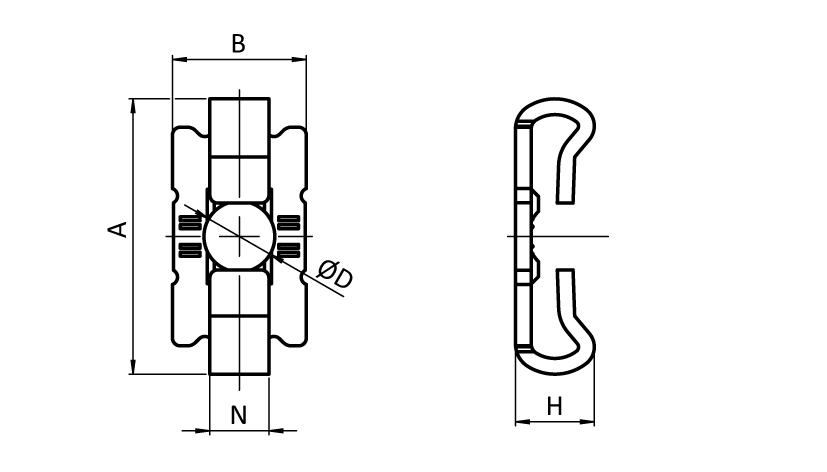

Drawing
From the FATH catalogue (EC-EN, p. 526)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
