FATH
Self-adhesive KANBAN Label Holder
Part #: 02012A1/4A · 5 variants
To hold Kanban cards or documents; For flexible adhesion even on uneven surfaces, removable without leaving any residue, reusable on supporting surfaces thanks to multi-use properties; Available in all common formats
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 37.9 g
- ECLASS
- 21102190
- Category
- KANBAN Label Holders
Versions
Select a version — the description and files below follow your selection.
| Part # | Version | H (mm) | B (mm) | Add 1 pc to enquiry |
|---|---|---|---|---|
| 02012A1/4A✓ Selected | 1/4 DIN | 92 | 220 | |
| 02012A5A | A5 | 163 | 220 | |
| 02012A6A | A6 | 117 | 158 | |
| 02012A7A | A7 | 87 | 110 | |
| 02012ECA | EC | 61 | 90 |
Description 02012A1/4A
- Color
Transparent (colorless)
- Description

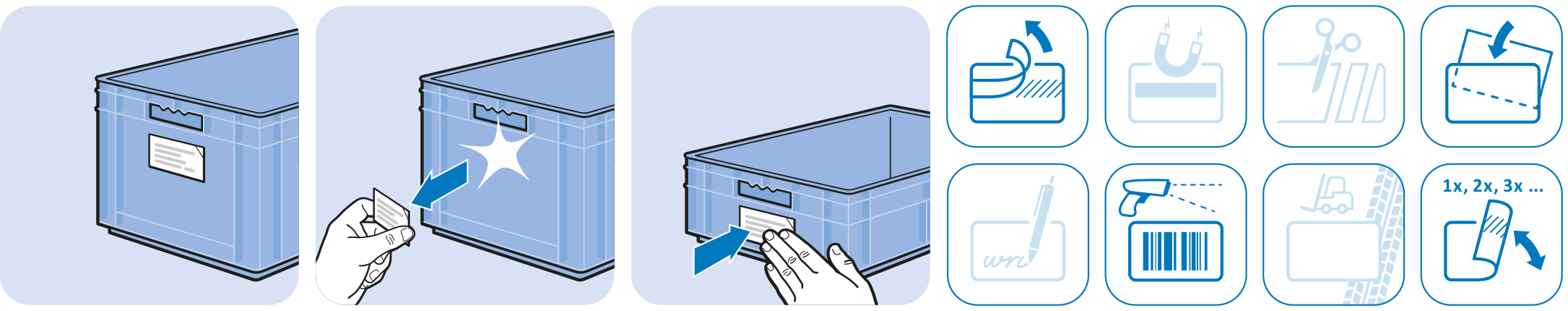

To hold Kanban cards or documents;
For flexible adhesion even on uneven surfaces, removable without leaving any residue, reusable on supporting surfaces thanks to multi-use properties;
Available in all common formats
- Material
Label holder: Plastic, PVC-free
Adhesive strip: PE foam, reusable
Properties
| Application Area | Shopfloor |
|---|---|
| Pack Quantity | 10 pieces |
| Model | PVC free, self-adhesive (multi-use) |
Drawing
From the FATH catalogue (SI-EN, p. 39)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
