FATH

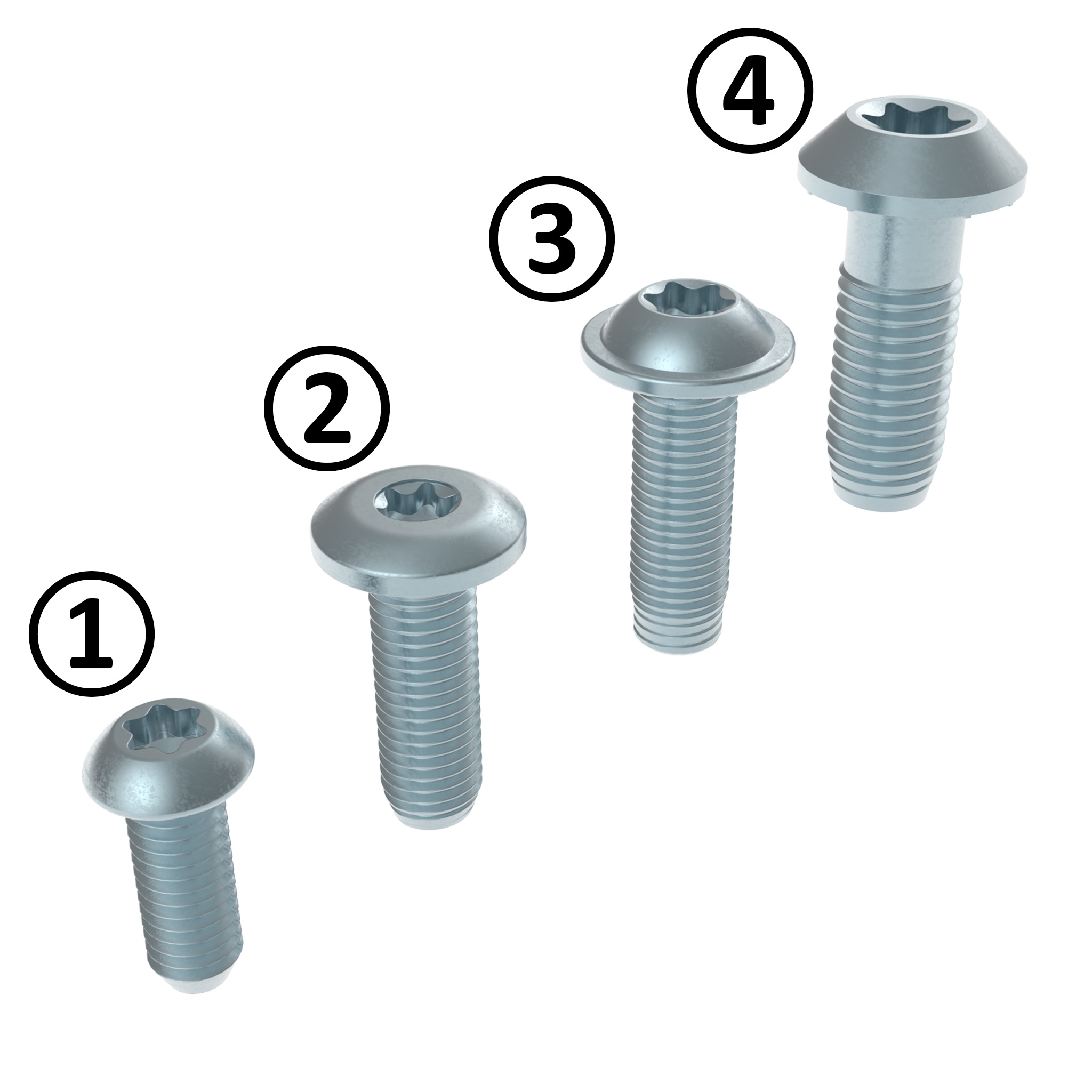

Self Forming Screw
Part #: 093S0616T · 4 variants

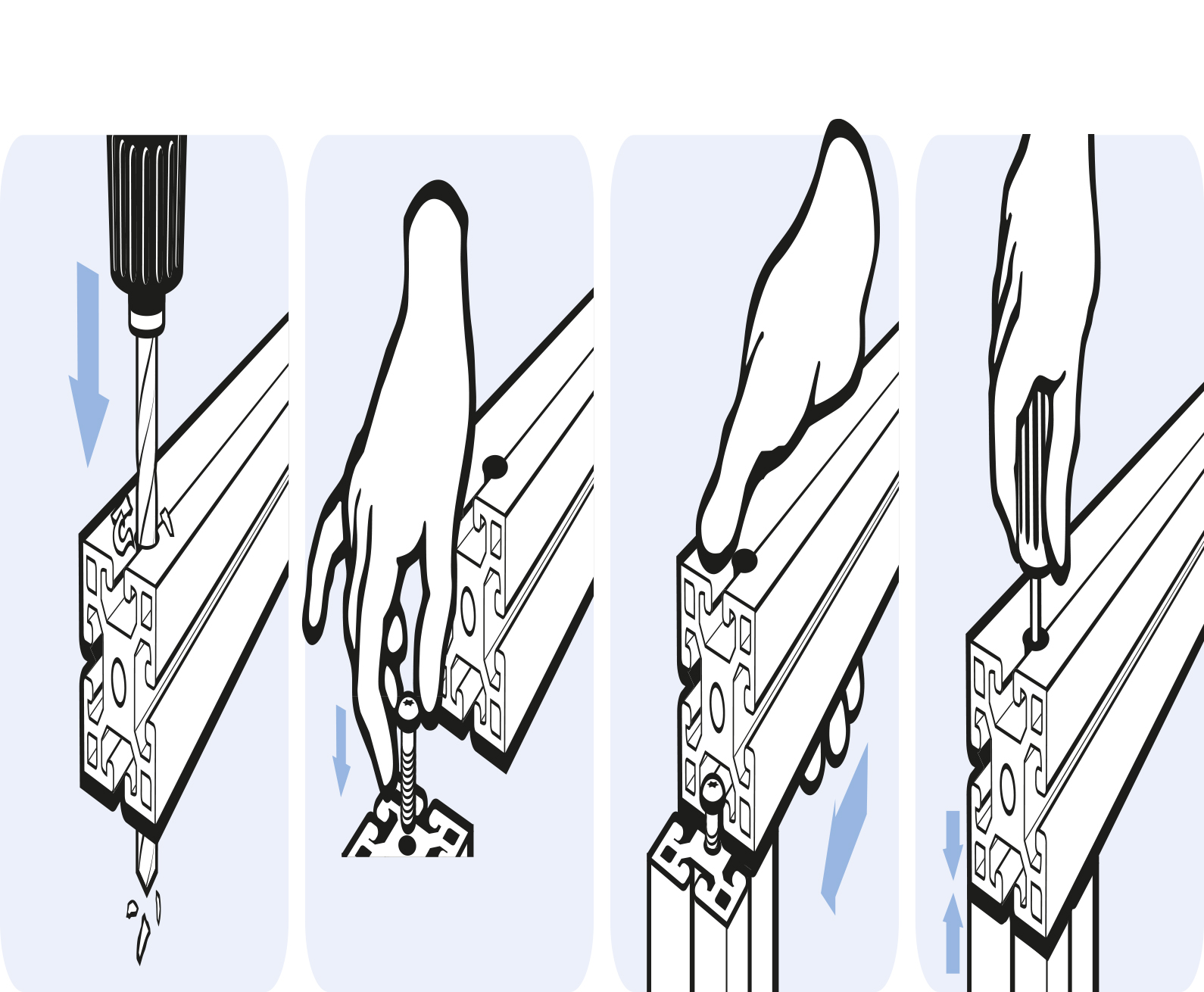

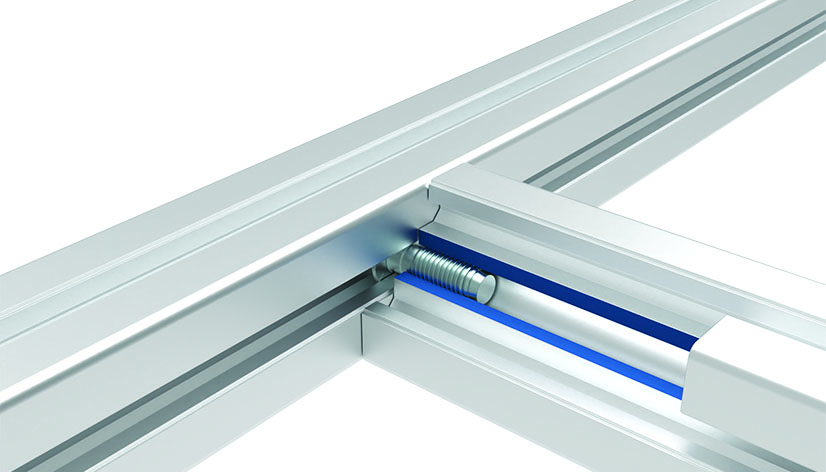

To connect two aluminum profiles; no thread cutter is necessary to fix the screw; because of the special form of the head of the screw and the self-forming thread, a conductive connection of two aluminum profiles is achieved
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 100 pieces
- Weight
- 4 g
- ECLASS
- 23360290
- Category
- Self Forming Screws
Versions
Select a version — the description and files below follow your selection.
Description 093S0616T
- Description
To connect two aluminum profiles; no thread cutter is necessary to fix the screw; because of the special form of the head of the screw and the self-forming thread, a conductive connection of two aluminum profiles is achieved
- Material
Steel
- Surface
Zinc plated
Properties
| Profile Type | Profile Type B |
|---|---|
| Product Feature | ESD |
| Profile Form | T-slot Profiles |
| Pack Quantity | 100 pieces |
| Model | With hexalobular socket TX |

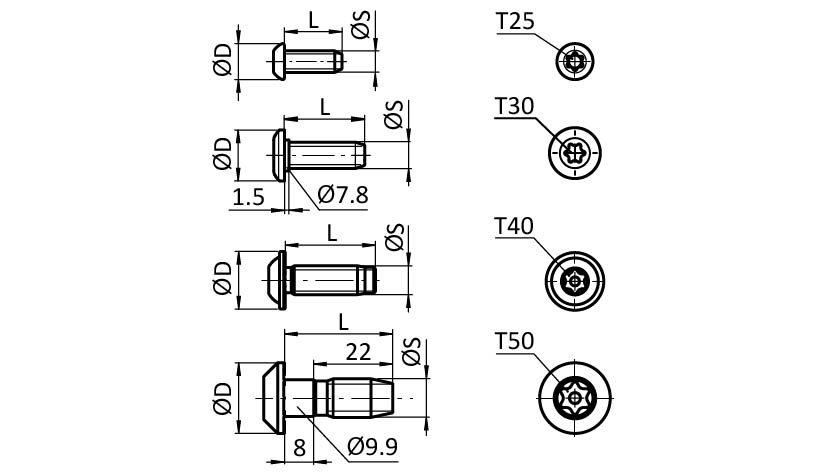

Drawing
From the FATH catalogue (EC-EN, p. 496)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
