FATH

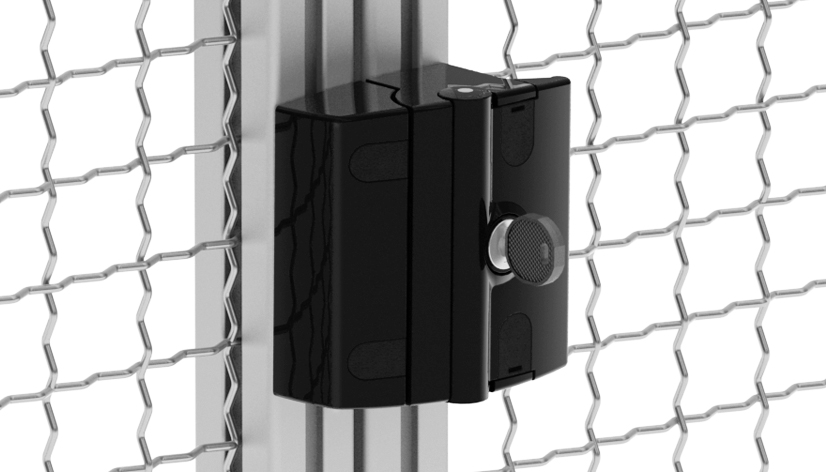

Slam Latch PRO
Part #: 0957404 · 3 variants
For an easy and secure latching and locking of doors and flaps, no mechanical preparation needed for the assembly; Safe against disassembling in the locked position
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 1 piece
- Weight
- 370 g
- ECLASS
- 23190290
- Category
- Slam Latches
Versions
Select a version — the description and files below follow your selection.
Description 0957404
- Color
Black
- Description
For an easy and secure latching and locking of doors and flaps, no mechanical preparation needed for the assembly;
Safe against disassembling in the locked position
- Fastening
From the front, using M6 socket head or pan head screws
- Material
Aluminum die-cast
- Surface
Powder coated
- Tip
*Universal: One key fits all slam latches
Unique: Each slam latch has a different key
Compatible Emergency Opener for Slam Latch see 0957409 et sq.;
Compatible Replacement Cover Cap (Set) see 0957404RS01
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Product Feature | Fractional |
| Application Area | Machinery & Plant Engineering |
| Pack Quantity | 1 piece |
| Model | Aluminum die-cast |

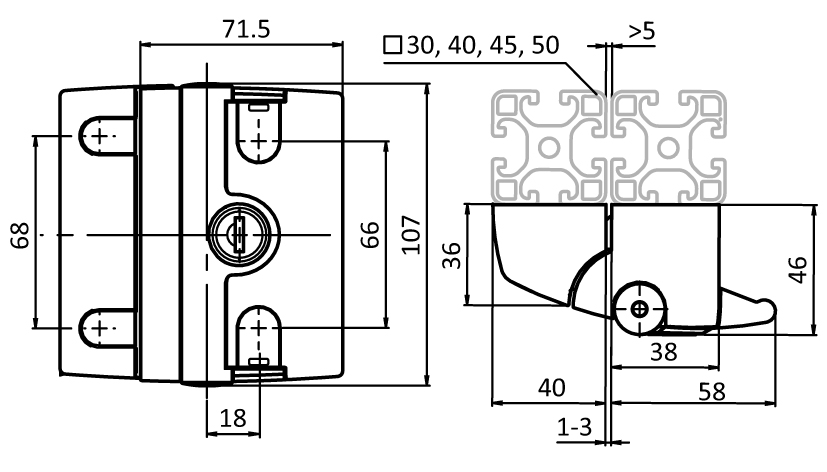

Drawing
From the FATH catalogue (EC-EN, p. 666)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
Product family
Matching products
Referenced in the description — nuts, plates, caps, assembly sets.
