FATH

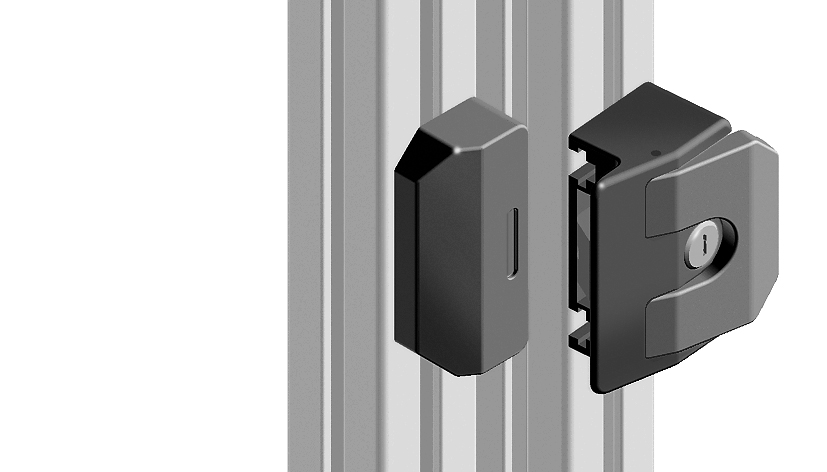

Slam Latch ZN
Part #: 0957101 · 3 variants
For an easy and secure latching and locking of doors and flaps
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 1 piece
- Weight
- 560 g
- ECLASS
- 23190290
- Category
- Slam Latches
Versions
Select a version — the description and files below follow your selection.
Description 0957101
- Color
Black
- Description
For an easy and secure latching and locking of doors and flaps

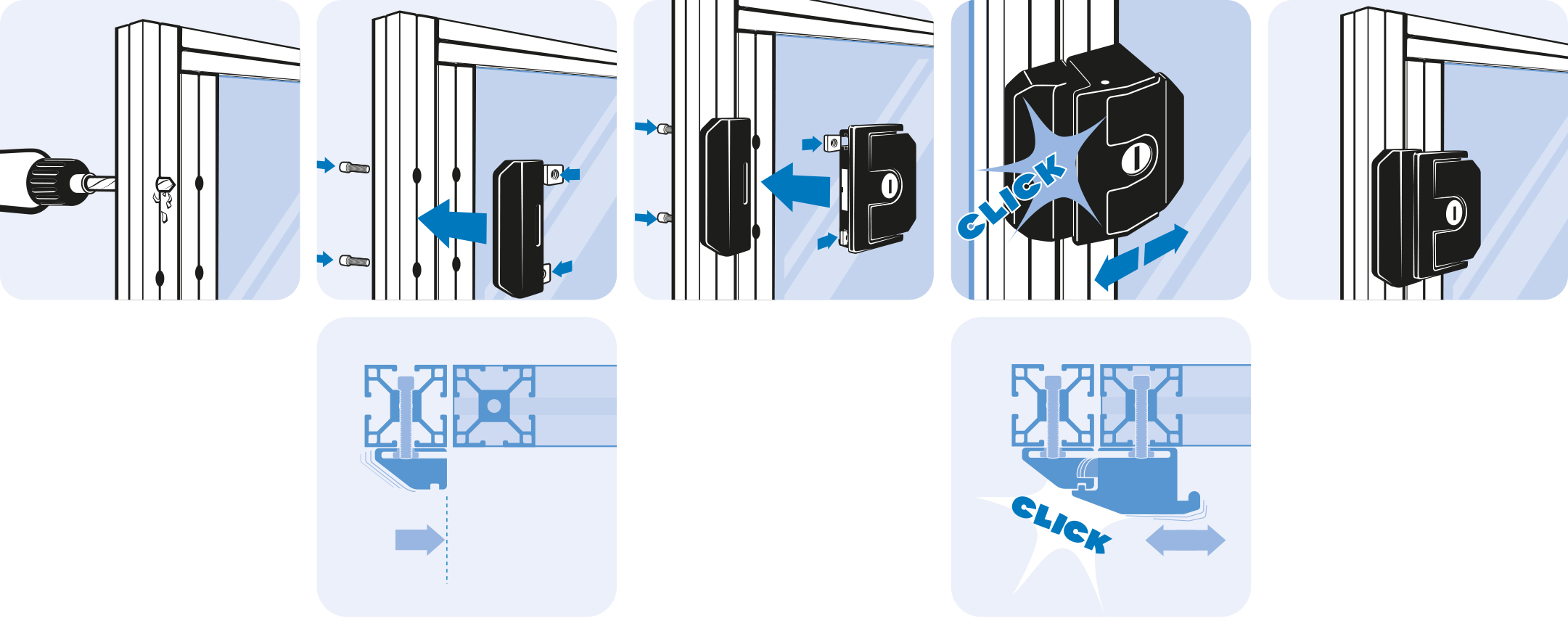

- Fastening
From the back, using M6 screws
- Material
Zinc die-cast
- Surface
Powder coated
- Tip
*Universal: One key fits all slam latches
Unique: Each slam latch has a different key
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Application Area | Machinery & Plant Engineering |
| Pack Quantity | 1 piece |
| Model | Zinc die-cast |

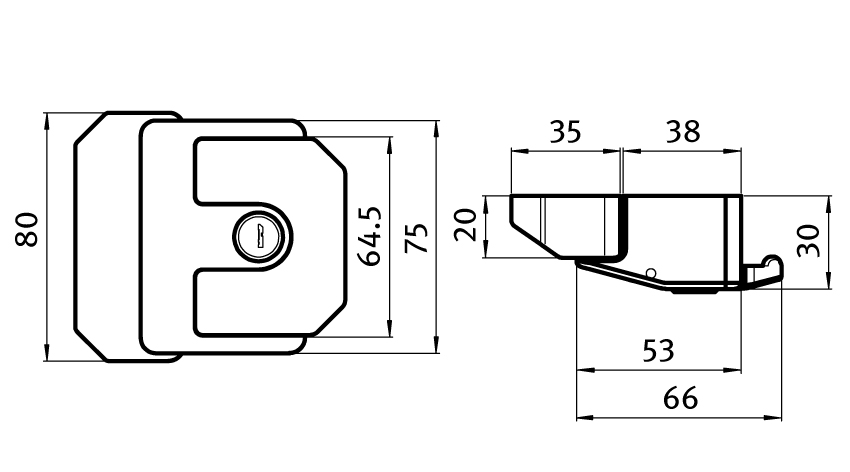

Drawing
From the FATH catalogue (EC-EN, p. 660)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
