FATH

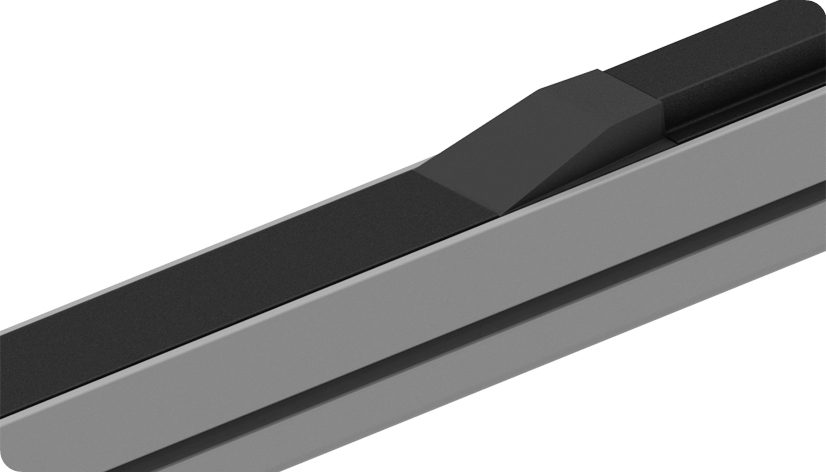

Slide Rail AL
Part #: 062AS91.2000 · 2 variants

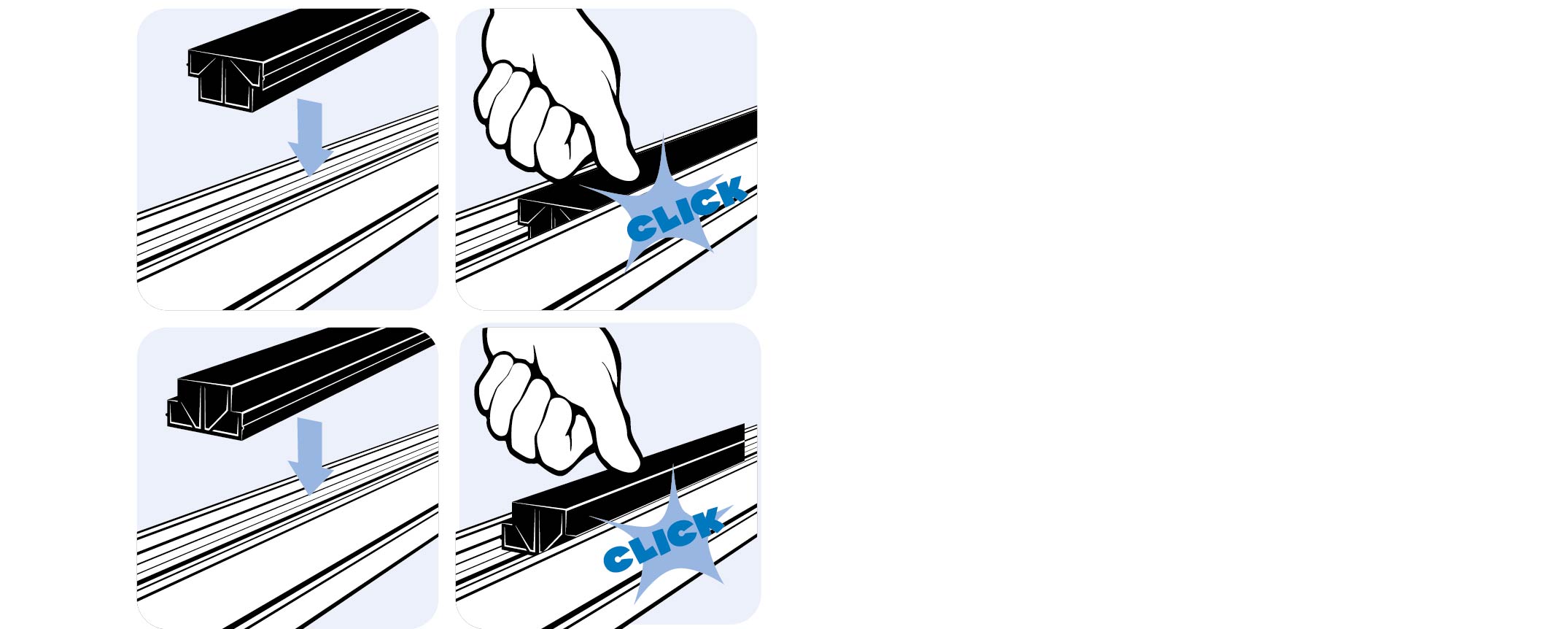

Can be installed in two positions to provide different levels; low-wear slide rail for simple transport or for use on steep slopes, also suitable as cover profile and spacer between two ball and brush units
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces at 2 meters (20 meters)
- Weight
- 324 g/m
- ECLASS
- 36120492
- Category
- Slide Rails AL
Versions
Select a version — the description and files below follow your selection.
| Part # | ESD | Max. Load (N) | Add 1 pc to enquiry |
|---|---|---|---|
| 062AS91.2000✓ Selected | - | 100 | |
| 062AS91ESD.2000 | ESD | 100 |
Description 062AS91.2000
- Color
Black
- Description
Can be installed in two positions to provide different levels; low-wear slide rail for simple transport or for use on steep slopes, also suitable as cover profile and spacer between two ball and brush units
- Material
Standard version: Plastics PE-HD
ESD electrostatical discharging version: Plastics PE-HD, carbon fiber reinforced
- Specials
Other lengths, other colors on request
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Application Area | Industrial Work Stations, Intralogistics |
| Pack Quantity | 10 pieces at 2 meters (20 meters) |
| Model | For roller tracks AL |

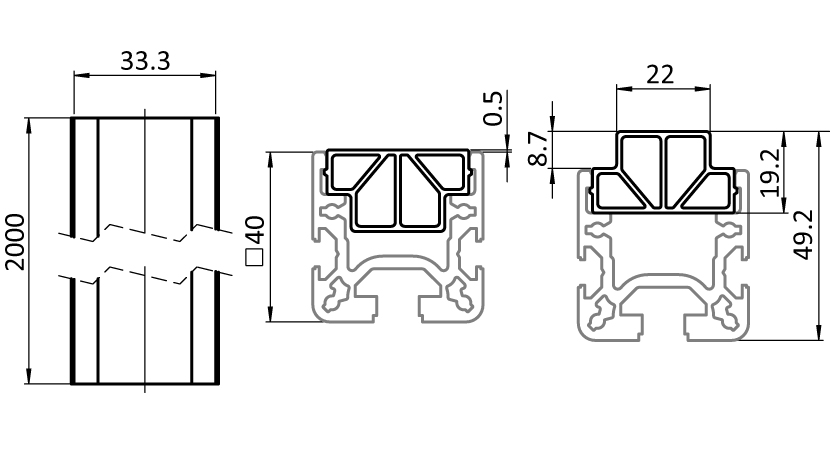

Drawing
From the FATH catalogue (EC-EN, p. 857)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
