FATH
Sliding Door Guide Insert for Frame Corner Connector 18 x 32 (Set)
Part #: 093WWCI18321S01
To guide lift or sliding doors in the slot of an aluminum profile, to insert in the frame corner connector 18 x 32 for clamp profile
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 10.2 g
- ECLASS
- 23210990
- Category
- Frame Corner Connector, Sliding Door Guides
Description 093WWCI18321S01
- Color
Guide insert: Gray ≈ RAL 7042
- Description
To guide lift or sliding doors in the slot of an aluminum profile, to insert in the frame corner connector 18 x 32 for clamp profile
- Material
Guide insert: Plastic PA, glass fiber reinforced
- Set
1 guide insert,
1 cover cap,
1 stopper
- Tip
Compatible Frame Corner Connector 18 x 32 for Clamp Profile (Set) see 093WWC18321N08S01
Properties
| Profile Type | Profile Type I |
|---|---|
| Pack Quantity | 10 pieces |
| Model | Slot 5 |

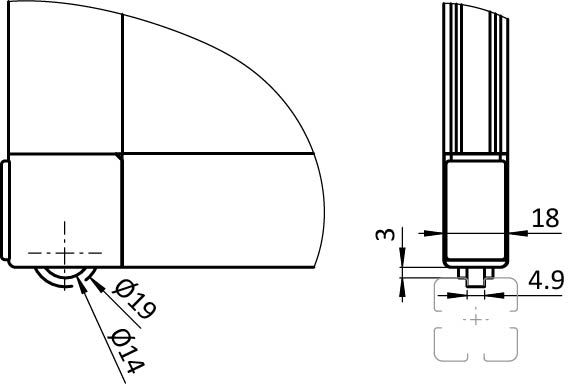

Drawing
From the FATH catalogue (EC-EN, p. 812)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
