FATH

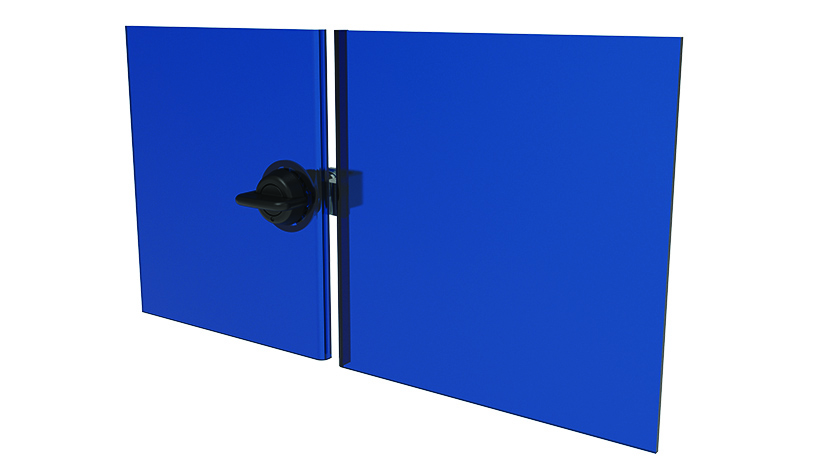

Small Compression Latch 16 / 22, Knob Style, incl. Cam (Set)

Part #: 0810219 · 8 variants

For easy, secure and compressive latching and locking of doors and flaps

Quantity

Price, availability and delivery time — we send one quote for all products.

Question about this product?

Technical questions, custom versions or quantities — write or call us.

Versions

Select a version — the description and files below follow your selection.

Color

Wing knob Insert: Black

Housing: Black

Seals: Black

Description

For easy, secure and compressive latching and locking of doors and flaps

Material

Wing knob insert: Zinc die-cast

Shaft: Steel

Retaining spring: Stainless steel SS316

Housing: Zinc die-cast

Cam: Steel

Seals: Rubber NBR

Washer: Steel

Nut: Steel

Assembly material: Steel

Surface

Wing knob insert: Powder coated

Shaft: Zinc plated

Housing: Powder coated

Cam: Zinc plated

Washer: Zinc plated

Nut: Zinc plated

Assembly material: Zinc plated

Application Area	Machinery & Plant Engineering
Pack Quantity	10 pieces
IP Rating	IP65 / NEMA 4
Door Version	Right, left

From the FATH catalogue (IH-US-EN, p. 54)

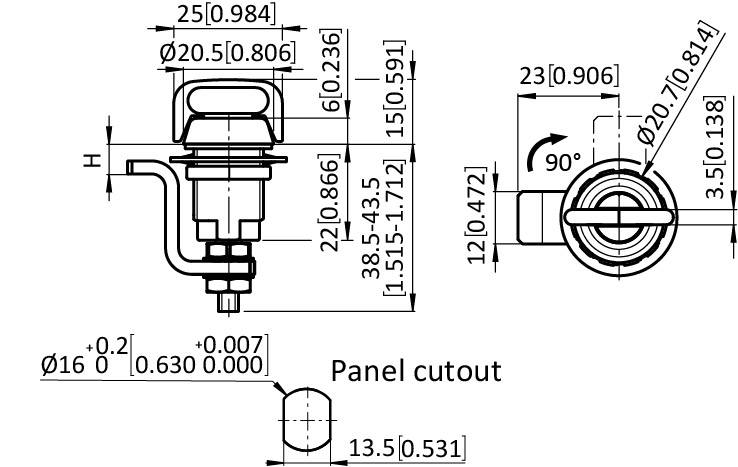

FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
