Small L-shape Quarter Turn Lock 16.3 / 13.5, incl. Cam (Set)
Part #: 0810455 · 12 variants
For easy and secure latching and locking of doors and flaps; Wide range of inserts, cams and accessories
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 57.8 g
- ECLASS
- 23199090
- Category
- Small L-shape Quarter Turn Locks
Versions
Select a version — the description and files below follow your selection.
| Part # | Material | H (mm) | Surface | Color | Insert type | Add 1 pc to enquiry |
|---|---|---|---|---|---|---|
| 0810455✓ Selected | Zinc die-cast | 7.5 | Powder coated | Black | Non-locking | |
| 0810456 | Zinc die-cast | 7.5 | Chrome plated | Chrome | Non-locking | |
| 0810457 | Zinc die-cast | 7.5 | Powder coated | Black | Key locking | |
| 0810458 | Zinc die-cast | 7.5 | Chrome plated | Chrome | Key locking | |
| 0811005 | Zinc die-cast | 13.5 | Powder coated | Black | Non-locking | |
| 0811006 | Zinc die-cast | 19.5 | Powder coated | Black | Non-locking | |
| 0811007 | Zinc die-cast | 13.5 | Powder coated | Black | Key locking | |
| 0811008 | Zinc die-cast | 19.5 | Powder coated | Black | Key locking | |
| 0811009 | Zinc die-cast | 13.5 | Chrome plated | Chrome | Non-locking | |
| 0811010 | Zinc die-cast | 19.5 | Chrome plated | Chrome | Non-locking | |
| 0811011 | Zinc die-cast | 13.5 | Chrome plated | Chrome | Key locking | |
| 0811012 | Zinc die-cast | 19.5 | Chrome plated | Chrome | Key locking |
Description 0810455
- Color
Insert: Black / chrome
Housing: Black / chrome
Seals: Black
- Description
For easy and secure latching and locking of doors and flaps;
Wide range of inserts, cams and accessories
- Material
Insert: Zinc die-cast
Housing: Zinc die-cast
Cam: Steel
Seals: Rubber NBR
Nut: Zinc die-cast
Screw: Steel
- Specials
Keyed different, FH751 key code on request
- Surface
Insert: Zinc plated / powder coated
Housing: Powder coated / chrome plated
Cam: Zinc plated
Nut: Zinc plated
Screw: Zinc plated
- Tip
Compatible Cams see 0810247 et sq.
Accessories see 0890032 et sq.
Properties
| Application Area | Machinery & Plant Engineering |
|---|---|
| Pack Quantity | 10 pieces |
| IP Rating | IP65 / NEMA 4 |

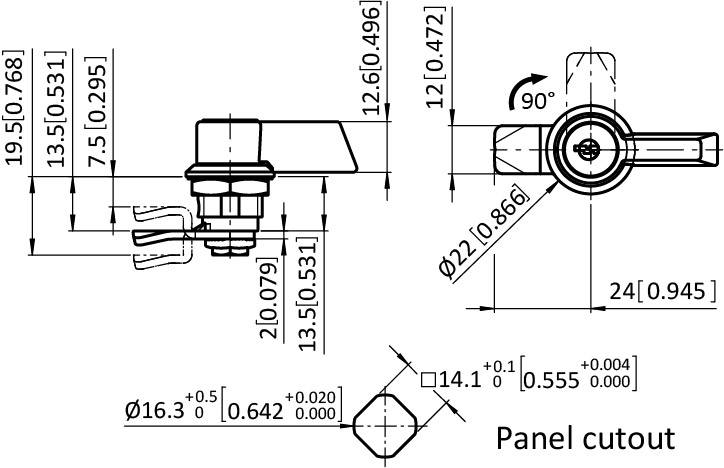

Drawing
From the FATH catalogue (IH-US-EN, p. 25)
