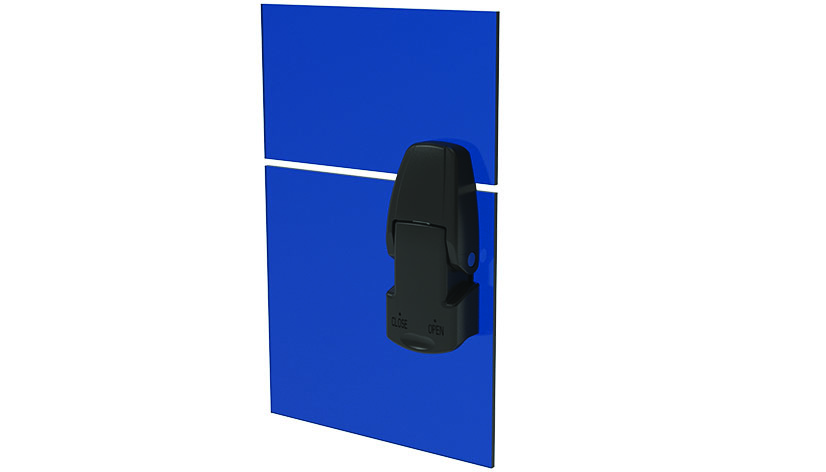

Small Over-Center Draw Latch 68
Part #: 0810096 · 4 variants
For easy, secure and compressive latching and locking of doors and flaps
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 89.1 g
- ECLASS
- 23199090
- Category
- Over-Center Draw Latches
Versions
Select a version — the description and files below follow your selection.
Description 0810096
- Color
Draw latch: Black / chrome
Lever: Black / chrome
Catch: Black / chrome
- Description
For easy, secure and compressive latching and locking of doors and flaps
- Material
Draw latch: Zinc die-cast
Lever: Zinc die-cast
Mounting plate: Steel
Pins: Stainless steel SS304
Return spring: Spring steel SS9260
Catch: Zinc die-cast
- Surface
Draw latch: Powder coated / chrome plated
Lever: Powder coated / chrome plated
Mounting plate: Zinc plated
Catch: Powder coated / chrome plated
Properties
| Application Area | Machinery & Plant Engineering |
|---|---|
| Pack Quantity | 10 pieces |

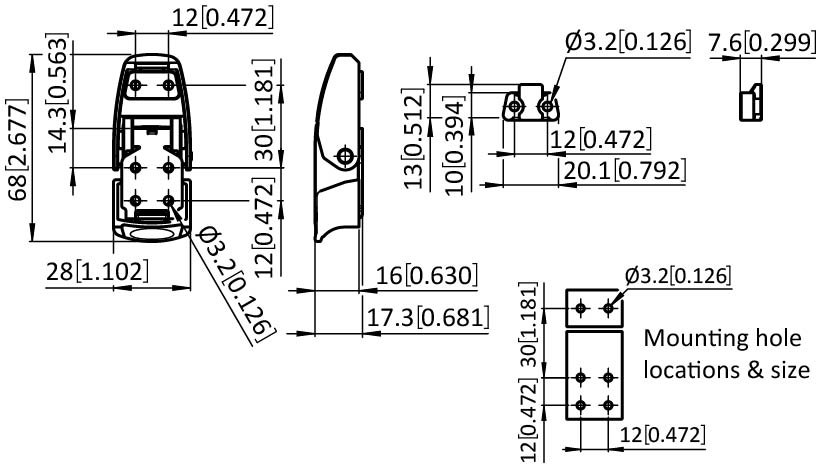

Drawing
From the FATH catalogue (IH-US-EN, p. 76)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
