FATH
Snap-Cable-Binding with Hammer
Part #: 093600AB06 · 8 variants

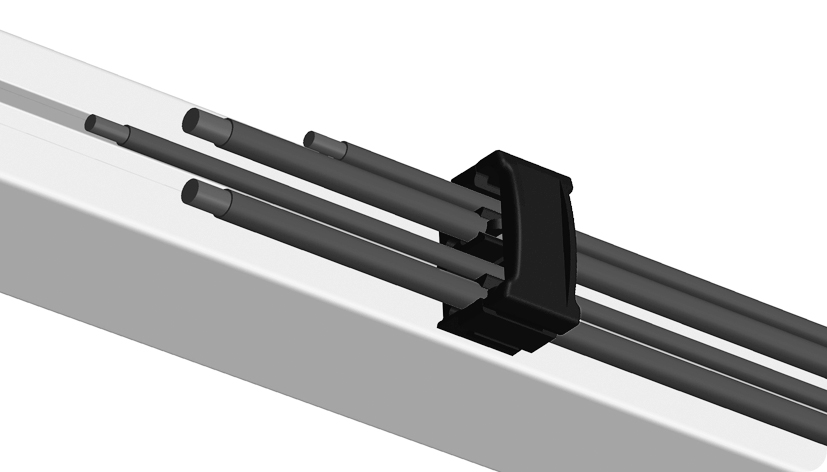

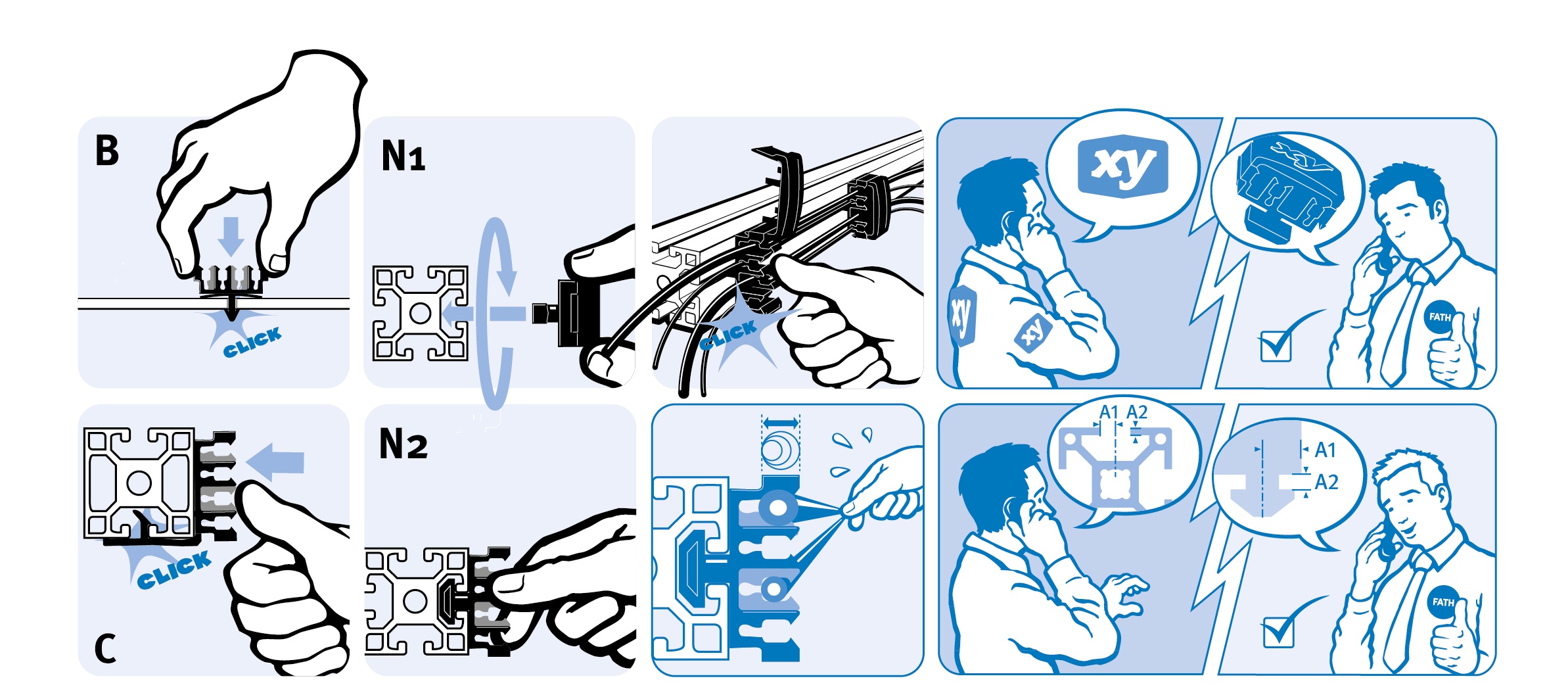

To attach of cables securely and quick and without cable ties, with strain relief; can be mounted into the slot by a quarter turn or by snapping in
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 100 pieces
- Weight
- 11.3 g
- ECLASS
- 27140790
- Category
- T- / Snap-hammer, Cable Fixation Blocks
Versions
Select a version — the description and files below follow your selection.

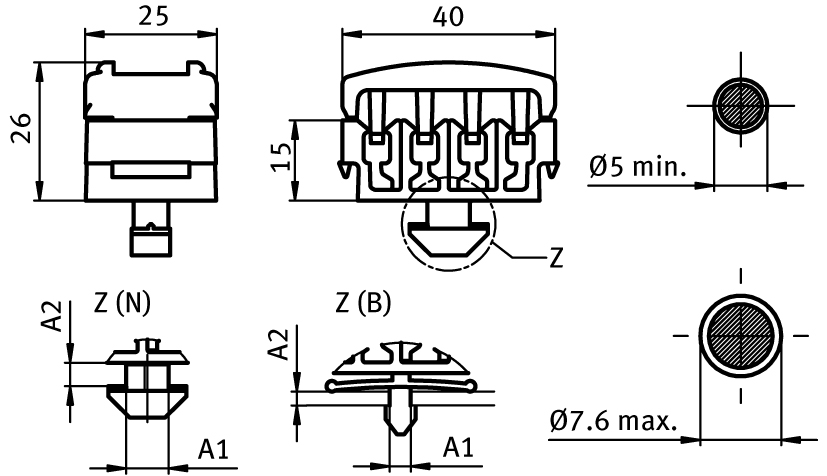

| Part # | Version | Profile | Slot N (mm) | A2 (Profile) (mm) | A1 (mm) | Hole | Add 1 pc to enquiry |
|---|---|---|---|---|---|---|---|
| 093600AB06✓ Selected | (B) Snap-hammer for hole incl. cover cap | - | - | 0.7 - 3.0 | - | Ø 6.0 +0.3 | |
| 093600AB08 | (B) Snap-hammer for hole incl. cover cap | - | - | 0.7 - 3.0 | - | Ø 8.0 +0.3 | |
| 093600B06 | (B) Snap-hammer for hole | - | - | 0.7 - 3.0 | - | Ø 6.0 +0.3 | |
| 093600B08 | (B) Snap-hammer for hole | - | - | 0.7 - 3.0 | - | Ø 8.0 +0.3 | |
| 093610AN10 | (N) Hammer for slot incl. cover cap | B | 10 | 5.7 (6.0) | 10.0 | - | |
| 093610N10 | (N) Hammer for slot | B | 10 | 5.7 (6.0) | 10.0 | - | |
| 093611AN08 | (N) Hammer for slot incl. cover cap | I | 8 | 4.4 (4.5) | 8.0 | - | |
| 093611N08 | (N) Hammer for slot | I | 8 | 4.4 (4.5) | 8.0 | - |
Description 093600AB06
- Color
Black
- Description
To attach of cables securely and quick and without cable ties, with strain relief; can be mounted into the slot by a quarter turn or by snapping in
- Material
Plastic PA
- Specials
Customized hammer, other sizes, other colors, material additives and with individual logo on request
Properties
| Pack Quantity | 100 pieces |
|---|---|
| Model | Ø 5.0 - 7.6 mm outside diameter |
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
