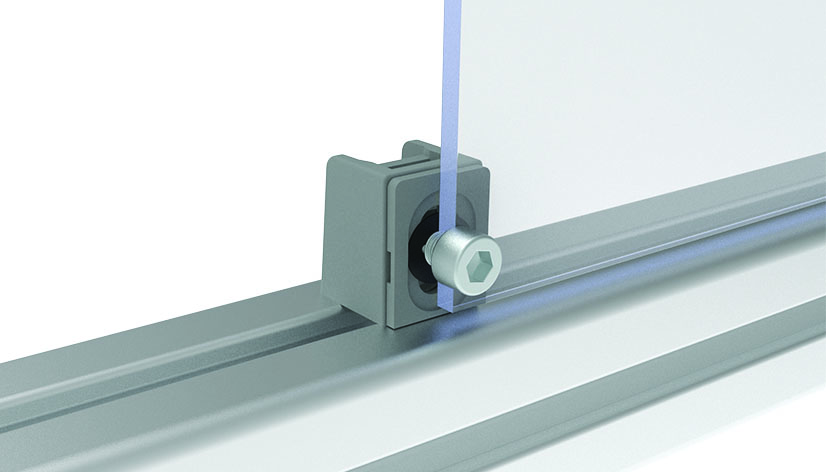

Spacer CS for Uni Blocks 18 / 25, Gray
Part #: 094102CSS03 · 6 variants

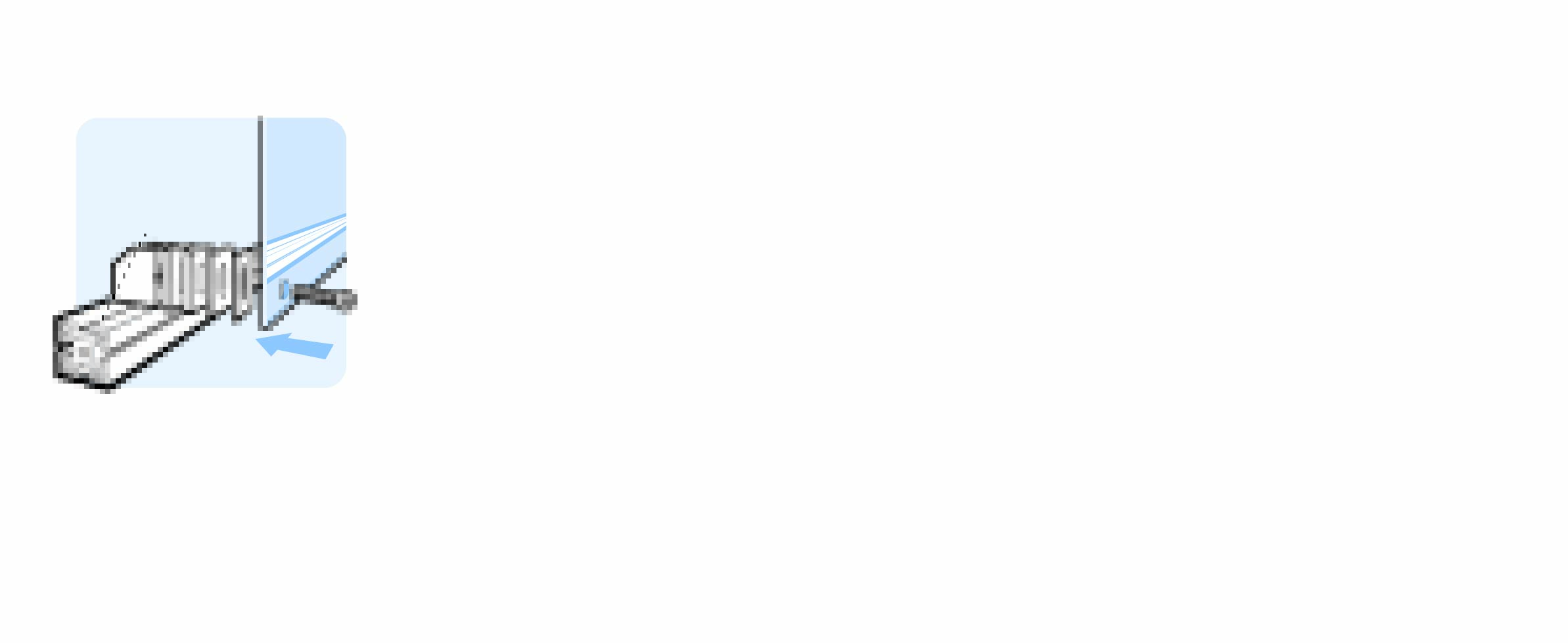

For height adjustment of the contact surfaces, for flush mounting of panels
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 100 pieces
- Weight
- 0.8 g
- ECLASS
- 23360492
- Category
- T-hammer, Uni Blocks
Versions
Select a version — the description and files below follow your selection.
| Part # | D (mm) | Fig. | Color | Add 1 pc to enquiry |
|---|---|---|---|---|
| 094102CSS03✓ Selected | *2.0 | ① | Gray ≈ RAL 7042 | |
| 094102CSS10 | *2.0 | ② | Gray ≈ RAL 7004 | |
| 094103CSS04 | 3.0 | ① | Gray ≈ RAL 7042 | |
| 094103CSS12 | 3.0 | ② | Gray ≈ RAL 7004 | |
| 094105CSS03 | 5.0 | ① | Gray ≈ RAL 7042 | |
| 094105CSS12 | 5.0 | ② | Gray ≈ RAL 7004 |
Description 094102CSS03
- Color
Gray
- Description
For height adjustment of the contact surfaces, for flush mounting of panels
- Material
Plastic PA, glass fiber reinforced
- Tip
Compatible Uni Block see 094100CSM6S01 and 094003CSM6S01
- Tip 2
* No further spacers can be added!
Properties
| Profile Type | Profile Type I |
|---|---|
| Pack Quantity | 100 pieces |
| Model | Plastic PA |
Drawing
From the FATH catalogue (EC-EN, p. 910)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
Matching products
Referenced in the description — nuts, plates, caps, assembly sets.
