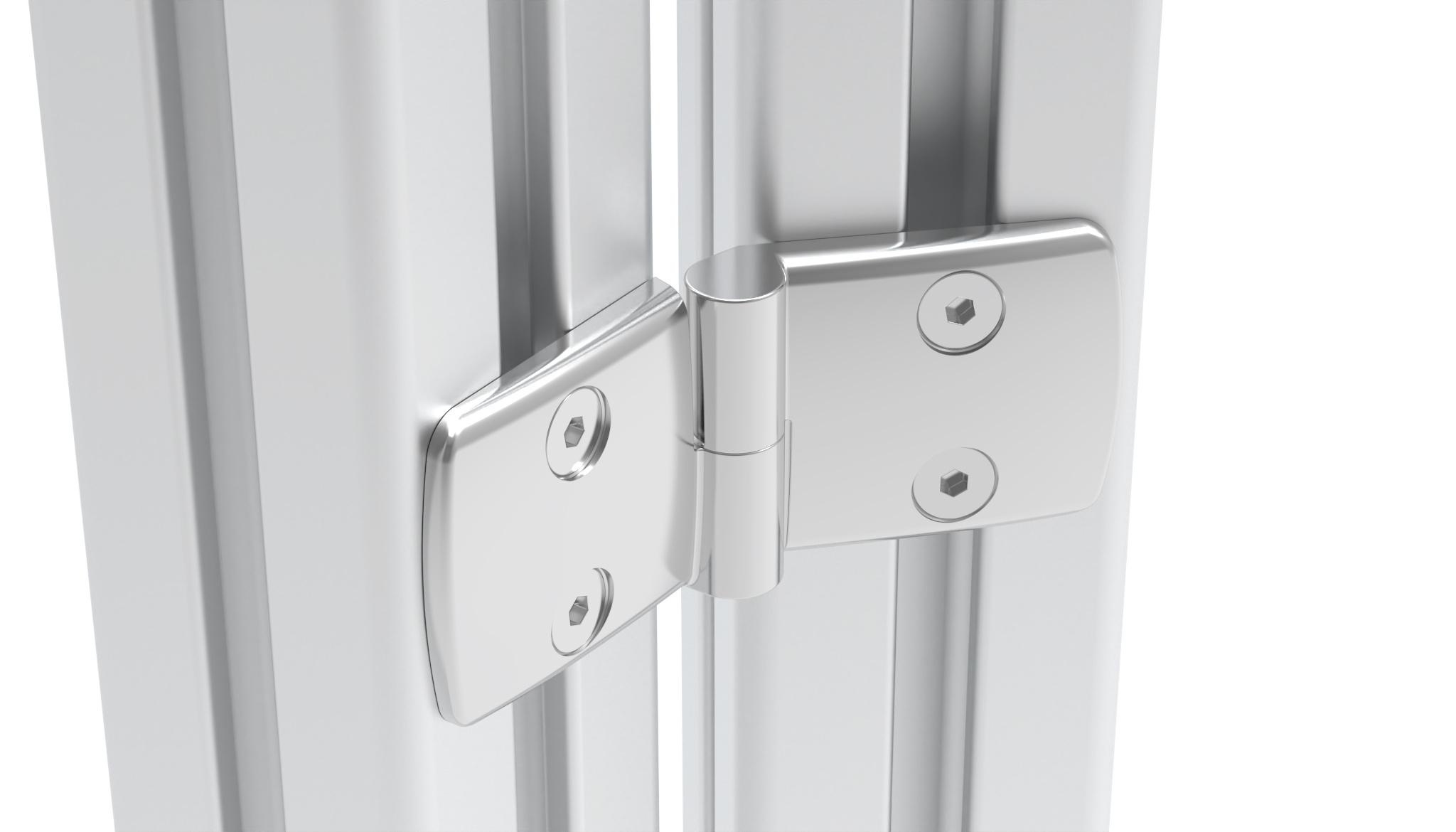

Stainless Steel Combi Hinge 60, Detachable

Part #: 095E6060L · 2 variants

To hinge panels or aluminum profiles

Quantity

Price, availability and delivery time — we send one quote for all products.

Question about this product?

Technical questions, custom versions or quantities — write or call us.

Versions

Select a version — the description and files below follow your selection.

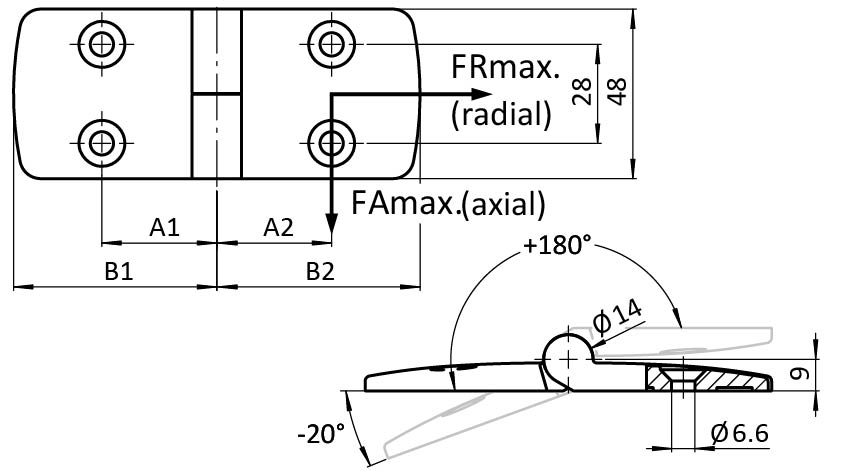

Part #	Version	B1 (mm)	B2 (mm)	Combination	FRmax (N)	FAmax (N)	A1 (mm)	A2 (mm)	Add 1 pc to enquiry
095E6060L✓ Selected	L: Left	56.5	56.5	60 / 60	1200	350	32.5	32.5
095E6060R	R: Right	56.5	56.5	60 / 60	1200	350	32.5	32.5

Description

To hinge panels or aluminum profiles

Fastening

From the front, using M6 countersunk screws

Material

Wing: Stainless steel SS316

Bolt: Stainless steel SS430 F

Surface

Plain

Profile Type	Profile Type B, Profile Type I
Application Area	Machinery & Plant Engineering
Pack Quantity	10 pieces
Model	Detachable

From the FATH catalogue (EC-EN, p. 260)
