FATH
Stainless Steel Hinge 50 x 50 LR
Part #: 09575050ELR
Dual symmetrical layout enables right and left hand application
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 156 g
- ECLASS
- 23219090
- Category
- Stainless Steel Hinges LR · Screw-on Hinges
Description 09575050ELR
- Description
Dual symmetrical layout enables right and left hand application
- Fastening
From the front, using M6 countersunk screws
- Material
Wings: Stainless steel SS316
Pin: Stainless steel SS316
- Surface
Plain
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Application Area | Machinery & Plant Engineering |
| Pack Quantity | 10 pieces |
| Model | Detachable, right and left application |

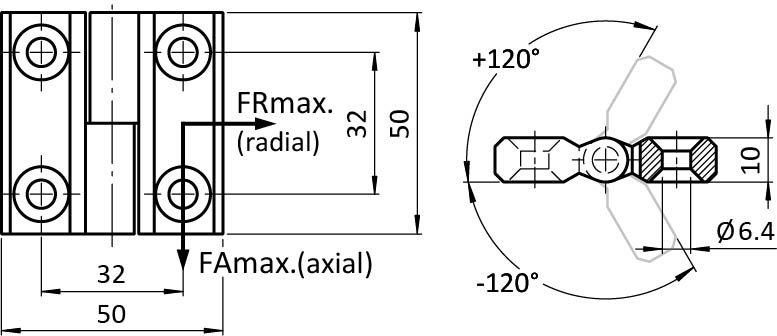

Drawing
From the FATH catalogue (EC-EN, p. 268)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
