FATH
Steel Connection Angle 40
Part #: 093WU401A · 5 variants
To connect two aluminum profiles at right angles
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 108 g
- ECLASS
- 23360290
- Category
- Steel Connection Angles
Versions
Select a version — the description and files below follow your selection.
| Part # | Fig. | Surface | Color | R (mm) | Pack Quantity | Add 1 pc to enquiry |
|---|---|---|---|---|---|---|
| 093WU401A✓ Selected | ② | Powder coated | Alu color | - | 10 pieces | |
| 093WU401AS05 | ⑤ | Powder coated | Alu color | 4.0 | 100 pieces | |
| 093WU401S | ① | Powder coated | Black | - | 10 pieces | |
| 093WU401SS05 | ④ | Powder coated | Black | 4.0 | 100 pieces | |
| 093WU401VS01 | ③ | Zinc plated | - | - | 10 pieces |
Description 093WU401A
- Color
Black, alu color, -
- Description
To connect two aluminum profiles at right angles
- Material
Steel
- Specials
Other surfaces on request
- Surface
Zinc plated / powder coated
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Application Area | Machinery & Plant Engineering |
| Pack Quantity | 10 pieces |
| Model | Steel, profile 40 and up |

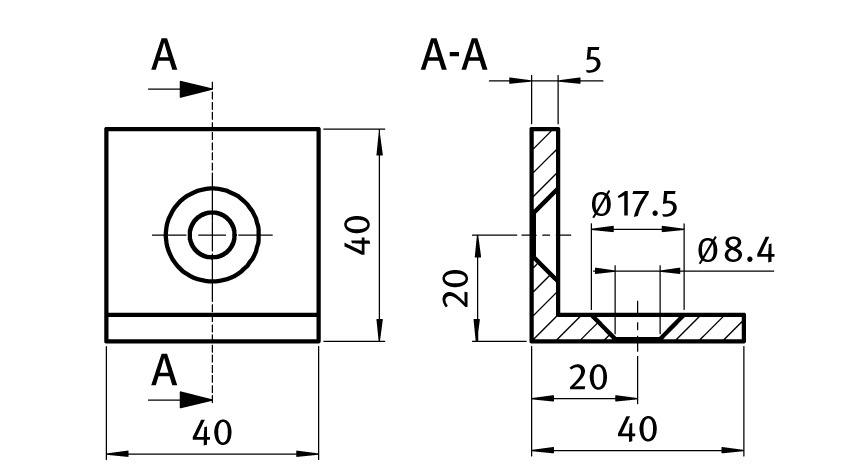

Drawing
From the FATH catalogue (EC-EN, p. 428)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
