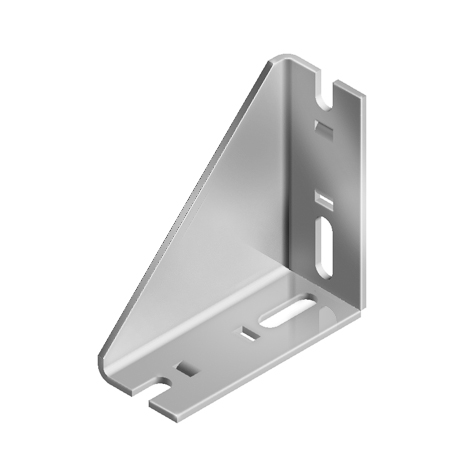

Steel Connection Angle 45 x 100
Part #: 093WV1001V · 2 variants

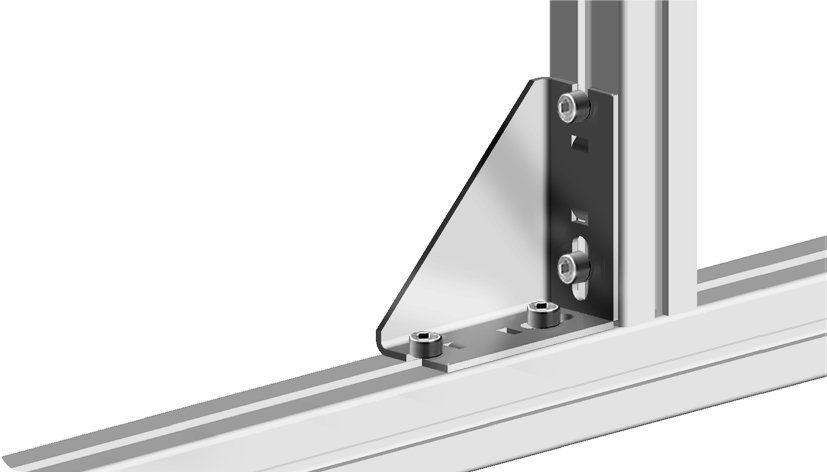

To connect two aluminum profiles at right angles
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 277.2 g
- ECLASS
- 23360290
- Category
- Steel Connection Angles
Versions
Select a version — the description and files below follow your selection.
| Part # | Slot N (mm) | Add 1 pc to enquiry |
|---|---|---|
| 093WV1001V✓ Selected | 10 | |
| 093WV1002V | - |
Description 093WV1001V
- Description
To connect two aluminum profiles at right angles
- Material
Steel
- Surface
Zinc plated
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Slot Size | Slot 10 |
| Pack Quantity | 10 pieces |
| Model | Steel, profile 45 and up |

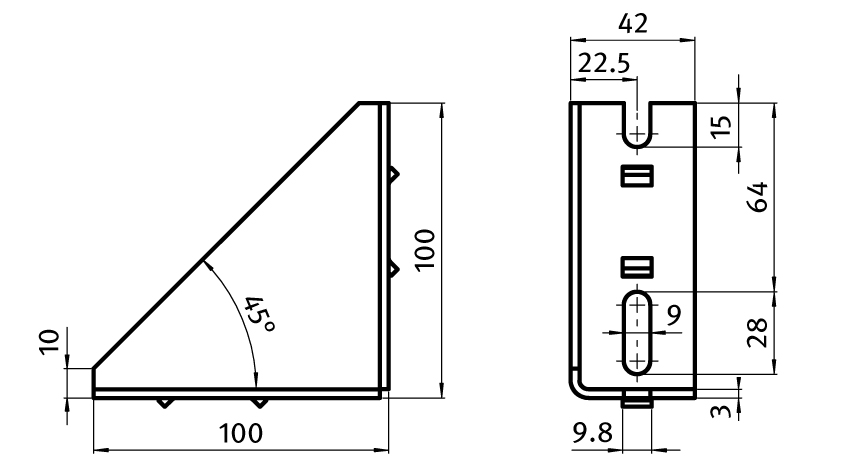

Drawing
From the FATH catalogue (EC-EN, p. 425)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
