FATH
Stop Buffer Cylindrical M
Part #: 051DC551520MM0610 · 2 variants
End-position damping of doors, flaps and covers
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 20 Stück
- Weight
- 11 g
- ECLASS
- 23189090
- Category
- Stop Buffers
Versions
Select a version — the description and files below follow your selection.
| Part # | H (mm) | Profile | L (mm) | M | ØD (mm) | Add 1 pc to enquiry |
|---|---|---|---|---|---|---|
| 051DC551520MM0610✓ Selected | 15.0 | I / B | 10.0 | M6 | 20.0 | |
| 051DC552020MM0610 | 20.0 | I / B | 10.0 | M6 | 20.0 |
Description 051DC551520MM0610
- Color
Buffer: Black
- Description
End-position damping of doors, flaps and covers
- Material
Buffer: Natural rubber (NR), ≈ 55 Shore A
Threaded bolt: Steel
- Surface
Threaded bolt: Zinc plated
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Application Area | Industrial Work Stations, Intralogistics |
| Pack Quantity | 20 Stück |
| Model | With cylindrical shape |

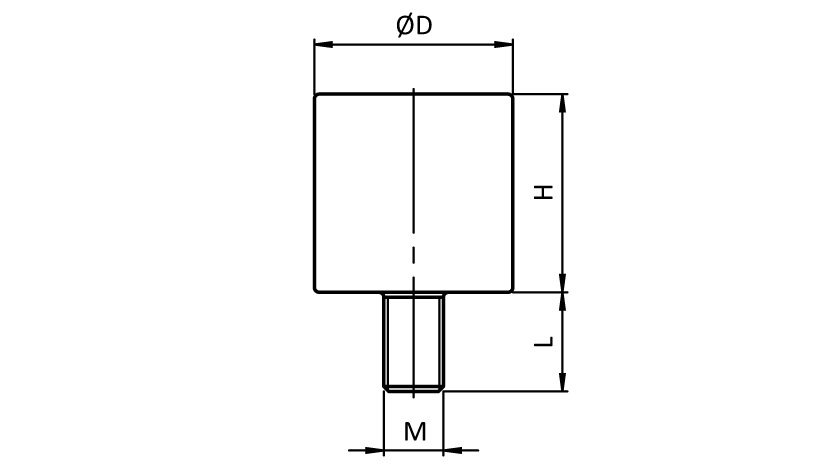

Drawing
From the FATH catalogue (EC-EN, p. 854)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
