FATH

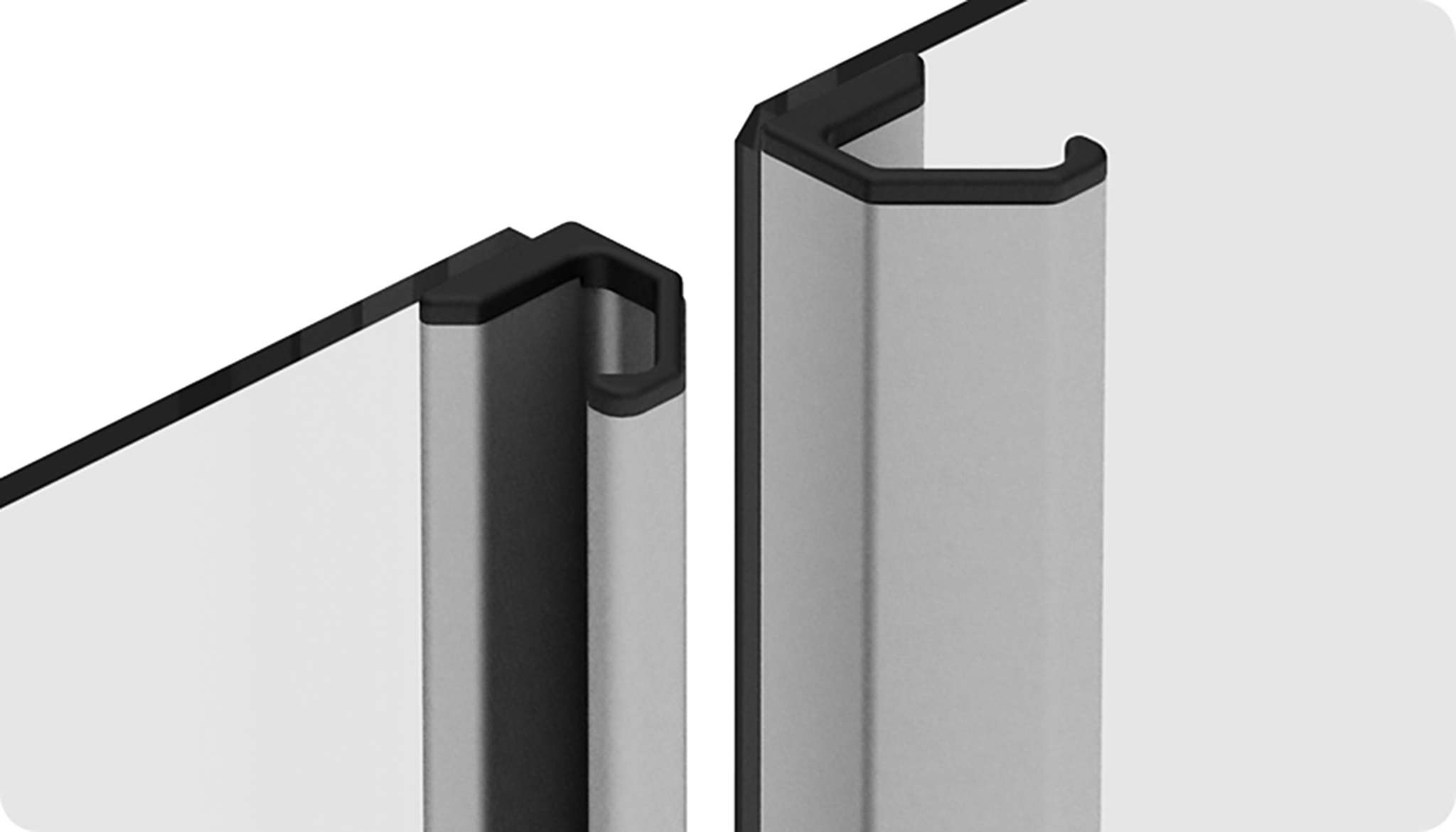

Strip Handle (Set)
Part #: 092023 · 2 variants
To mount on doors, flaps and aluminum profiles
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 127 g
- ECLASS
- 23010190
- Category
- Handles
Versions
Select a version — the description and files below follow your selection.
Description 092023
- Color
Cover caps: Black
- Description
To mount on doors, flaps and aluminum profiles
- Fastening
From the front with holes drilled into the slot base, from the back with T-slot nuts in the strip handle
- Material
Strip handle: Aluminum
Cover caps: Plastic PA, glass fiber reinforced
- Set
1 strip handle in length L [mm],
1 cover cap left,
1 cover cap right
- Specials
Other lengths on request
- Surface
Strip handle: Anodized
- Tip
Compatible Cover Cap (Set) see 092021
- Tip 2
*Please note: You are ordering in meters!
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Slot Size | Slot 5 |
| Application Area | Machinery & Plant Engineering |
| Pack Quantity | 10 pieces |
| Model | Aluminum, anodized |

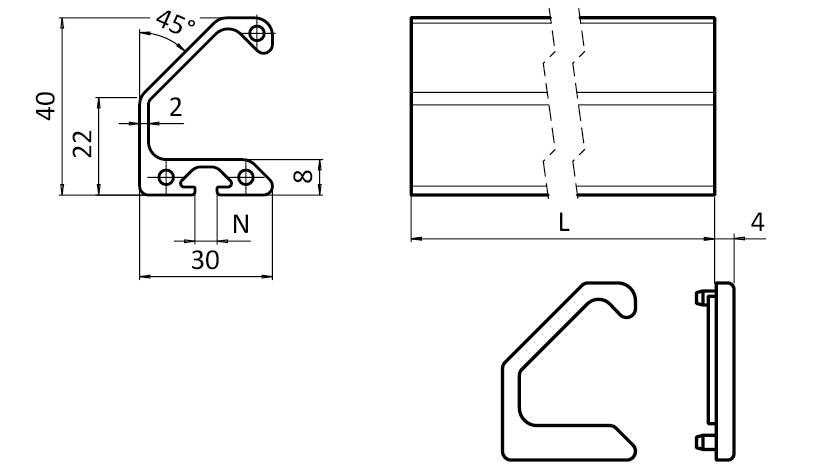

Drawing
From the FATH catalogue (EC-EN, p. 653)
