FATH
Suspension Plate D28 / D30
Part #: 061MA291D
To fix grab trays, grab containers and tray containers to horizontal or vertical tubular frame profiles with Ø 28 mm or Ø 30 mm outer diameter
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 113 g
- ECLASS
- 21102092
- Category
- Suspension Plates D28 / D30
Description 061MA291D
- Color
Suspension plate: Black
- Description
To fix grab trays, grab containers and tray containers to horizontal or vertical tubular frame profiles with Ø 28 mm or Ø 30 mm outer diameter
- Material
Suspension plate: Plastics PA, glass fiber reinforced
Assembly material: Steel
- Surface
Mounting material: Zinc plated
- Tip
Compatible Grab Tray see 061MGT2D391H
Compatible Grab Container see 061MGC2K291H
Compatible Tray Container see 061MTC2K291H
Properties
| Modular Dimension | Modular Dimension D28, Modular Dimension D30 |
|---|---|
| Profile Form | Round Tubular Profiles |
| Pack Quantity | 10 pieces |
| Model | For tubular frame profiles |

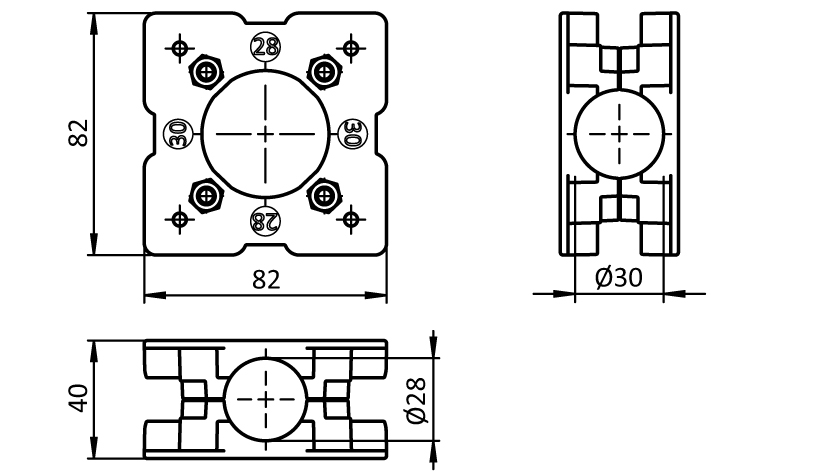

Drawing
From the FATH catalogue (EC-EN, p. 1075)
