FATH

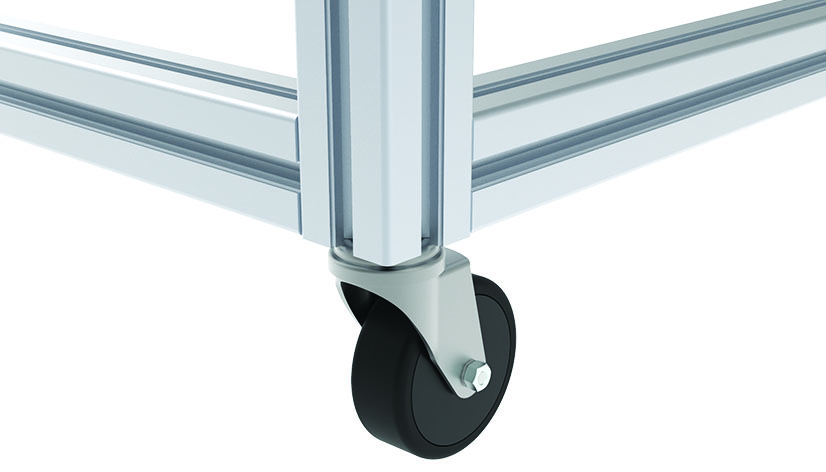

Swivel Caster Ø 75
Part #: 098S075TN · 2 variants
Reliable and quiet swivel caster, trackless, with thread guard; can be directly fixed to aluminum profiles or with an additional transport and base plate
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 1 piece
- Weight
- 262 g
- ECLASS
- 23370201
- Category
- Swivel Casters
Versions
Select a version — the description and files below follow your selection.
| Part # | D (mm) | H (mm) | ESD | Max. Load (N) | Swivel Caster Tread | Wheel Body | Add 1 pc to enquiry |
|---|---|---|---|---|---|---|---|
| 098S075TN✓ Selected | 75 | 98 | - | 700 | TPE, gray ≈ RAL 7001 | PP, gray | |
| 098S075TNESD | 75 | 98 | ESD | 490 | TPE, gray ≈ RAL 7031 | PP, black |
Description 098S075TN
- Color
Housing: Alu color
Tread: See table
Wheel body: See table
- Description
Reliable and quiet swivel caster, trackless, with thread guard; can be directly fixed to aluminum profiles or with an additional transport and base plate
- Fastening
For end face mounting, a suitable thread must be cut into the core hole
- Material
Housing: Steel
Tread: See table
Wheel body: See table
- Specials
Other kinds of wheels, other colors, other surfaces on request
- Surface
Housing: Powder coated
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Application Area | Machinery & Plant Engineering |
| Pack Quantity | 1 piece |
| Model | With bolt hole pattern |

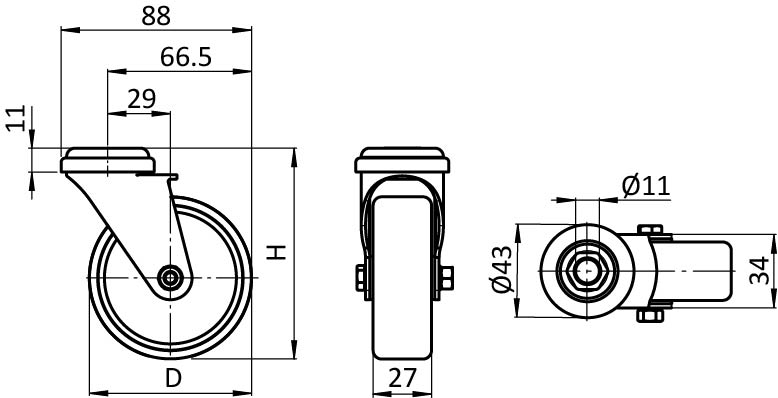

Drawing
From the FATH catalogue (EC-EN, p. 140)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
