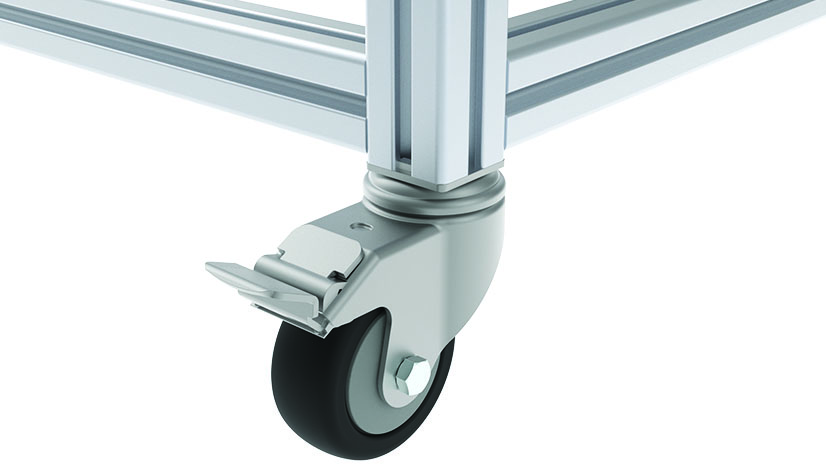

Swivel Caster Ø 80 / 100 / 125 with System Brake

Part #: 098S080ADN · 21 variants

Reliable and quiet swivel caster, trackless (except solid rubber ESD electrostatical discharging), with ball bearings and thread guard; can be fixed to aluminum profiles; compatible with all swivel and fixed casters due to consistent height level with optional adapter plate S; no additional transport and base plate needed

Quantity

Price, availability and delivery time — we send one quote for all products.

Question about this product?

Technical questions, custom versions or quantities — write or call us.

+359 888 525 135 [email protected]

Enquire about this product

Pack: 1 piece
Weight: 535 g
ECLASS: 23370201
Category: Swivel Casters

Versions

Select a version — the description and files below follow your selection.

Part #	D (mm)	H (mm)	ESD	Max. Load (N)	Swivel Caster Tread	Wheel Body	Bearing
098S080ADN✓ Selected	80	108	-	1000	PA, black; *with slide bearings	PA, black	Slide bearing
098S080GDN	80	108	-	800	Solid rubber, gray ≈ RAL 7001	PA, black	Ball bearing
098S080GDNESD	80	108	ESD	600	Solid rubber, black	PA, black	Ball bearing
098S080TDN	80	108	-	1000	TPE, gray ≈ RAL 7031	PP, gray	Slide bearing
098S080TDNESD	80	108	ESD	650	TPE, gray ≈ RAL 7031	PP, black	Ball bearing
098S080UDN	80	108	-	1200	TPU, gray ≈ RAL 7024	PA, gray	Ball bearing
098S080UDNESD	80	108	ESD	1000	TPU, gray ≈ RAL 7024	PA, black	Ball bearing
098S100ADN	100	133	-	1200	PA, black; *with slide bearings	PA, black	Slide bearing
098S100GDN	100	133	-	1100	Solid rubber, gray ≈ RAL 7001	PA, black	Ball bearing
098S100GDNESD	100	133	ESD	800	Solid rubber, black	PA, black	Ball bearing
098S100TDN	100	133	-	1100	TPE, gray ≈ RAL 7031	PP, gray	Ball bearing
098S100TDNESD	100	133	ESD	700	TPE, gray ≈ RAL 7031	PP, black	Ball bearing
098S100UDN	100	133	-	1200	TPU, gray ≈ RAL 7024	PA, gray	Ball bearing
098S100UDNESD	100	133	ESD	1200	TPU, gray ≈ RAL 7024	PA, black	Ball bearing
098S125ADN	125	158	-	1200	PA, black; *with slide bearings	PA, black	Slide bearing
098S125GDN	125	158	-	1000	Solid rubber, gray ≈ RAL 7001	PA, black	Ball bearing
098S125GDNESD	125	158	ESD	750	Solid rubber, black	PA, black	Ball bearing
098S125TDN	125	158	-	1200	TPE, gray ≈ RAL 7031	PP, gray	Ball bearing
098S125TDNESD	125	158	ESD	800	TPE, gray ≈ RAL 7031	PP, black	Ball bearing
098S125UDN	125	158	-	1200	TPU, gray ≈ RAL 7024	PA, gray	Ball bearing
098S125UDNESD	125	158	ESD	1200	TPU, gray ≈ RAL 7024	PA, black	Ball bearing

Description 098S080ADN

Color

Housing: Alu color

Tread: See table

Wheel body: Black, gray

Description

Material

Housing: Steel

Tread: See table

Wheel body: See table

Specials

Other kinds of wheels, other colors, other surfaces on request

Surface

Housing: Powder coated

Tip

Compatible Adapter Plate for Swivel Casters Ø 80 / 100 / 125 see 098SA40N08

Properties

Profile Type	Profile Type B, Profile Type I
Application Area	Machinery & Plant Engineering
Pack Quantity	1 piece
Model	With bolt hole and system brake; compatible with optional adapter plate S

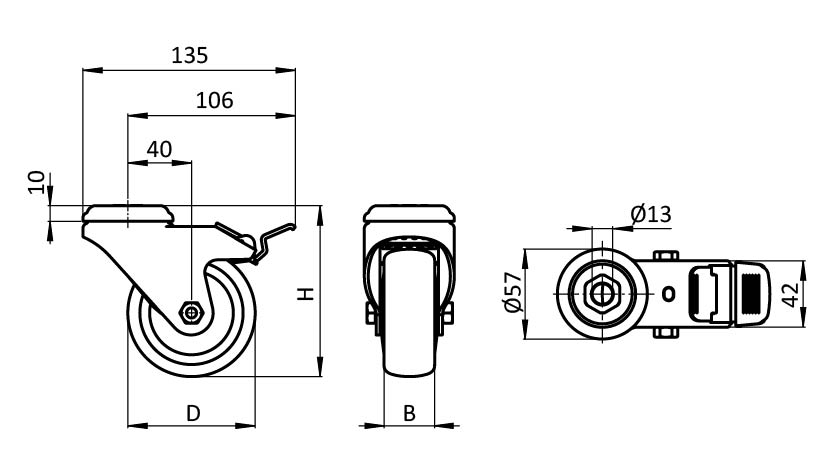

Drawing

From the FATH catalogue (EC-EN, p. 143)

CAD models

FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.

This product on fath24.com ↗FATH on PARTcommunity ↗

Product family

Swivel And Fixed CasterS

Matching products

Referenced in the description — nuts, plates, caps, assembly sets.

Adapter Plate for Swivel Casters Ø 80 / 100 / 125
098SA40N08
