FATH
Swivel Caster Arm I 40 x 80 (Set)
Part #: 098SA170T4080S01

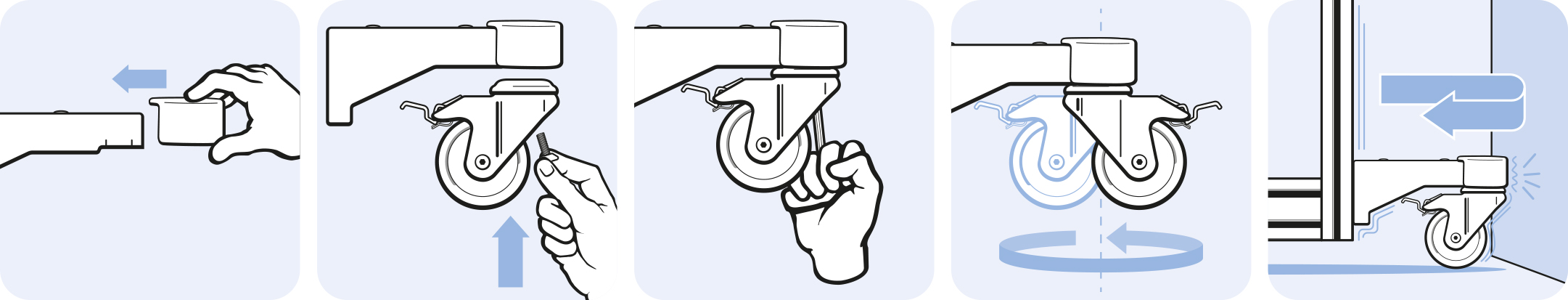

To mount 360° rotating swivel casters with bolt hole pattern in the back - also with double system brake; higher stability against overturning due to lower center of gravity, icl. side impact protection; Swivel caster arm can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 746 g
- ECLASS
- 23370292
- Category
- Accessories for Swivel and Fixed Casters
Description 098SA170T4080S01
- Color
Arm: Alu color
Bumper: Gray ≈ RAL 7042
Cover cap: Gray ≈ RAL 7042
- Description
To mount 360° rotating swivel casters with bolt hole pattern in the back - also with double system brake;
higher stability against overturning due to lower center of gravity, icl. side impact protection;
Swivel caster arm can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)
- Material
Arm: Steel
Bumper: Plastic TPE, ≈ 70 Shore A
Screw: Steel
Cover cap: Plastic
- Set
1 caster arm,
1 bumper,
2 screw DIN EN ISO 7380 (DIN 34805) - M8 x 16,
1 screw DIN EN ISO 10642 (DIN 7991) - M10 x 25,
2 cover cap
- Specials
Other surfaces, other colors on request
- Surface
Arm: Powder coated
Screw: Zinc plated
- Tip
Compatible Swivel Caster D80, D100 or D125 see 098S080xxx, 098S100xxx or 098S125xxx
Properties
| Profile Type | Profile Type I |
|---|---|
| Pack Quantity | 10 pieces |
| Model | Steel |

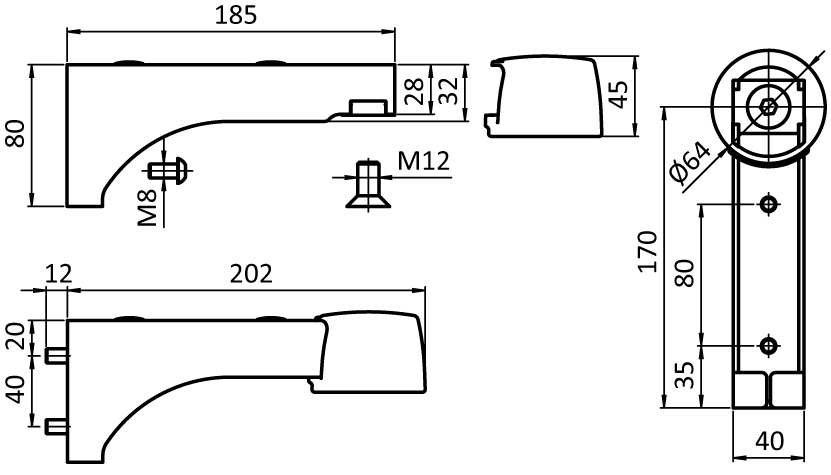

Drawing
From the FATH catalogue (EC-EN, p. 154)
