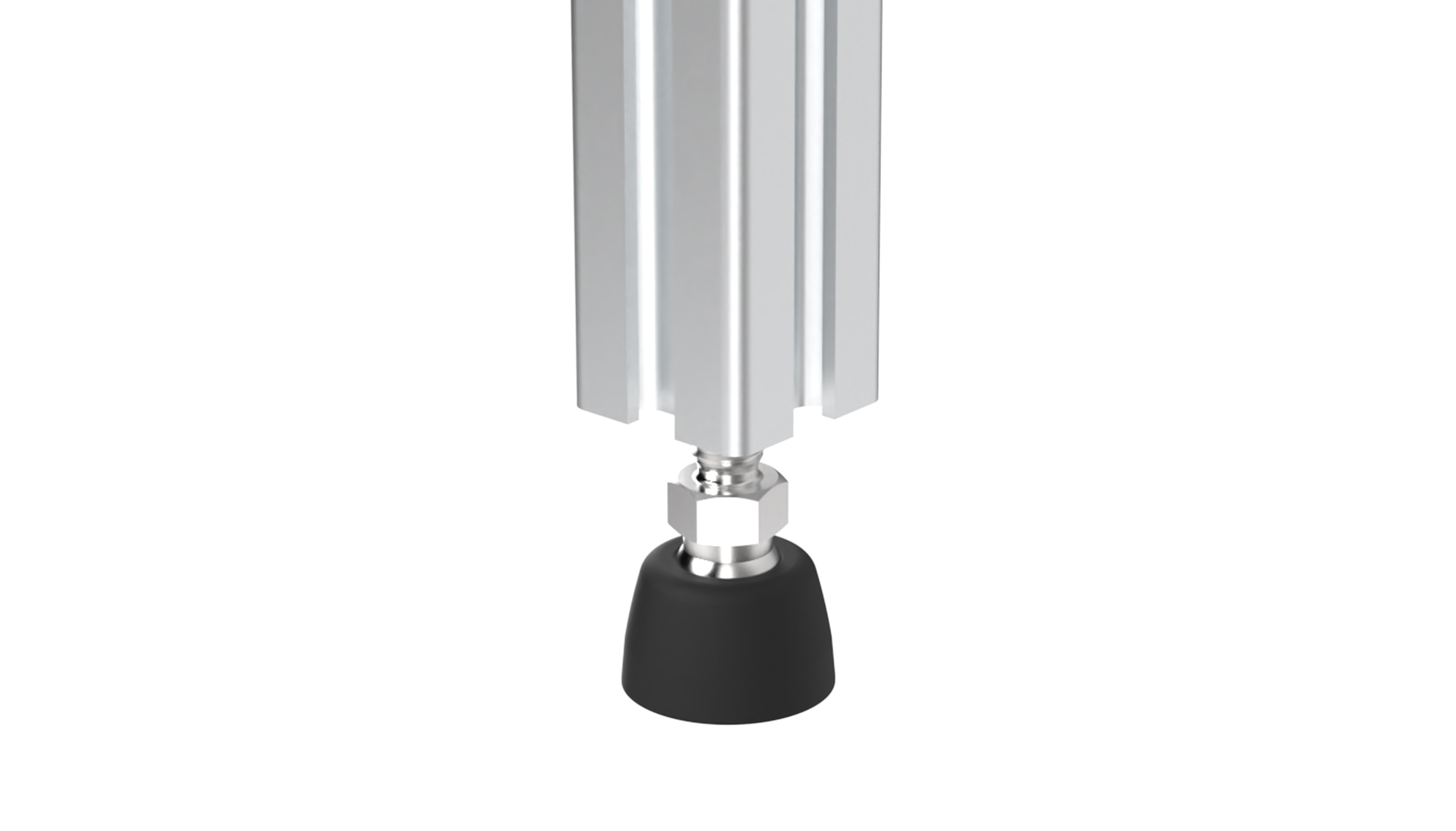

Swivel Foot, PA / SS - Ball Joint 15
Part #: 9D030K10045E · 6 variants
A swiveling leveling foot for strong positioning on uneven floors
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 1 piece
- Weight
- 53 g
- ECLASS
- 23010702
- Category
- Assembled Swivel Feet PA / SS Ball Joint 15
Versions
Select a version — the description and files below follow your selection.

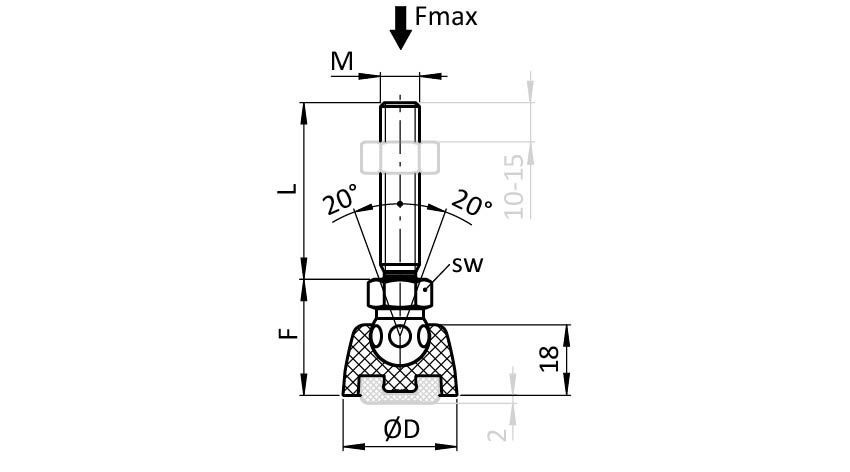

| Part # | Base | Fmax (N) | SW (mm) | D (mm) | F (mm) | M x L (mm) | Version | Add 1 pc to enquiry |
|---|---|---|---|---|---|---|---|---|
| 9D030K10045E✓ Selected | 30 | 4600 | 14 | 29 | 29.5 | M10 x 45 | without anti-slip plate | |
| 9D040K10150E | 40 | 4600 | 14 | 39 | 29.5 | M10 x 150 | without anti-slip plate | |
| 9D050K12066E | 50 | 7550 | 14 | 49 | 29.5 | M12 x 66 | without anti-slip plate | |
| 9D100K16066E | 100 | 8800 | 17 | 99 | 29.5 | M16 x 66 | without anti-slip plate | |
| 9D100K20150E | 100 | 8800 | 22 | 99 | 32.5 | M20 x 150 | without anti-slip plate | |
| 9D100K20200E | 100 | 8800 | 22 | 99 | 32.5 | M20 x 200 | without anti-slip plate |
Description 9D030K10045E
- Color
Base: Black
- Description
A swiveling leveling foot for strong positioning on uneven floors
- Material
Base: Plastic PA, glass ball reinforced
Threaded rod: Stainless steel
- Specials
ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request
Other lengths and other sizes on request
- Surface
Threaded rod: Plain
- Tip
Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq.,
Compatible Anti-Slip Plate see 098DG030 et sq.
Properties
| Product Feature | Stainless |
|---|---|
| Application Area | Machinery & Plant Engineering |
| Pack Quantity | 1 piece |
| Ball Joint | Swiveling range ±20° |
| Model | Plastic PA / Stainless Steel, without bolt-down holes |
