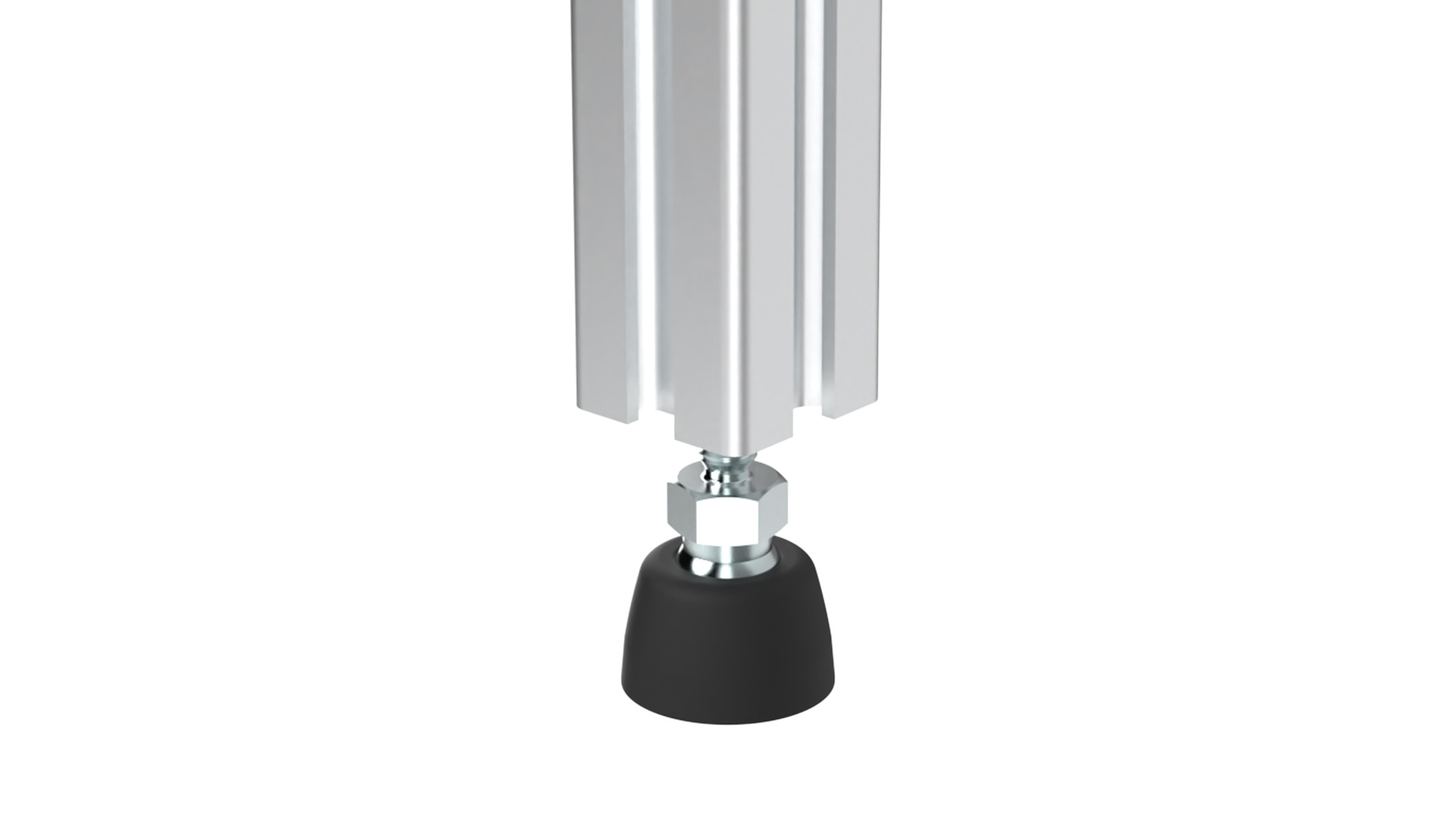

Swivel Foot, PA / ST - Ball Joint 15

Part #: 9D030K08040M · 54 variants

A swiveling leveling foot for strong positioning on uneven floors

Quantity

Price, availability and delivery time — we send one quote for all products.

Question about this product?

Technical questions, custom versions or quantities — write or call us.

+359 888 525 135 [email protected]

Enquire about this product

Pack: 1 piece
Weight: 44 g
ECLASS: 23010702
Category: Assembled Swivel Feet PA / ST Ball Joint 15

Versions

Select a version — the description and files below follow your selection.

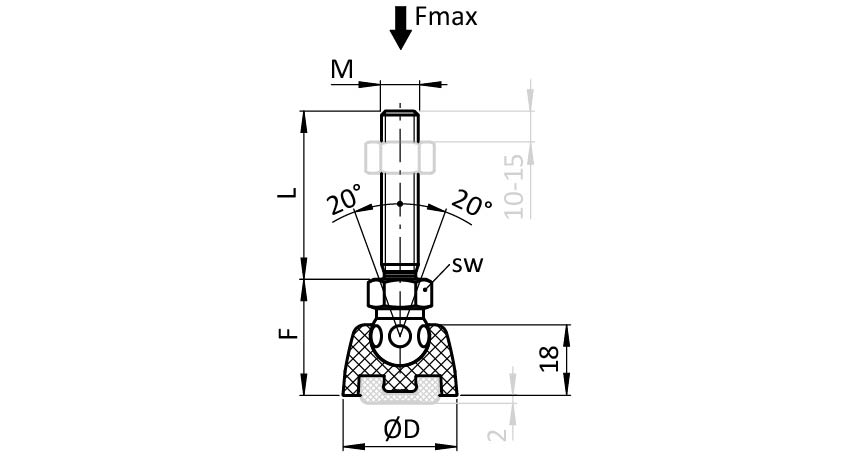

Part #	Base	Fmax (N)	SW (mm)	D (mm)	F (mm)	M x L (mm)	Version
9D030K08040M✓ Selected	30	3430	14	29	29.5	M8 x 40	without anti-slip plate
9D030K08080M	30	3430	14	29	29.5	M8 x 80	without anti-slip plate
9D030K10090M	30	4600	14	29	29.5	M10 x 90	without anti-slip plate
9D030K16066M	30	14200	17	29	29.5	M16 x 66	without anti-slip plate
9D040K08040M	40	3430	14	39	29.5	M8 x 40	without anti-slip plate
9D040K08080M	40	3430	14	39	29.5	M8 x 80	without anti-slip plate
9D040K10045M	40	4600	14	39	29.5	M10 x 45	without anti-slip plate
9D040K10070M	40	4600	14	39	29.5	M10 x 70	without anti-slip plate
9D040K10090M	40	4600	14	39	29.5	M10 x 90	without anti-slip plate
9D040K12066M	40	7550	14	39	29.5	M12 x 66	without anti-slip plate
9D040K12100M	40	7550	14	39	29.5	M12 x 100	without anti-slip plate
9D040K12125M	40	7550	14	39	29.5	M12 x 125	without anti-slip plate
9D040K16125M	40	8800	17	39	29.5	M16 x 125	without anti-slip plate
9D045K12066M	45	7550	14	44	29.5	M12 x 66	without anti-slip plate
9D050K08025M	50	3430	14	49	29.5	M8 x 25	without anti-slip plate
9D050K10045M	50	4600	14	49	29.5	M10 x 45	without anti-slip plate
9D050K10070M	50	4600	14	49	29.5	M10 x 70	without anti-slip plate
9D050K10125M	50	4600	14	49	29.5	M10 x 125	without anti-slip plate
9D050K10150M	50	4600	14	49	29.5	M10 x 150	without anti-slip plate
9D050K12045M	50	7550	14	49	29.5	M12 x 45	without anti-slip plate
9D050K12066M	50	7550	14	49	29.5	M12 x 66	without anti-slip plate
9D050K12100M	50	7550	14	49	29.5	M12 x 100	without anti-slip plate
9D050K12125M	50	7550	14	49	29.5	M12 x 125	without anti-slip plate
9D050K14066M	50	10880	14	49	29.5	M14 x 66	without anti-slip plate
9D050K14100M	50	10880	14	49	29.5	M14 x 100	without anti-slip plate
9D050K16100M	50	8800	17	49	29.5	M16 x 100	without anti-slip plate
9D050K16200M	50	8800	17	49	29.5	M16 x 200	without anti-slip plate
9D060K08080M	60	3430	14	59	29.5	M8 x 80	without anti-slip plate
9D060K10090M	60	4600	14	59	29.5	M10 x 90	without anti-slip plate
9D060K12066M	60	7550	14	59	29.5	M12 x 66	without anti-slip plate
9D060K12100M	60	7550	14	59	29.5	M12 x 100	without anti-slip plate
9D060K12150M	60	7550	14	59	29.5	M12 x 150	without anti-slip plate
9D060K16066M	60	8800	17	59	29.5	M16 x 66	without anti-slip plate
9D060K16125M	60	8800	17	59	29.5	M16 x 125	without anti-slip plate
9D060K20200M	60	8800	22	59	32.5	M20 x 200	without anti-slip plate
9D060K24125M	60	8800	24	59	32.5	M24 x 125	without anti-slip plate
9D080K10045M	80	4600	14	79	29.5	M10 x 45	without anti-slip plate
9D080K10070M	80	4600	14	79	29.5	M10 x 70	without anti-slip plate
9D080K10090M	80	4600	14	79	29.5	M10 x 90	without anti-slip plate
9D080K12066M	80	7550	14	79	29.5	M12 x 66	without anti-slip plate
9D080K12100M	80	7550	14	79	29.5	M12 x 100	without anti-slip plate
9D080K12125M	80	7550	14	79	29.5	M12 x 125	without anti-slip plate
9D080K12150M	80	7550	14	79	29.5	M12 x 150	without anti-slip plate
9D080K16066M	80	8800	14	79	29.5	M16 x 66	without anti-slip plate
9D080K16100M	80	8800	17	79	29.5	M16 x 100	without anti-slip plate
9D080K16125M	80	8800	17	79	29.5	M16 x 125	without anti-slip plate
9D080K16150M	80	8800	17	79	29.5	M16 x 150	without anti-slip plate
9D080K20100M	80	8800	22	79	32.5	M20 x 100	without anti-slip plate
9D080K20200M	80	8800	22	79	32.5	M20 x 200	without anti-slip plate
9D100K10045M	100	4600	14	99	29.5	M10 x 45	without anti-slip plate
9D100K12150M	100	7550	14	99	29.5	M12 x 150	without anti-slip plate
9D100K16100M	100	8800	17	99	29.5	M16 x 100	without anti-slip plate
9D100K16200M	100	8800	17	99	29.5	M16 x 200	without anti-slip plate
9D100K20150M	100	8800	22	99	32.5	M20 x 150	without anti-slip plate

Description 9D030K08040M

Color

Base: Black

Description

A swiveling leveling foot for strong positioning on uneven floors

Material

Base: Plastic PA, glass ball reinforced

Threaded rod: Steel

Specials

ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request

Other lengths and other sizes on request

Surface

Threaded rod: Zinc plated

Tip

Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq.,

Compatible Anti-Slip Plate see 098DG030 et sq.

Properties

Application Area	Machinery & Plant Engineering
Pack Quantity	1 piece
Ball Joint	Swiveling range ±20°
Model	Plastic PA / Steel, without bolt-down holes
