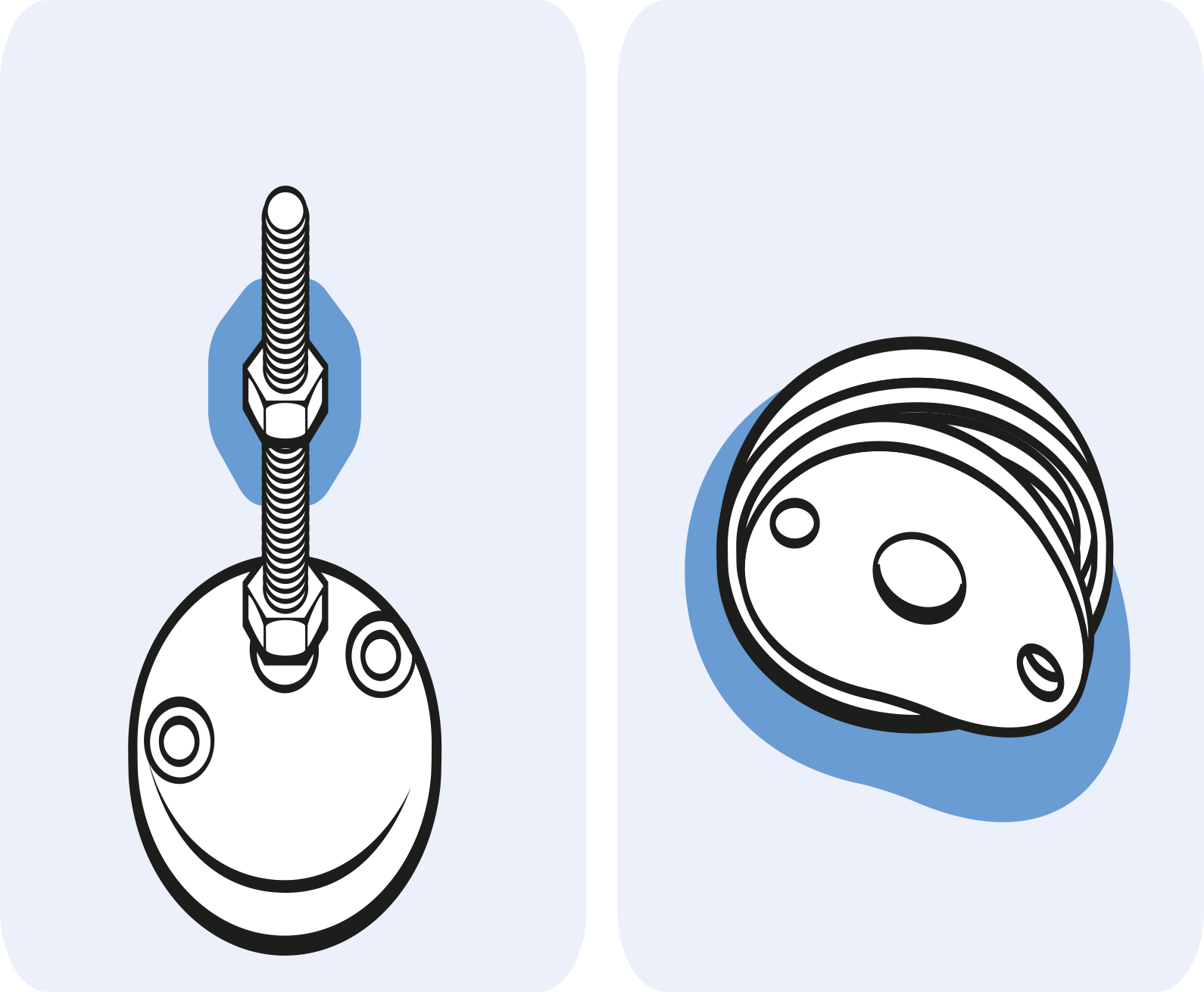

Swivel Foot, PA / ST - BDH - Ball Joint 15
Part #: 9D080KB08080M · 21 variants
A swiveling leveling foot which can be fixed to the floor
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 1 piece
- Weight
- 95 g
- ECLASS
- 23010702
- Category
- Assembled Swivel Feet PA / ST Ball Joint 15
Versions
Select a version — the description and files below follow your selection.

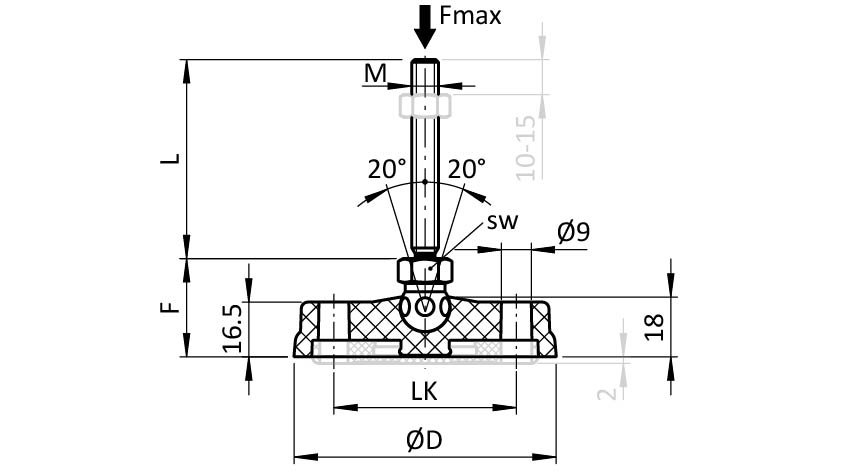

| Part # | Base | Fmax (N) | SW (mm) | D (mm) | F (mm) | M x L (mm) | Version | LK (mm) | Add 1 pc to enquiry |
|---|---|---|---|---|---|---|---|---|---|
| 9D080KB08080M✓ Selected | 80 | 3430 | 14 | 79 | 29.5 | M8 x 80 | without anti-slip plate | 55 | |
| 9D080KB10070M | 80 | 4600 | 14 | 79 | 29.5 | M10 x 70 | without anti-slip plate | 55 | |
| 9D080KB12066M | 80 | 7550 | 14 | 79 | 29.5 | M12 x 66 | without anti-slip plate | 55 | |
| 9D080KB12100M | 80 | 7550 | 14 | 79 | 29.5 | M12 x 100 | without anti-slip plate | 55 | |
| 9D080KB12125M | 80 | 7550 | 14 | 79 | 29.5 | M12 x 125 | without anti-slip plate | 55 | |
| 9D080KB16066M | 80 | 8800 | 17 | 79 | 29.5 | M16 x 66 | without anti-slip plate | 55 | |
| 9D080KB16100M | 80 | 8800 | 17 | 79 | 29.5 | M16 x 100 | without anti-slip plate | 55 | |
| 9D080KB16150M | 80 | 8800 | 17 | 79 | 29.5 | M16 x 150 | without anti-slip plate | 55 | |
| 9D080KB16200M | 80 | 8800 | 17 | 79 | 29.5 | M16 x 200 | without anti-slip plate | 55 | |
| 9D080KB20200M | 80 | 8800 | 22 | 79 | 32.5 | M20 x 200 | without anti-slip plate | 55 | |
| 9D080KB20250M | 80 | 8800 | 22 | 79 | 32.5 | M20 x 250 | without anti-slip plate | 55 | |
| 9D080KBZ12066M | *80 | 7550 | 14 | 79 | 29.5 | M12 x 66 | without anti-slip plate | 55 | |
| 9D080KBZ12150M | *80 | 7550 | 14 | 79 | 29.5 | M12 x 150 | without anti-slip plate | 55 | |
| 9D080KBZ14100M | *80 | 8800 | 14 | 79 | 29.5 | M14 x 100 | without anti-slip plate | 55 | |
| 9D080KBZ16066M | *80 | 8800 | 17 | 79 | 29.5 | M16 x 66 | without anti-slip plate | 55 | |
| 9D080KBZ16125M | *80 | 8800 | 17 | 79 | 29.5 | M16 x 125 | without anti-slip plate | 55 | |
| 9D100KB16125M | 100 | 8800 | 17 | 99 | 29.5 | M16 x 125 | without anti-slip plate | 74 | |
| 9D100KB16150M | 100 | 8800 | 17 | 99 | 29.5 | M16 x 150 | without anti-slip plate | 74 | |
| 9D100KBZ12125M | *100 | 7550 | 14 | 99 | 29.5 | M12 x 125 | without anti-slip plate | 74 | |
| 9D100KBZ16150M | *100 | 8800 | 17 | 99 | 29.5 | M16 x 150 | without anti-slip plate | 74 | |
| 9D100KBZ20200M | *100 | 8800 | 22 | 99 | 32.5 | M20 x 200 | without anti-slip plate | 74 |
Description 9D080KB08080M
- Color
Base: Black
- Description
A swiveling leveling foot which can be fixed to the floor
- Material
Base: Plastic PA, glass ball reinforced
Threaded rod: Steel
- Specials
ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request
Other lengths and other sizes on request
- Surface
Threaded rod: Zinc plated
- Tip
Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq.,
Compatible Anti-Slip Plate see 098DG030 et sq., *Bolt-down holes closed
Properties
| Application Area | Machinery & Plant Engineering |
|---|---|
| Pack Quantity | 1 piece |
| Ball Joint | Swiveling range ±20° |
| Model | Plastic PA / Steel, with bolt-down holes |
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
Matching products
Referenced in the description — nuts, plates, caps, assembly sets.
