FATH
Swivel Foot PA, / ST - BDH - Ball Joint 22
Part #: 9C100KBZ16150M

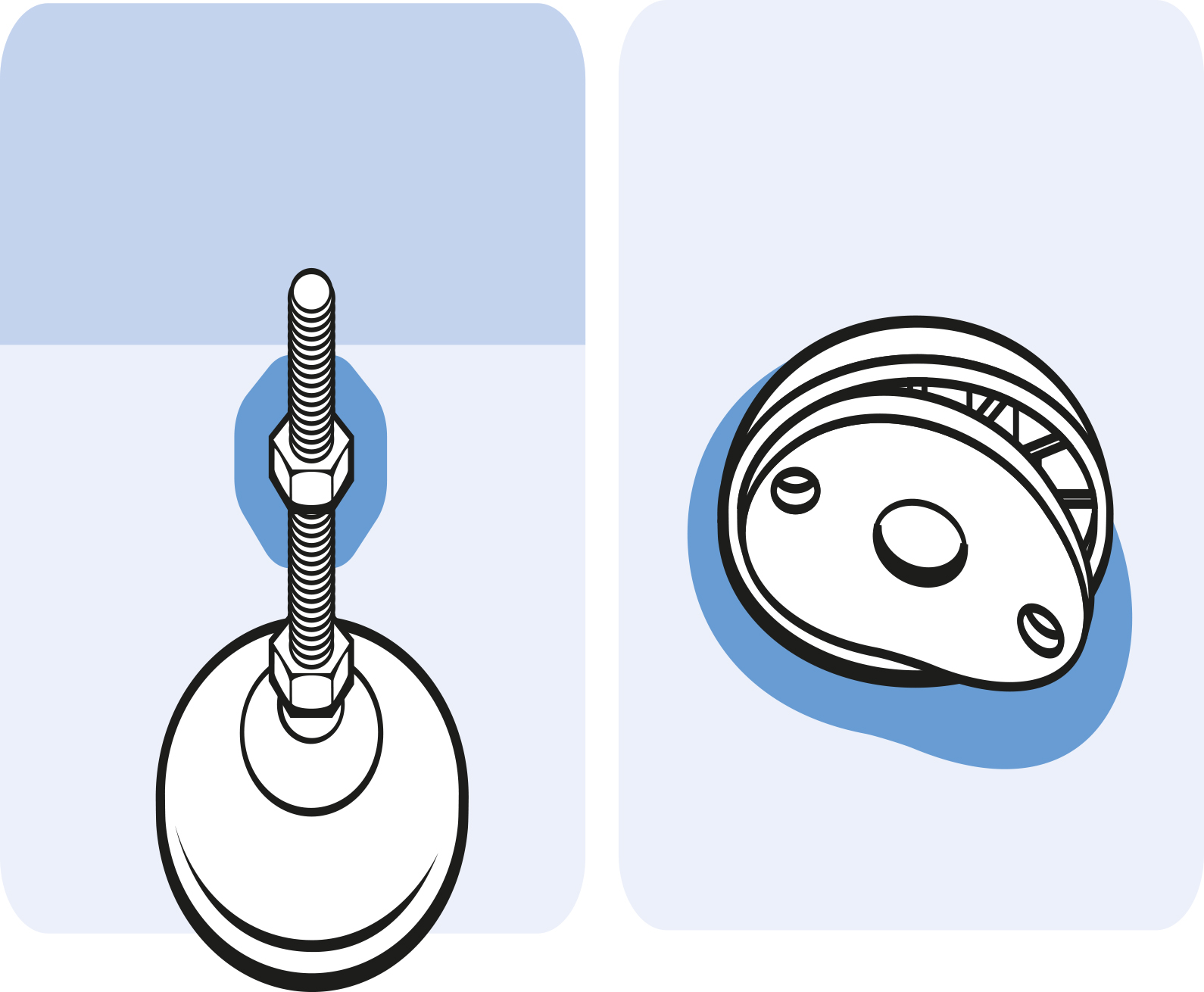

A swiveling leveling foot which can be fixed to the floor
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 1 piece
- Weight
- 309 g
- ECLASS
- 23010702
- Category
- Assembled Swivel Feet PA / ST Ball Joint 22
Description 9C100KBZ16150M
- Color
Base: Black
- Description
A swiveling leveling foot which can be fixed to the floor
- Material
Base: Plastic PA, glass ball reinforced
Threaded rod: Steel
- Specials
ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request
Stainless steel, other lengths and other sizes on request
- Surface
Threaded rod: Zinc plated
- Tip
Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq.,
Compatible Anti-Slip Plate see 098DG030 et sq.
- Tip 2
*Bolt-down holes closed
Properties
| Application Area | Machinery & Plant Engineering |
|---|---|
| Pack Quantity | 1 piece |

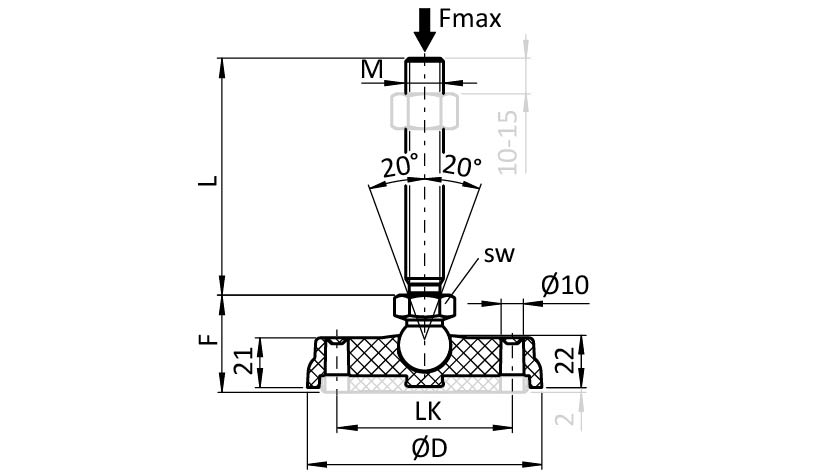

| Ball Joint | Swiveling range ±20° |
| Model | Plastic PA / Steel, with bolt-down holes |
