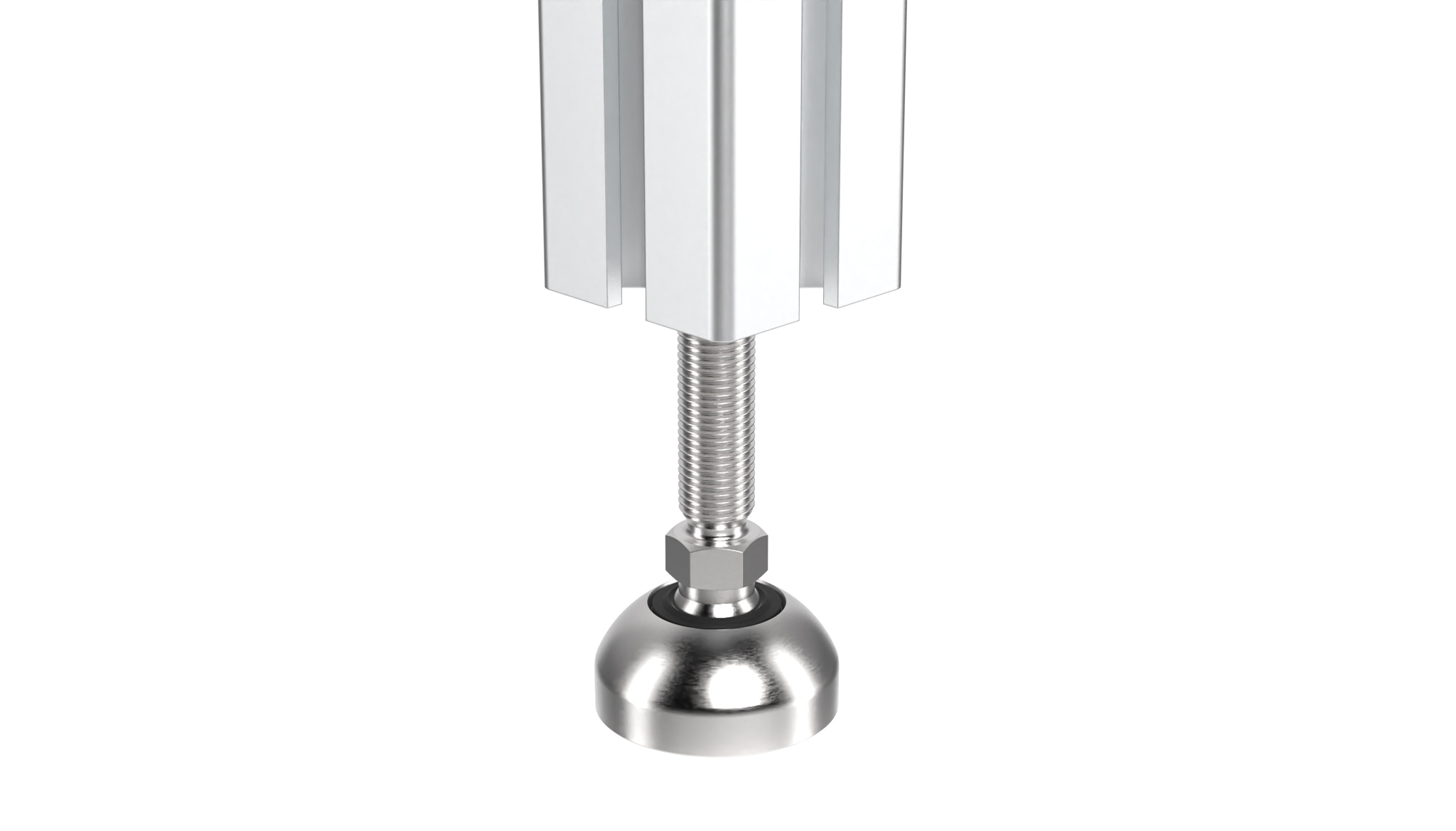

Swivel Foot, SS / SS - Ball Joint 15
Part #: 9D040E12045E · 3 variants
A swiveling leveling foot for strong positioning on uneven floors
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 1 piece
- Weight
- 154 g
- ECLASS
- 23010702
- Category
- Assembled Swivel Feet SS / SS Ball Joint 15
Versions
Select a version — the description and files below follow your selection.

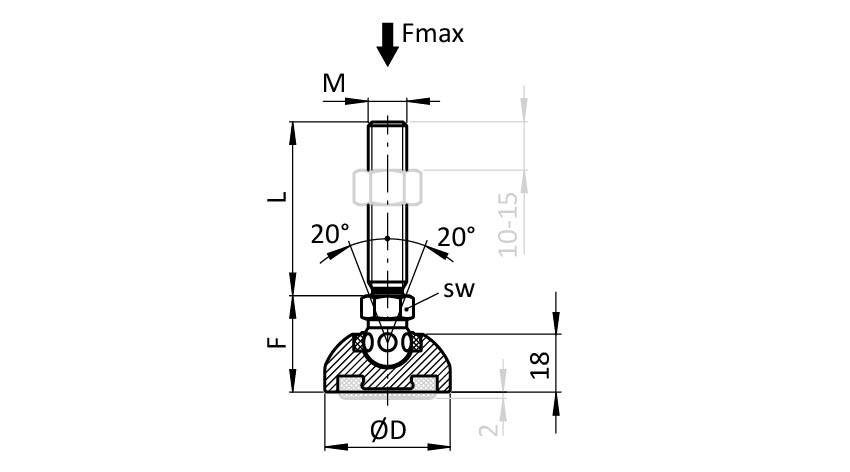

| Part # | Base | Fmax (N) | SW (mm) | D (mm) | F (mm) | M x L (mm) | Version | Add 1 pc to enquiry |
|---|---|---|---|---|---|---|---|---|
| 9D040E12045E✓ Selected | 40 | 7550 | 14 | 39 | 29.5 | M12 x 45 | without anti-slip plate | |
| 9D080E16125E | 80 | 14200 | 17 | 79 | 29.5 | M16 x 125 | without anti-slip plate | |
| 9D120E24150E | 120 | 39200 | 24 | 119 | 32.5 | M24 x 150 | without anti-slip plate |
Description 9D040E12045E
- Description
A swiveling leveling foot for strong positioning on uneven floors
- Material
Base: Stainless steel
Threaded rod: Stainless steel
- Specials
ESD electrostatical discharging, other sizes, other colors, glued anti-slip plate on request
Other lengths and other sizes on request
- Surface
Base: Plain
Threaded rod: Plain
- Tip
Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq.,
Compatible Anti-Slip Plate see 098DG030 et sq.
Properties
| Product Feature | Stainless |
|---|---|
| Application Area | Machinery & Plant Engineering |
| Pack Quantity | 1 piece |
| Ball Joint | Swiveling range ±20° |
| Model | Stainless steel, without bolt-down holes |
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
Matching products
Referenced in the description — nuts, plates, caps, assembly sets.
