System Arm I40L 370 (Set)
Part #: 6FA40NL370S40N08 · 4 variants
Stable pivot arm with a reach of approximately 370 mm and various connection options; pivotable 360°; pre-assembled System arm can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 1 piece
- Weight
- 1986 g
- Category
- System Arms
Versions
Select a version — the description and files below follow your selection.
| Part # | Version | Profile | Fig. | Set | Add 1 pc to enquiry |
|---|---|---|---|---|---|
| 6FA40NL370S40N08✓ Selected | With End Friction Joint | I | ② | Set 2 | |
| 6FDG40NL370S40N08 | With Double Friction Joint | I | ③ | Set 3 | |
| 6FG40NL370S40N08 | With Friction Joint | I | ① | Set 1 | |
| 6FMVNL370S40N08 | With Monitor Mount | I | ④ | Set 4 |
Description 6FA40NL370S40N08
- Color
Arm: Alu color
Housing: Alu color
Cover ring: Gray ≈ RAL 7042
Cover caps: Gray ≈ RAL 7042
Centering plates: Alu color
Monitor mount: Black
- Description

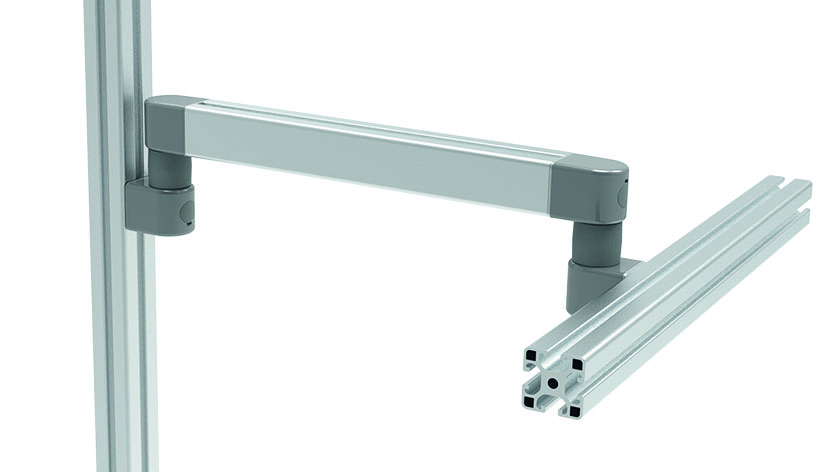

Stable pivot arm with a reach of approximately 370 mm and various connection options; pivotable 360°; pre-assembled
System arm can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)
- Material
Arm: Aluminum
Housing: Aluminum die-cast
Cover ring: Plastic
Inserts: Steel
Friction shaft: Steel
Cover caps: Plastic
Screws: Steel
Washers: Steel
Centering plates: Aluminum die-cast
T-slot nuts: Steel
Monitor mount: Plastic PA, glas fiber reinforced
- Set 1
1 system arm I40L 370 with end friction joint
2 cover caps
2 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side),
2 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side),
2 washers 8-FSt,
2 centering plates,
2 T-slot nuts - slot 8 - M8
- Set 2
1 system arm I40L 370 with end friction joint
1 cover cap
1 screw DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side),
1 screw DIN EN ISO 4762 (DIN 912) - M8 x 25 (for T-slot nut end side),
1 screw DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side),
1 screw DIN EN ISO 4762 (DIN 912) - M8 x 30 (for core hole end side),
2 washers 8-FSt,
2 centering plates,
2 T-slot nuts - slot 8 - M8
- Set 3
1 system arm I40L 370 with double friction joint
2 cover caps
2 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side),
2 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side),
2 washers 8-FSt,
2 centering plates,
2 T-slot nuts - slot 8 - M8
- Set 4
1 system arm I40L 370 with monitor mount
1 cover cap
1 screw DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side),
1 screw DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side),
1 washer 8-FSt,
1 centering plate,
1 T-slot nut - slot 8 - M8
1 assembly set for monitor: 4 screws DIN EN ISO 4762 (DIN 912) - M4 x 12, 4 washers
- Surface
Arm: Anodized
Housing: Powder coated
Screws: Zinc plated
Washers: Zinc plated
Centering plates: Powder coated
T-slot nuts: Zinc plated
Properties
| Profile Type | Profile Type I |
|---|---|
| Application Area | Industrial Work Stations |
| Pack Quantity | 1 piece |
| Model | pre-assembled, profile 40 and up |

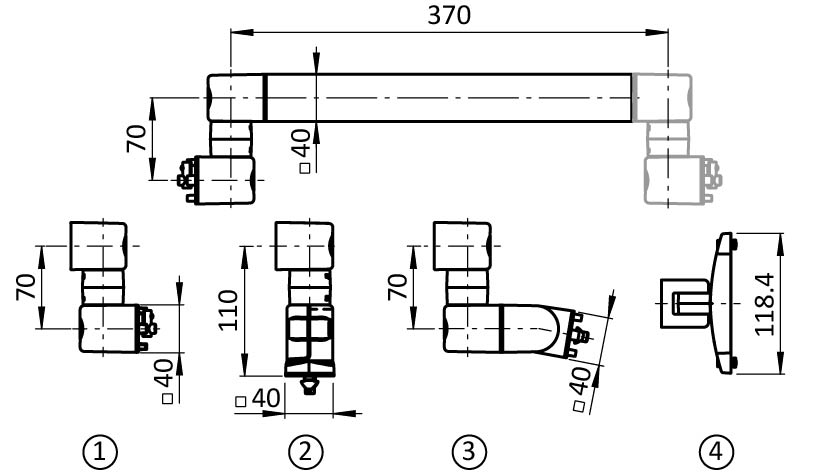

Drawing
From the FATH catalogue (EC-EN, p. 710)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
