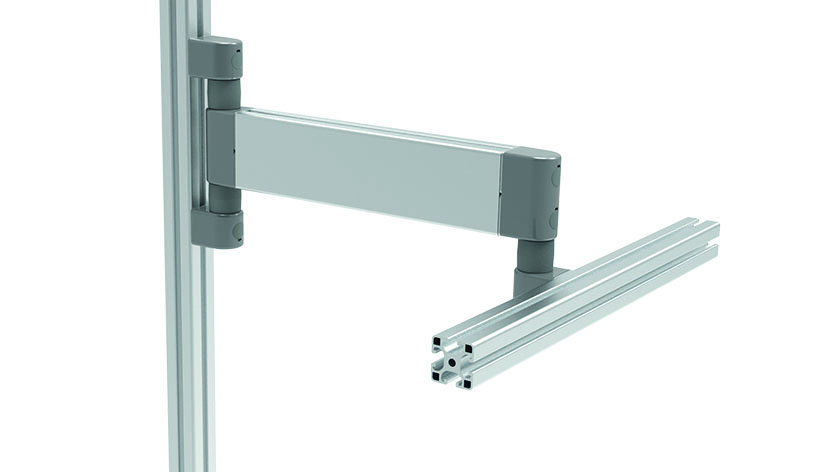

System Arm I80H 370 (Set)
Part #: 6FA80NH370S80N08 · 3 variants
Stable pivot arm with a reach of approximately 370 mm and various connection options; pivotable 360°; pre-assembled System arm can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 1 piece
- Weight
- 3325.8 g
- Category
- System Arms
Versions
Select a version — the description and files below follow your selection.
| Part # | Version | Profile | Fig. | Set | Add 1 pc to enquiry |
|---|---|---|---|---|---|
| 6FA80NH370S80N08✓ Selected | With End Friction Joint | I | ② | Set 2 | |
| 6FDG80NH370S80N08 | With Double Friction Joint | I | ③ | Set 3 | |
| 6FG80NH370S80N08 | With Friction Joint | I | ① | Set 1 |
Description 6FA80NH370S80N08
- Color
Arm: Alu color
Housing: Alu color
Cover ring: Gray ≈ RAL 7042
Cover caps: Gray ≈ RAL 7042
Centering plates: Alu color
- Description
Stable pivot arm with a reach of approximately 370 mm and various connection options; pivotable 360°; pre-assembled

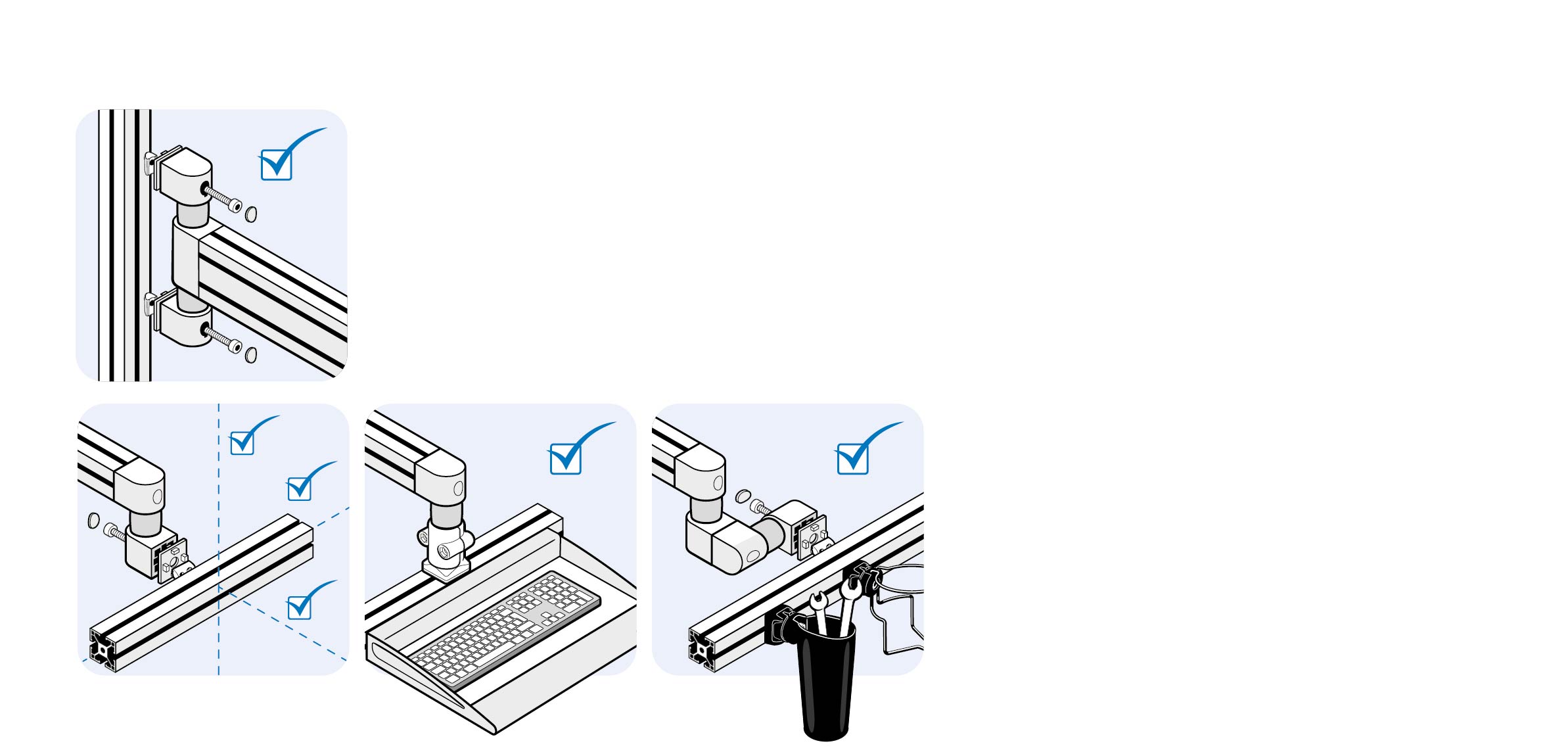

System arm can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)
- Material
Arm: Aluminum
Housing: Aluminum die-cast
Cover ring: Plastic
Inserts: Steel
Friction shaft: Steel
Cover caps: Plastic
Screws: Steel
Washers: Steel
Centering plates: Aluminum die-cast
T-slot nuts: Steel
- Set 1
1 system arm I80H 370 with friction joint
3 cover caps
3 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side),
3 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side),
3 washers 8-FSt,
3 centering plates,
3 T-slot nuts - slot 8 - M8
- Set 2
1 system arm I80H 370 with end friction joint
2 cover cap
2 screw DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side),
1 screw DIN EN ISO 4762 (DIN 912) - M8 x 25 (for T-slot nut end side),
2 screw DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side),
1 screw DIN EN ISO 4762 (DIN 912) - M8 x 30 (for core hole end side),
3 washers 8-FSt,
3 centering plates,
3 T-slot nuts - slot 8 - M8
- Set 3
1 system arm I80H 370 with double friction joint
3 cover caps
3 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side),
3 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side),
3 washers 8-FSt,
3 centering plates,
3 T-slot nuts - slot 8 - M8
- Surface
Arm: Anodized
Housing: Powder coated
Screws: Zinc plated
Washers: Zinc plated
Centering plates: Powder coated
T-slot nuts: Zinc plated
Properties
| Profile Type | Profile Type I |
|---|---|
| Application Area | Industrial Work Stations |
| Pack Quantity | 1 piece |
| Model | pre-assembled, profile 40 and up |

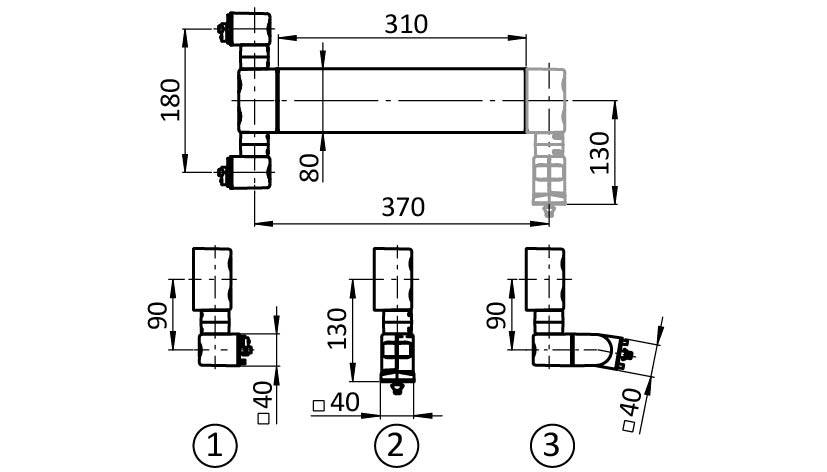

Drawing
From the FATH catalogue (EC-EN, p. 714)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
