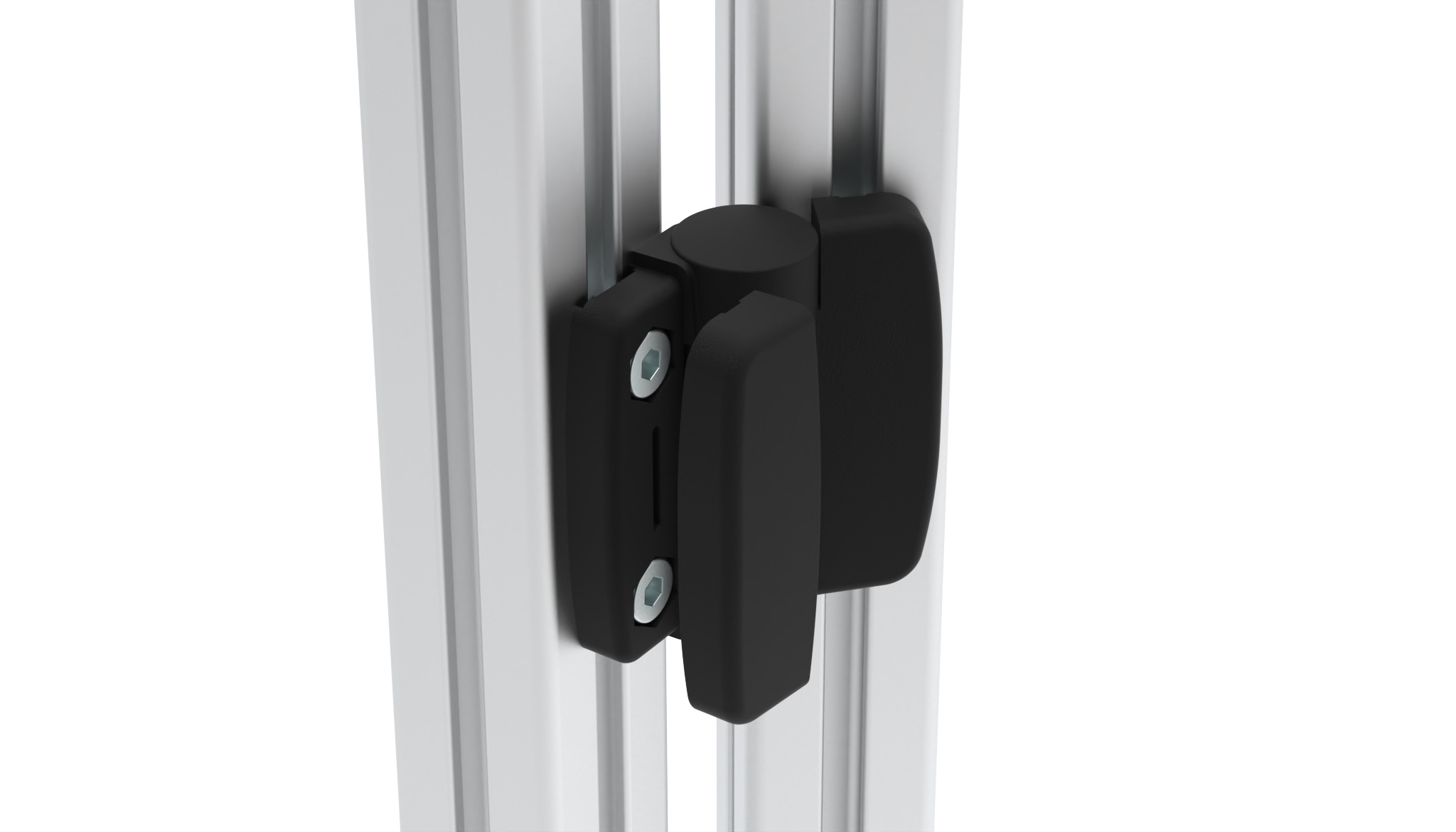

System Hinge 30 with Adjustable Friction
Part #: 095SF3030A00 · 3 variants
To hinge panels or aluminum profiles; to hold a door open at an angle at any angle; infinitely variable from 0 - 5 Nm hinge moment; also supports lightweight doors
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 51.7 g
- ECLASS
- 23219090
- Category
- System Hinges · System Hinges
Versions
Select a version — the description and files below follow your selection.
| Part # | Slot N (mm) | FRmax (N) | FAmax (N) | Friction Torque (Nm) | Add 1 pc to enquiry |
|---|---|---|---|---|---|
| 095SF3030A00✓ Selected | - | 400 | 325 | 0-5 | |
| 095SF3030A06 | 6 | 400 | 325 | 0-5 | |
| 095SF3030A08 | 8 | 400 | 325 | 0-5 |
Description 095SF3030A00
- Color
Black
- Description
To hinge panels or aluminum profiles; to hold a door open at an angle at any angle; infinitely variable from 0 - 5 Nm hinge moment; also supports lightweight doors

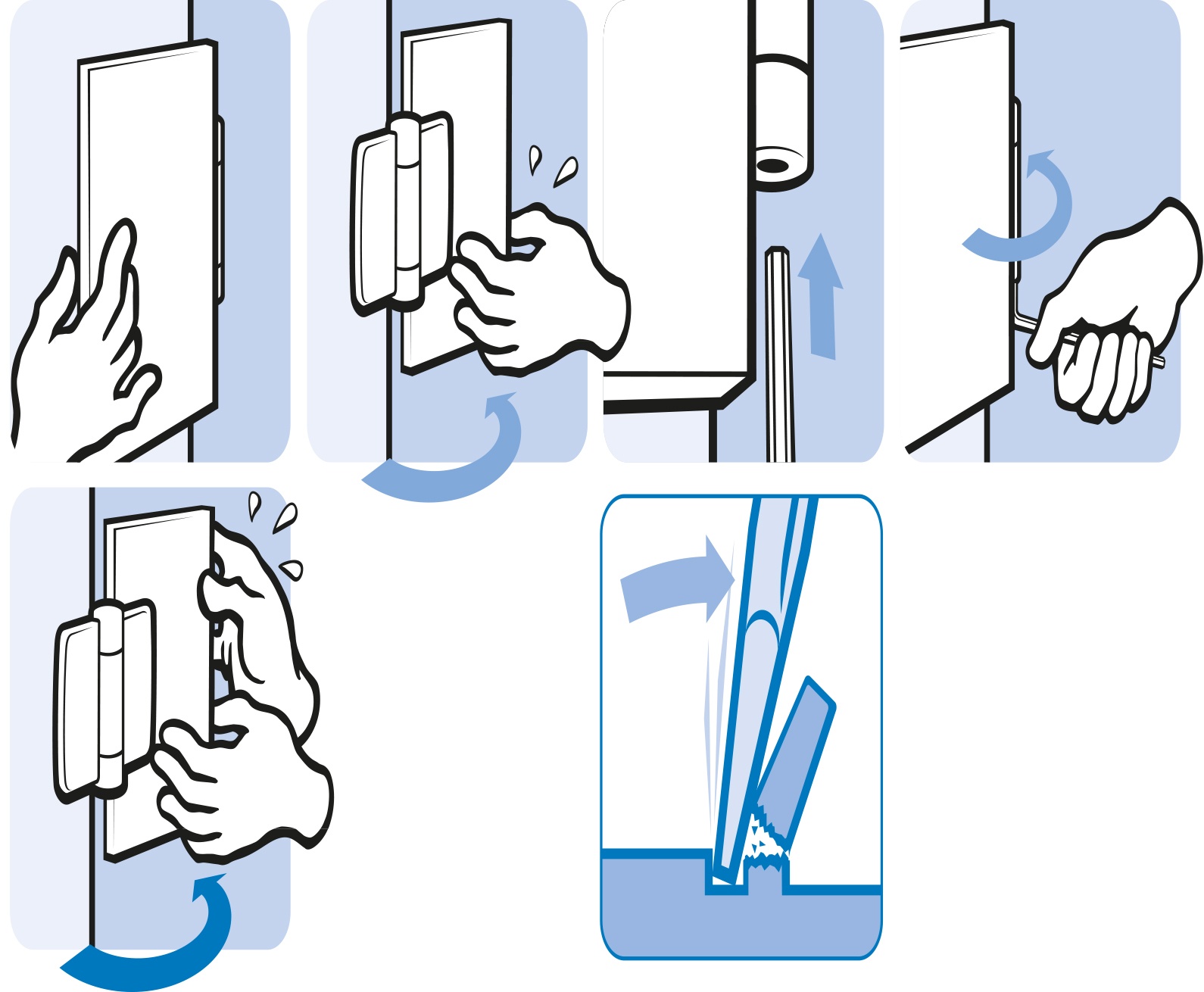

- Fastening
From the front using M6 screws, from the back using hexagon nuts and bolts
- Material
Wings: Plastic PA, glass fiber reinforced
Bolt: Stainless steel
- Specials
ESD electrostatical discharging, other sizes, other colors on request
- Tip
Combinations of different wing sizes are available on request
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Application Area | Machinery & Plant Engineering |
| Pack Quantity | 10 pieces |
| Model | With cover caps |

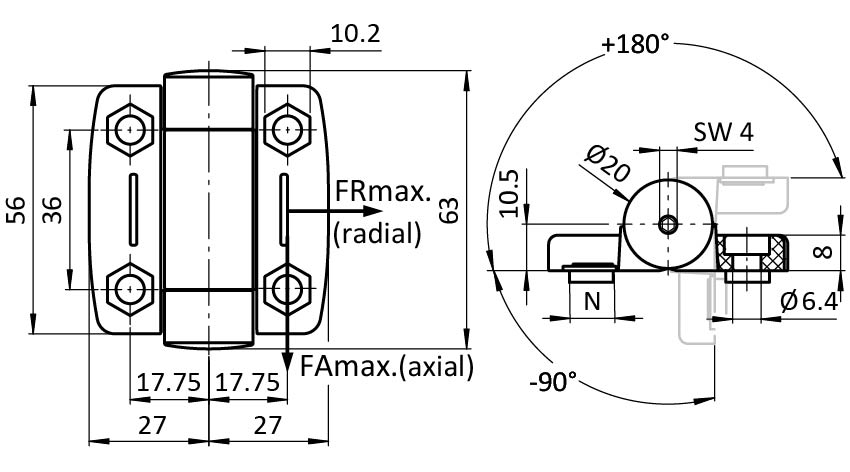

Drawing
From the FATH catalogue (EC-EN, p. 196)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
