FATH

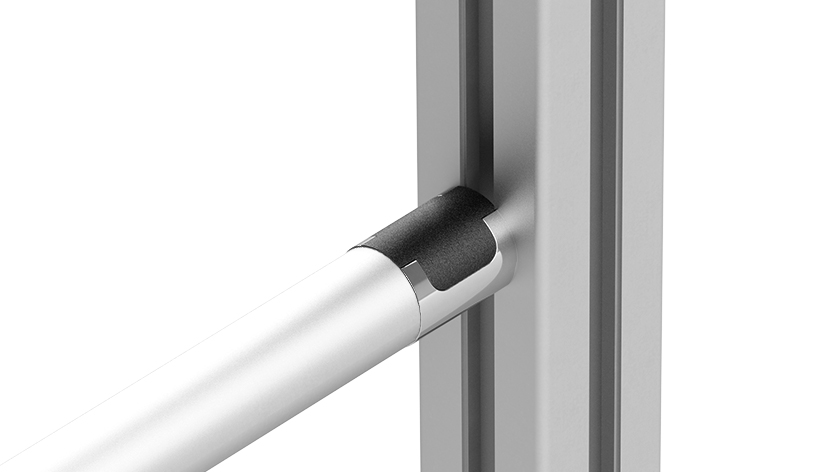

T-Connector D28 - Slot 10 (Set)
Part #: 099RV28TS01
To connect a tubular frame profile with Ø 28 mm outer diameter with a slot 10 aluminum profile
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 62 g
- ECLASS
- 23360290
- Category
- Connectors D28, Tubular Frame Components
Description 099RV28TS01
- Description
To connect a tubular frame profile with Ø 28 mm outer diameter with a slot 10 aluminum profile
- Material
Connector: Aluminum die-cast
Cover cap: Plastic PA
Assembly set: Steel
- Set
1 T-connector D28 - slot 10,
1 cover cap,
1 self-tapping screw S8 x 25 - hexalobular socket T40,
1 flange nut M8,
1 hammer head screw - Nut 10 - M8 x 20
- Surface
Connector: Plain
Cover cap: Black
Assembly set: Zinc plated
Properties
| Profile Type | Profile Type B |
|---|---|
| Slot Size | Slot 10 |
| Modular Dimension | Modular Dimension D28 |
| Profile Form | Round Tubular Profiles |
| Pack Quantity | 10 pieces |
| Model | For tubular frame profiles |

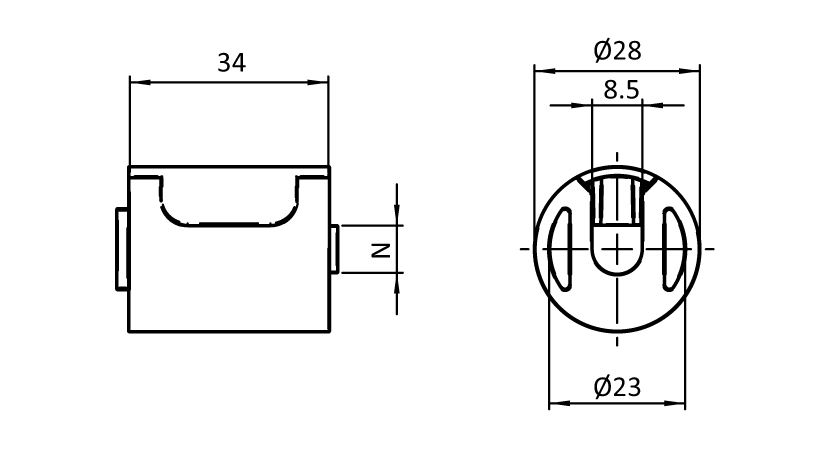

Drawing
From the FATH catalogue (EC-EN, p. 1060)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
