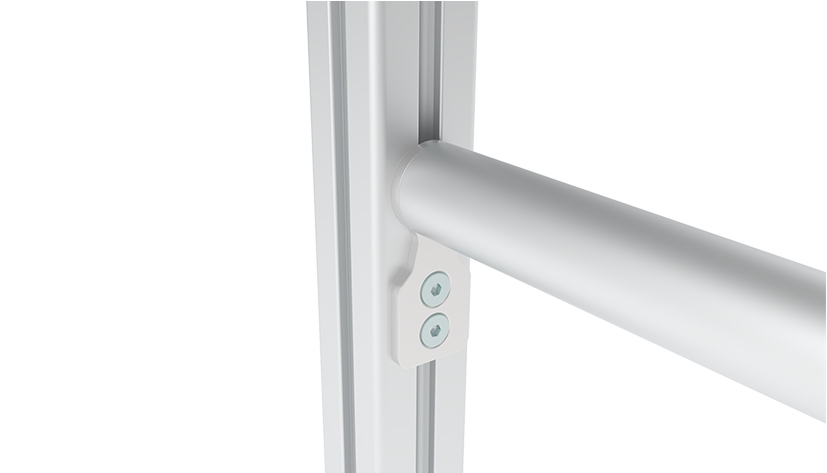

T-Connector Plate D30 (Set)
Part #: 093VAD30V · 2 variants
To connect a tubular frame profile with Ø 30 mm outer diameter with an aluminum profile at right angles; Screw connetion to the core hole M6 of the tubular frame profile Ø 30 mm or to the threaded sleeve AL D30 M6 for tubular frame profiles
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 71 g
- ECLASS
- 23360290
- Category
- Connectors D30
Versions
Select a version — the description and files below follow your selection.
| Part # | Profile | Fig. | Slot N (mm) | Set | Add 1 pc to enquiry |
|---|---|---|---|---|---|
| 093VAD30V✓ Selected | I | ② | 8 | Set 2 | |
| 093VAD30VS01 | I | ① | 6 | Set 1 |
Description 093VAD30V
- Description
To connect a tubular frame profile with Ø 30 mm outer diameter with an aluminum profile at right angles;
Screw connetion to the core hole M6 of the tubular frame profile Ø 30 mm or to the threaded sleeve AL D30 M6 for tubular frame profiles
- Material
Steel
- Set 1
1 T-connector plate,
2 T-slot nuts - slot 6 - M6,
2 screws DIN EN ISO 10642 (DIN 7991) - M6 x 12,
1 screw DIN EN ISO 10642 (DIN 7991) - M6 x 20
- Set 2
1 T-connector plate,
1 double T-slot nut - slot 8 - 2x M6,
2 screws DIN EN ISO 10642 (DIN 7991) - M6 x 14,
1 screw DIN EN ISO 10642 (DIN 7991) - M6 x 20
- Surface
Zinc plated
Properties
| Profile Type | Profile Type I |
|---|---|
| Slot Size | Slot 8 |
| Modular Dimension | Modular Dimension D30 |
| Profile Form | Round Tubular Profiles |
| Pack Quantity | 10 pieces |
| Model | For tubular frame profiles |

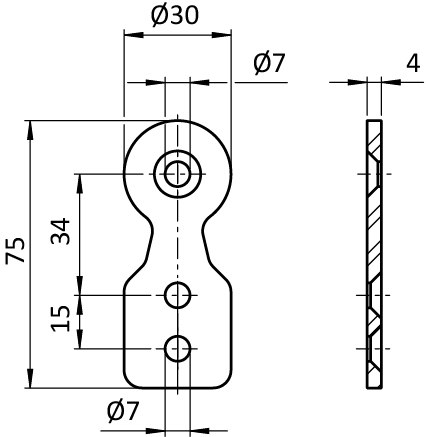

Drawing
From the FATH catalogue (EC-EN, p. 1101)
