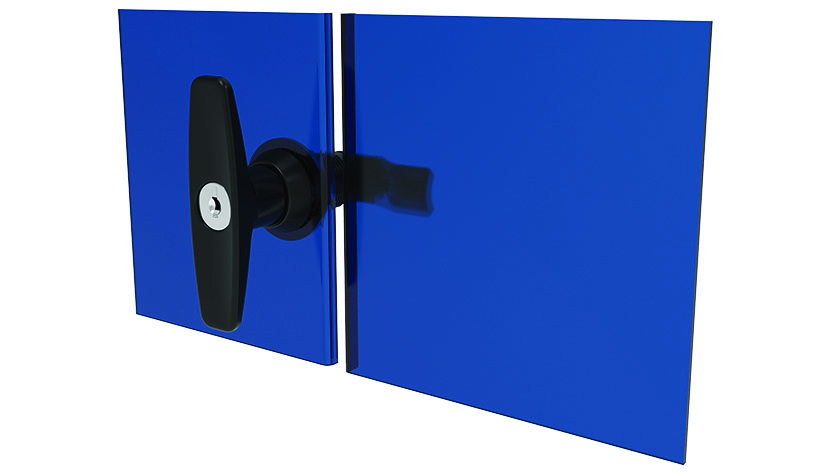

T-handle Compression Latch, 22.5 / 32
Part #: 0850142 · 2 variants
For easy, secure and compressive latching and locking of doors and flaps; Wide range of inserts, cams and accessories
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 196.8 g
- ECLASS
- 23199090
- Category
- Quarter Turn Compression Latches
Versions
Select a version — the description and files below follow your selection.
Description 0850142
- Color
T-handle Insert: Black
Housing: Black
Seals: Black
- Description
For easy, secure and compressive latching and locking of doors and flaps;
Wide range of inserts, cams and accessories
- Material
T-handle insert: Zinc die-cast
Shaft: Steel
Retaining spring: Stainless steel SS316
Housing: Zinc die-cast
Cam: Steel
Seals: Rubber NBR
Washer: Steel
Nut: Zinc die-cast
Screw: Steel
- Surface
T-handle insert: Powder coated
Shaft: Zinc plated
Housing: Powder coated
Washer: Zinc plated
Nut: Zinc plated
Screw: Zinc plated
Properties
| Application Area | Machinery & Plant Engineering |
|---|---|
| Pack Quantity | 10 pieces |

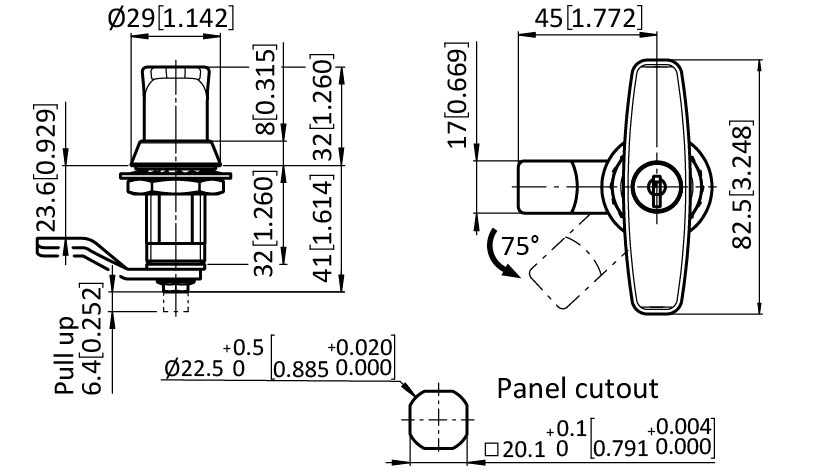

Drawing
From the FATH catalogue (IH-US-EN, p. 58)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
