FATH
T-slot Slider (Set)
Part #: 093ST4040N08

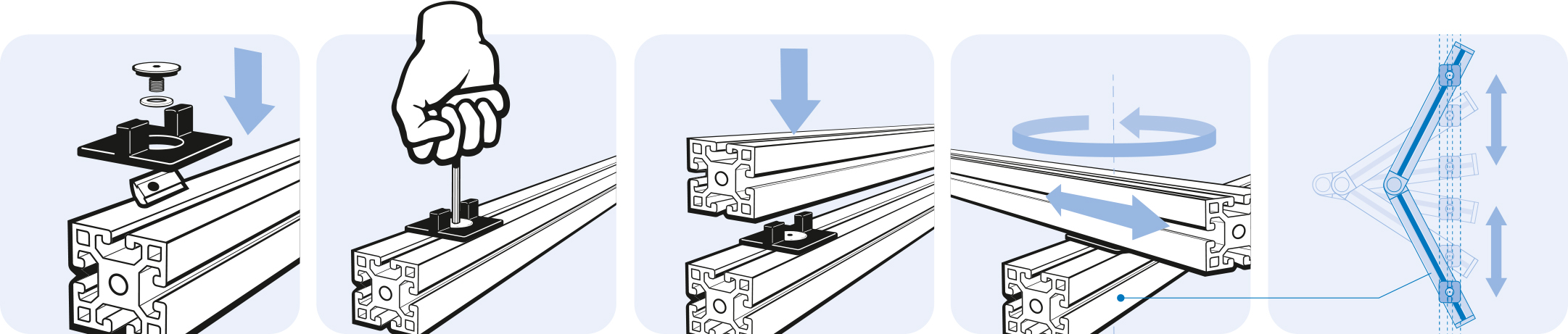

For the assembly of folding doors with simultaneous rotating and sliding movement; without a T-slot also suitable for side to end mounting into the core hole for e.g. keyboard pull outs
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 25 g
- ECLASS
- 23360290
- Category
- Folding Door Elements
Description 093ST4040N08
- Color
T-slot slider: black
- Description
For the assembly of folding doors with simultaneous rotating and sliding movement; without a T-slot also suitable for side to end mounting into the core hole for e.g. keyboard pull outs
- Material
T-slot slider: Plastic POM
Special screw: Steel
Washer: Stainless steel
T-slot nut: Steel
- Set
1 T-slot slider,
1 special screw - M8 x 13,
1 washer DIN 988,
1 T-slot nut - slot 8 - M8
- Specials
Other colors on request
- Surface
Special screw: Zinc plated
Washer: Plain
T-slot nut: Zinc plated
- Tip
For gap distance 5 mm
Properties
| Profile Type | Profile Type I |
|---|---|
| Pack Quantity | 10 pieces |
| Model | Slot 8 |

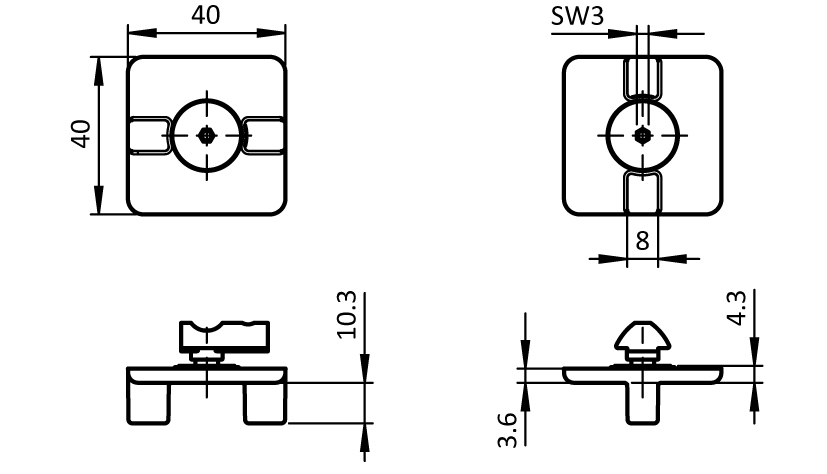

Drawing
From the FATH catalogue (EC-EN, p. 809)
