Threaded Bush for Rectangular Tubes 50 x 30
Part #: 098VE50302010 · 2 variants

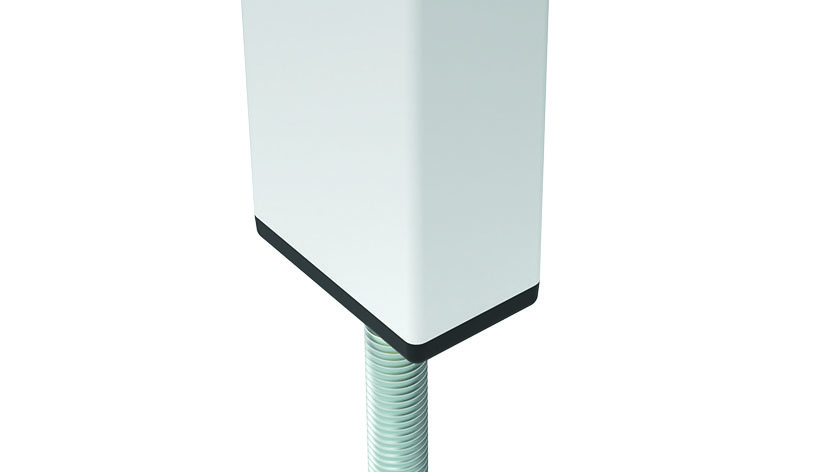

To fit leveling feet to rectangular tubes
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 74 g
- ECLASS
- 23111190
- Category
- Threaded Bushes for Rectangular Tubes
Versions
Select a version — the description and files below follow your selection.

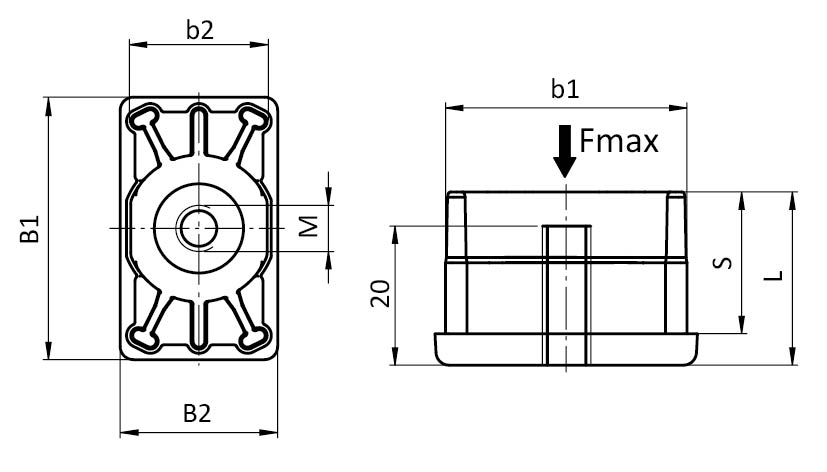

| Part # | Fmax (N) | Version | L (mm) | M | S (mm) | Square Tube (mm) | b1 (mm) | b2 (mm) | B1 (mm) | B2 (mm) | Add 1 pc to enquiry |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 098VE50302010✓ Selected | 4900 | 50 x 30, R2.5 | 33 | M10 | 27 | 50 x 30 x 2.0 | 46.0 | 26.0 | 50 | 30 | |
| 098VE50302014 | 4900 | 50 x 30, R2.5 | 33 | M14 | 27 | 50 x 30 x 2.0 | 46.0 | 26.0 | 50 | 30 |
Description 098VE50302010
- Color
Black
- Description
To fit leveling feet to rectangular tubes
- Material
Bush: Plastic PA, glass fiber reinforced
Threaded insert: Nickel plated brass
- Specials
ESD electrostatical discharging, other sizes, other colors on request
Properties
| Application Area | Machinery & Plant Engineering |
|---|---|
| Pack Quantity | 10 pieces |
| Model | Plastic PA, with brass threaded insert |
