FATH
Threaded Bush for Round Tubes 38
Part #: 098VR381510 · 4 variants

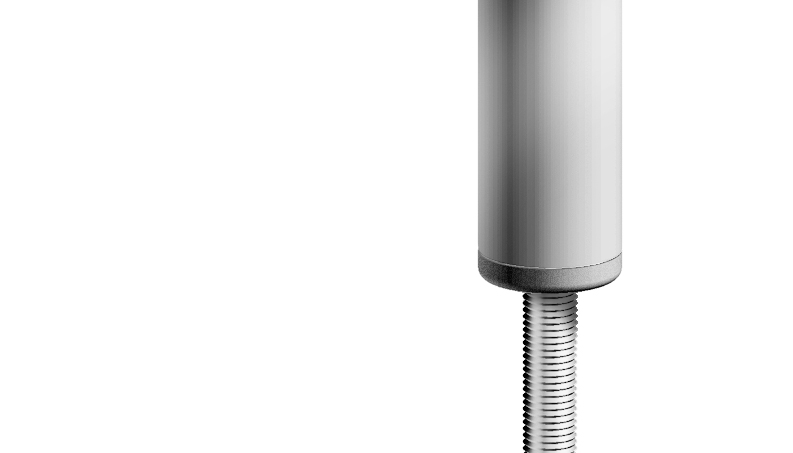

To fit leveling feet to round, non-threaded tubes
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 76 g
- ECLASS
- 23111190
- Category
- Threaded Bushes for Round Tubes
Versions
Select a version — the description and files below follow your selection.
| Part # | Fmax (N) | B (mm) | L (mm) | M | S (mm) | b (mm) | Round Tube (mm) | Add 1 pc to enquiry |
|---|---|---|---|---|---|---|---|---|
| 098VR381510✓ Selected | 5880 | 38.0 | 43 | M10 | 35 | 35.5 | Ø 38 x 1.5 | |
| 098VR381512 | 5880 | 38.0 | 43 | M12 | 35 | 35.5 | Ø 38 x 1.5 | |
| 098VR381516 | 5880 | 38.0 | 43 | M16 | 35 | 35.5 | Ø 38 x 1.5 | |
| 098VR382012 | 5880 | 38.0 | 43 | M12 | 35 | 34.5 | Ø 38 x 2.0 |
Description 098VR381510
- Color
Black
- Description
To fit leveling feet to round, non-threaded tubes
- Material
Bush: Plastic PA, glass fiber reinforced
Threaded insert: Nickel plated brass
- Specials
ESD electrostatical discharging, other sizes, other colors on request
Properties
| Application Area | Machinery & Plant Engineering |
|---|---|
| Pack Quantity | 10 pieces |
| Model | Plastic PA, with brass threaded insert |

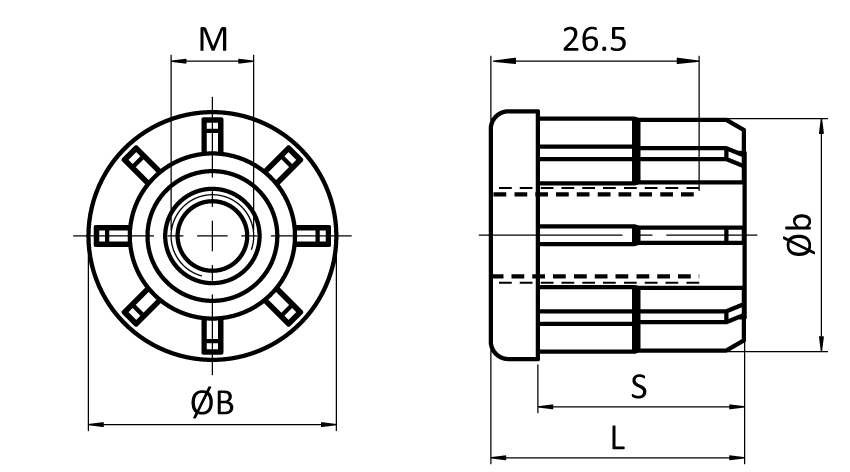

Drawing
From the FATH catalogue (EC-EN, p. 89)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
