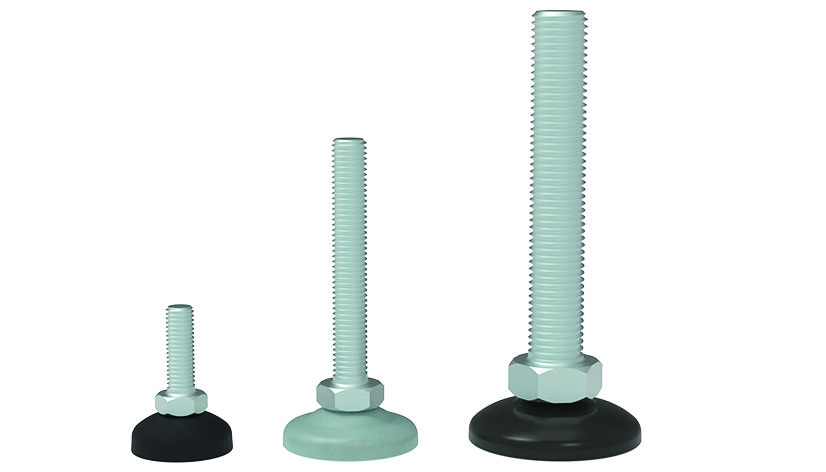

Threaded Rod ST for ECO-Feet
Part #: 098EM08025M · 26 variants
Threaded Rod for ECO Feet
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 100 pieces
- Weight
- 12 g
- ECLASS
- 23010705
- Category
- Threaded Rods, ECO Feet
Versions
Select a version — the description and files below follow your selection.
| Part # | Fmax (N) | SW (mm) | M x L (mm) | Material | K (mm) | Pack Quantity | Add 1 pc to enquiry |
|---|---|---|---|---|---|---|---|
| 098EM08025M✓ Selected | 3430 | 13 | M8 x 25 | Steel | 5.3 | 100 pieces | |
| 098EM08040M | 3430 | 13 | - | Steel | 5.3 | 100 pieces | |
| 098EM08050M | 3430 | 13 | - | Steel | 5.3 | 100 pieces | |
| 098EM08070M | 3430 | 13 | M8 x 70 | Steel | 5.3 | 100 pieces | |
| 098EM08080M | 3430 | 13 | - | Steel | 5.3 | 100 pieces | |
| 098EM08100M | 3430 | 13 | - | Steel | 5.3 | 100 pieces | |
| 098EM08120M | 3430 | 13 | M8 x 120 | Steel | 5.3 | 100 pieces | |
| 098EM10025M | 4600 | 17 | M10 x 25 | Steel | 6.4 | 100 pieces | |
| 098EM10040M | 4600 | 17 | - | Steel | 6.4 | 100 pieces | |
| 098EM10050M | 4600 | 17 | M10 x 50 | Steel | 6.4 | 100 pieces | |
| 098EM10070M | 4600 | 17 | - | Steel | 6.4 | 100 pieces | |
| 098EM10080M | 4600 | 17 | - | Steel | 6.4 | 100 pieces | |
| 098EM10100M | 4600 | 17 | - | Steel | 6.4 | 100 pieces | |
| 098EM10120M | 4600 | 17 | M10 x 120 | Steel | 6.4 | 100 pieces | |
| 098EM12025M | 7550 | 19 | M12 x 25 | Steel | 7.5 | 100 pieces | |
| 098EM12040M | 7550 | 19 | - | Steel | 7.5 | 100 pieces | |
| 098EM12050M | 7550 | 19 | M12 x 50 | Steel | 7.5 | 100 pieces | |
| 098EM12070M | 7550 | 19 | M12 x 70 | Steel | 7.5 | 100 pieces | |
| 098EM12080M | 7550 | 19 | - | Steel | 7.5 | 100 pieces | |
| 098EM12100M | 7550 | 19 | M12 x 100 | Steel | 7.5 | 100 pieces | |
| 098EM12120M | 7550 | 19 | M12 x 120 | Steel | 7.5 | 100 pieces | |
| 098EM16040M | 14200 | 24 | M16 x 40 | Steel | 10.0 | 10 pieces | |
| 098EM16050M | 14200 | 24 | M16 x 50 | Steel | 10.0 | 10 pieces | |
| 098EM16070M | 14200 | 24 | M16 x 70 | Steel | 10.0 | 10 pieces | |
| 098EM16100M | 14200 | 24 | M16 x 100 | Steel | 10.0 | 10 pieces | |
| 098EM16150M | 14200 | 24 | - | Steel | 10.0 | 10 pieces |
Description 098EM08025M
- Description
Threaded Rod for ECO Feet
- Material
Steel
- Specials
Other lengths and sizes on request
- Surface
Zinc plated
- Tip
Mounting pin 098XEE included
(ECO feet are provided factory assembled)
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Product Feature | ESD |
| Profile Form | T-slot Profiles |
| Application Area | Machinery & Plant Engineering |
| Pack Quantity | 100 pieces |
| Model | Steel |
| Screw Joint | Swiveling range ±5° |

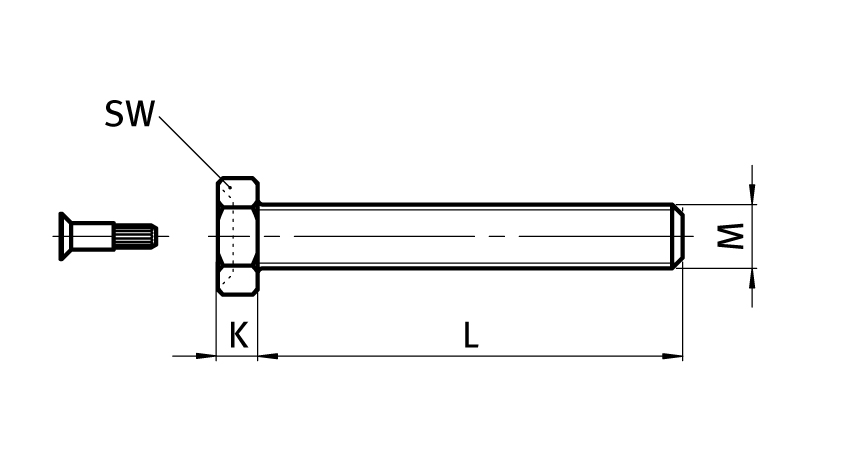

Drawing
From the FATH catalogue (EC-EN, p. 71)
