Threaded Rod ST UNC for Pivot Feet
Part #: 098AU1-4M · 19 variants

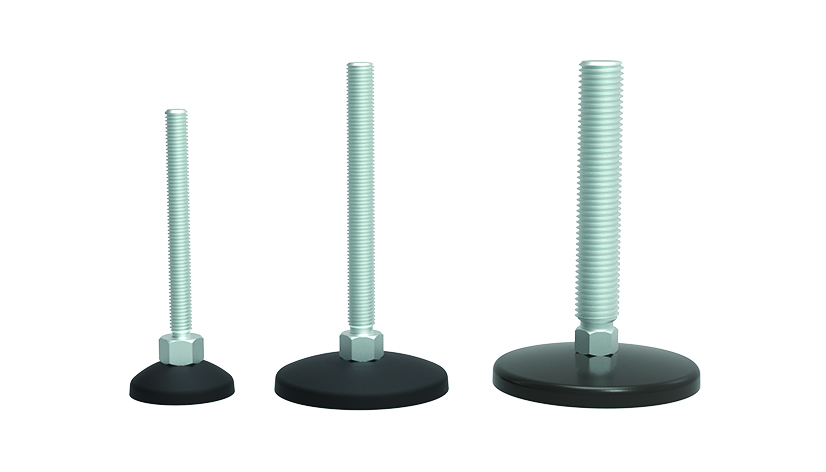

Threaded rod for pivot leveling feet
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 342 g
- ECLASS
- 23010705
- Category
- Threaded Rods, Pivot Feet
Versions
Select a version — the description and files below follow your selection.
| Part # | Fmax (N) | SW (mm) | Material | UNC x L (in) | Add 1 pc to enquiry |
|---|---|---|---|---|---|
| 098AU1-4M✓ Selected | 35400 | 22 (7/8") | Steel | 1-8 UNC x 4" | |
| 098AU1-6M | 35400 | 22 (7/8") | Steel | 1-8 UNC x 6" | |
| 098AU1-8M | 35400 | 22 (7/8") | Steel | 1-8 UNC x 8" | |
| 098AU1/2-3M | 7550 | 22 (7/8") | Steel | - | |
| 098AU1/2-4M | 7550 | 22 (7/8") | Steel | - | |
| 098AU1/2-5M | 7550 | 22 (7/8") | Steel | - | |
| 098AU1/2-6M | 7550 | 22 (7/8") | Steel | - | |
| 098AU11/4-4M | 56600 | 22 (7/8") | Steel | 1 1/4-7 UNC x 4" | |
| 098AU11/4-6M | 56600 | 22 (7/8") | Steel | 1 1/4-7 UNC x 6" | |
| 098AU11/4-8M | 56600 | 22 (7/8") | Steel | 1 1/4-7 UNC x 8" | |
| 098AU3/4-4M | 23800 | 22 (7/8") | Steel | 3/4-10 UNC x 4" | |
| 098AU3/4-5M | 23800 | 22 (7/8") | Steel | 3/4-10 UNC x 5" | |
| 098AU3/4-6M | 23800 | 22 (7/8") | Steel | 3/4-10 UNC x 6" | |
| 098AU3/4-8M | 23800 | 22 (7/8") | Steel | 3/4-10 UNC x 8" | |
| 098AU5/8-3M | 14200 | 22 (7/8") | Steel | - | |
| 098AU5/8-4M | 14200 | 22 (7/8") | Steel | - | |
| 098AU5/8-5M | 14200 | 22 (7/8") | Steel | - | |
| 098AU5/8-6M | 14200 | 22 (7/8") | Steel | - | |
| 098AU5/8-8M | 14200 | 22 (7/8") | Steel | - |
Description 098AU1-4M
- Description
Threaded rod for pivot leveling feet
- Material
Steel
- Specials
Other lengths and sizes on request
- Surface
Zinc plated
- Tip

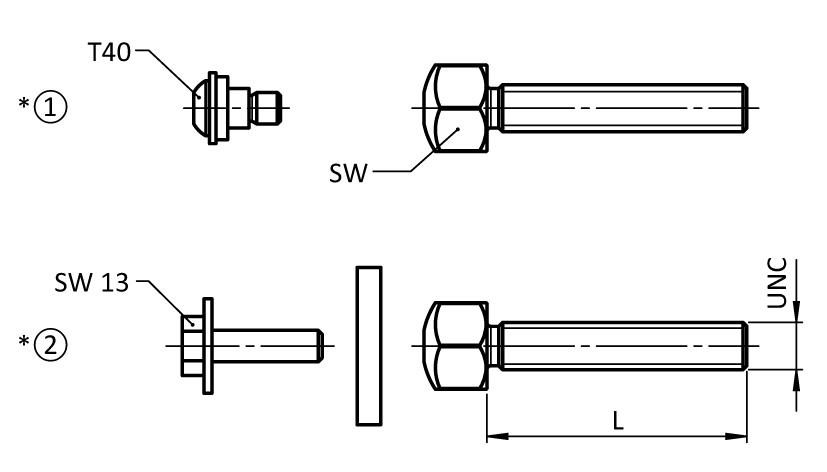

*1. For pivot feet: Assembly set 098XAMS03 included
*2. For heavy-duty pivot feet: Assembly set 098XAUM included
Properties
| Product Feature | ESD, Fractional |
|---|---|
| Profile Form | T-slot Profiles |
| Application Area | Machinery & Plant Engineering |
| Pack Quantity | 10 pieces |
| Model | Steel |
| Screw Joint | Swiveling range ±4° |
