FATH
Threaded Sleeve D28L (Set)
Part #: 099RV28AS01 · 2 variants
To fix leveling feet or swivel casters to the front of tubular frame profiles D28L with Ø 28 mm outer diameter
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 20 Stück
- Weight
- 20 g
- ECLASS
- 23111190
- Category
- Threaded Sleeves D28
Versions
Select a version — the description and files below follow your selection.
| Part # | M | Set | Add 1 pc to enquiry |
|---|---|---|---|
| 099RV28AS01✓ Selected | M12 | Set 2 | |
| 099RV28AS02 | M8 | Set 1 |
Description 099RV28AS01
- Color
Sleeve: Black
- Description
To fix leveling feet or swivel casters to the front of tubular frame profiles D28L with Ø 28 mm outer diameter
- Material
Sleeve: Plastic PA, carbon fiber reinforced
Long nut: Steel
- Set 1
1 sleeve, two-part
1 long nut M8
- Set 2
1 sleeve, two-part
1 long nut M12
- Surface
Long nut: Zinc plated
Properties
| Profile Type | Profile Type B |
|---|---|
| Modular Dimension | Modular Dimension D28 |
| Profile Form | Round Tubular Profiles |
| Pack Quantity | 20 Stück |
| Model | For tubular frame profiles |

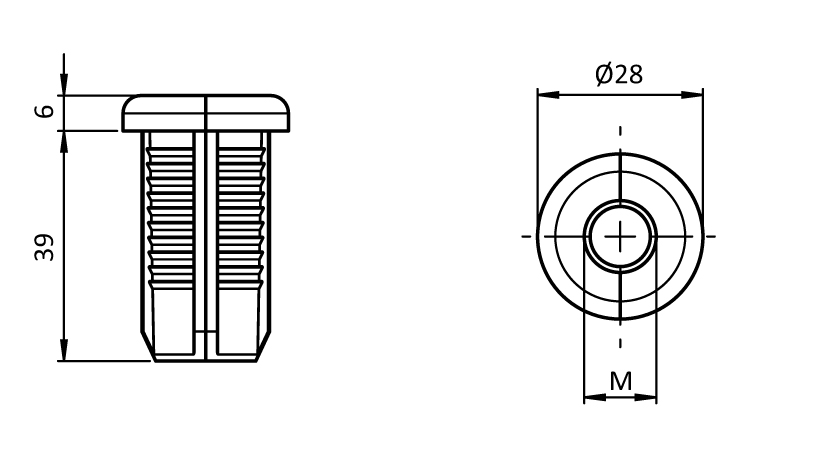

Drawing
From the FATH catalogue (EC-EN, p. 1044)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
